Auxiliary Air Valve (Idle Speed): Testing and Inspection

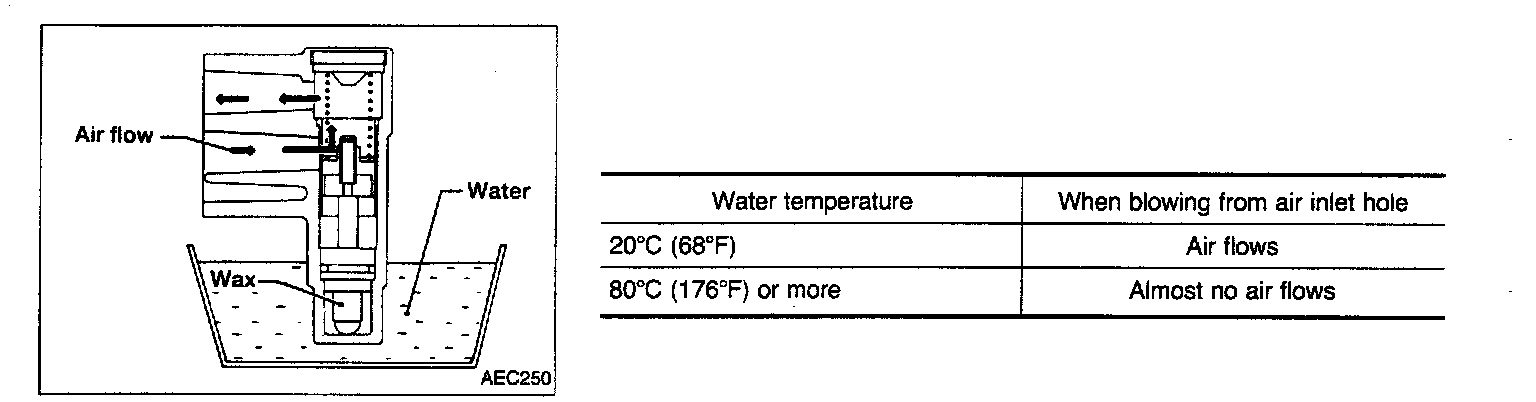

(IAC-Valve)- Air Regulator Inspection:
-
Remove the Air Regulator from the engine.
-
Immerse it in hot or cold water and check air flow.
-
Replace if operation differs.
