Cooling Fan Control System

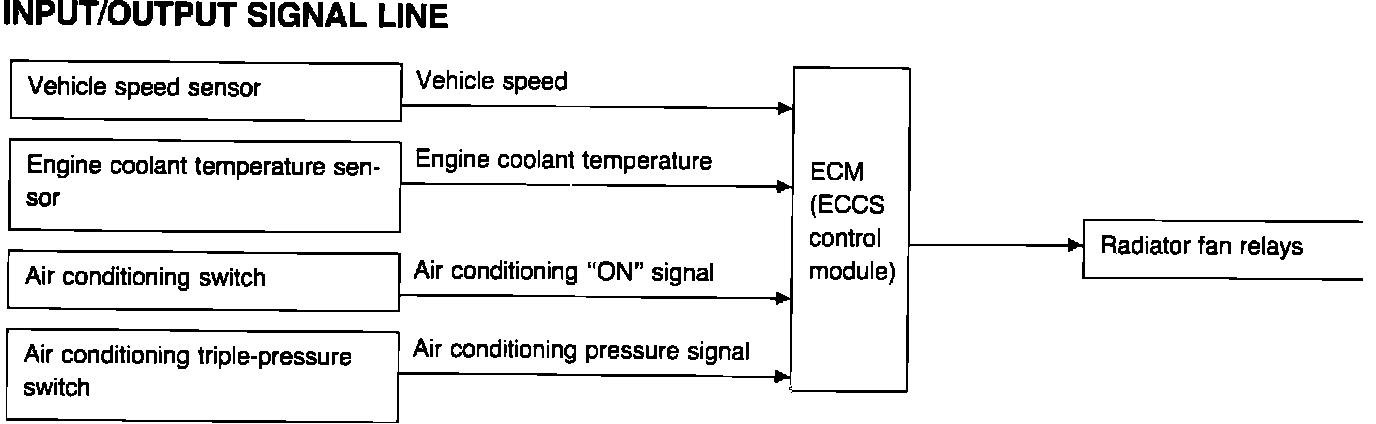

Radiator Fan Control Inputs And Outputs:

The Engine Control Module (ECM) controls the radiator fan corresponding to the following conditions.
1. Vehicle speed
2. Engine coolant temperature
3. Air conditioning discharge side pressure
4. Air conditioning ON signal

The control system has a 3-step control [HIGH/LOW/OFF].
