Idle Speed/Throttle Actuator - Electronic
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

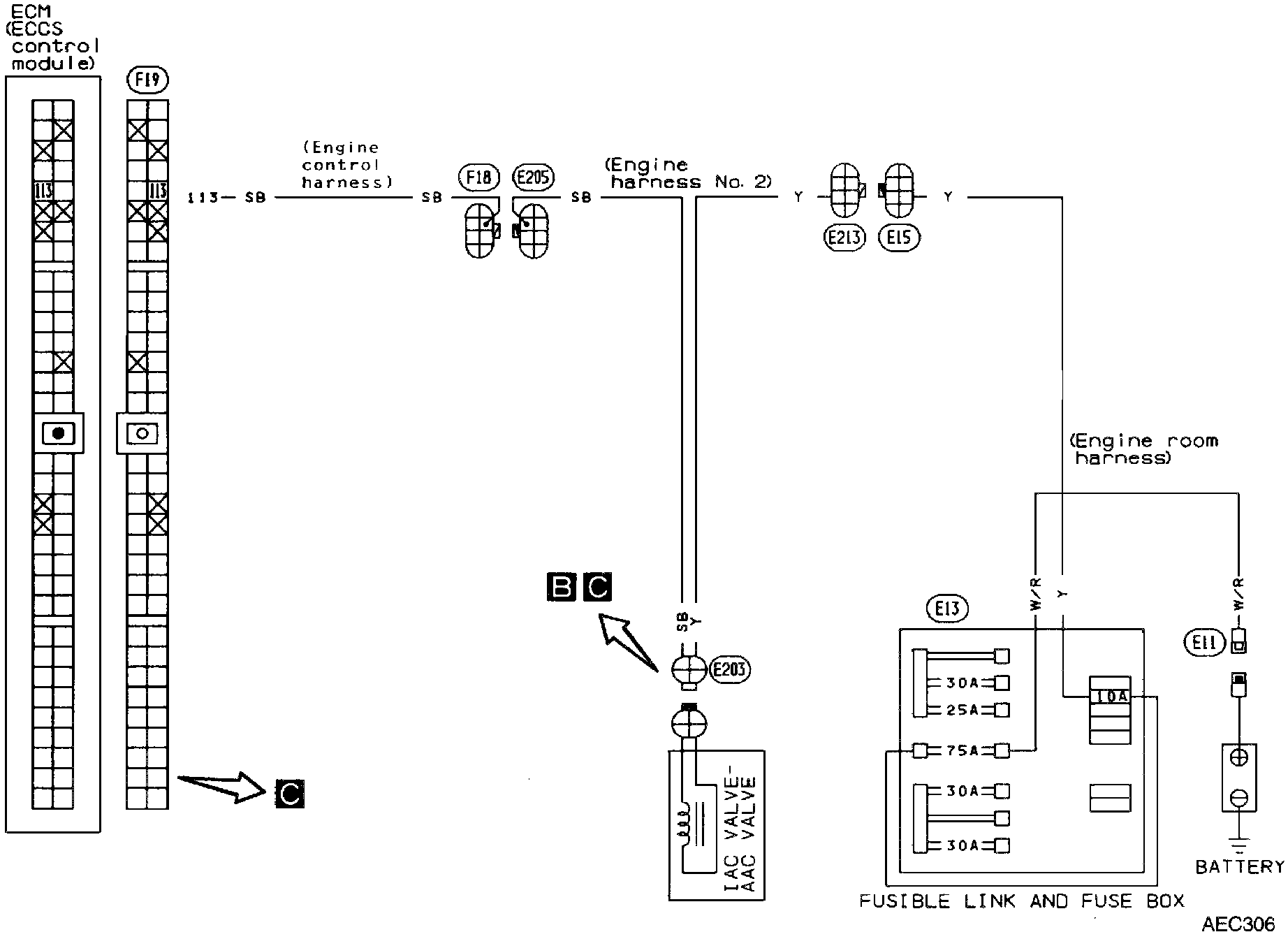

IAC Valve-AAC Valve:
