Wiring Diagram

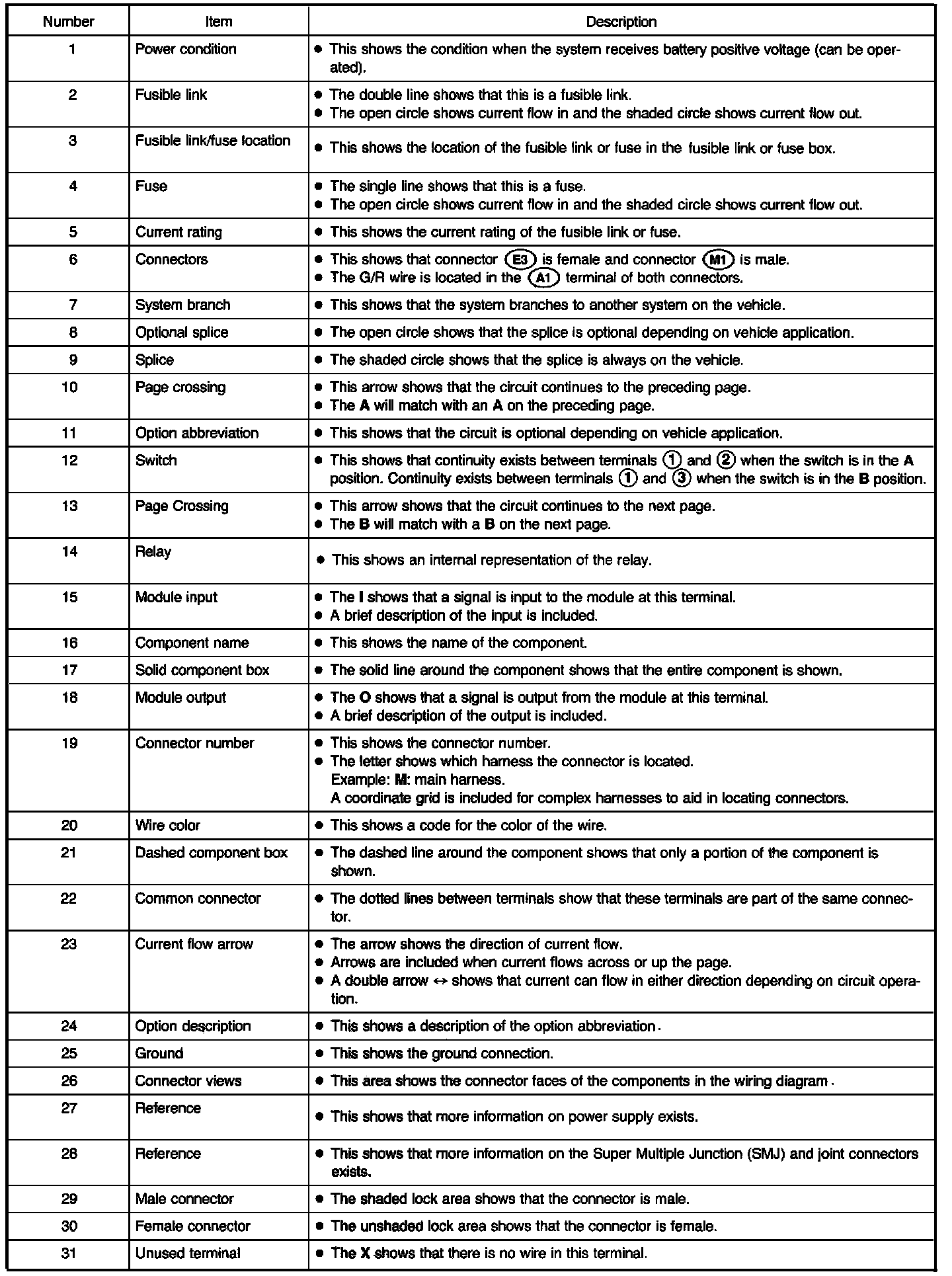

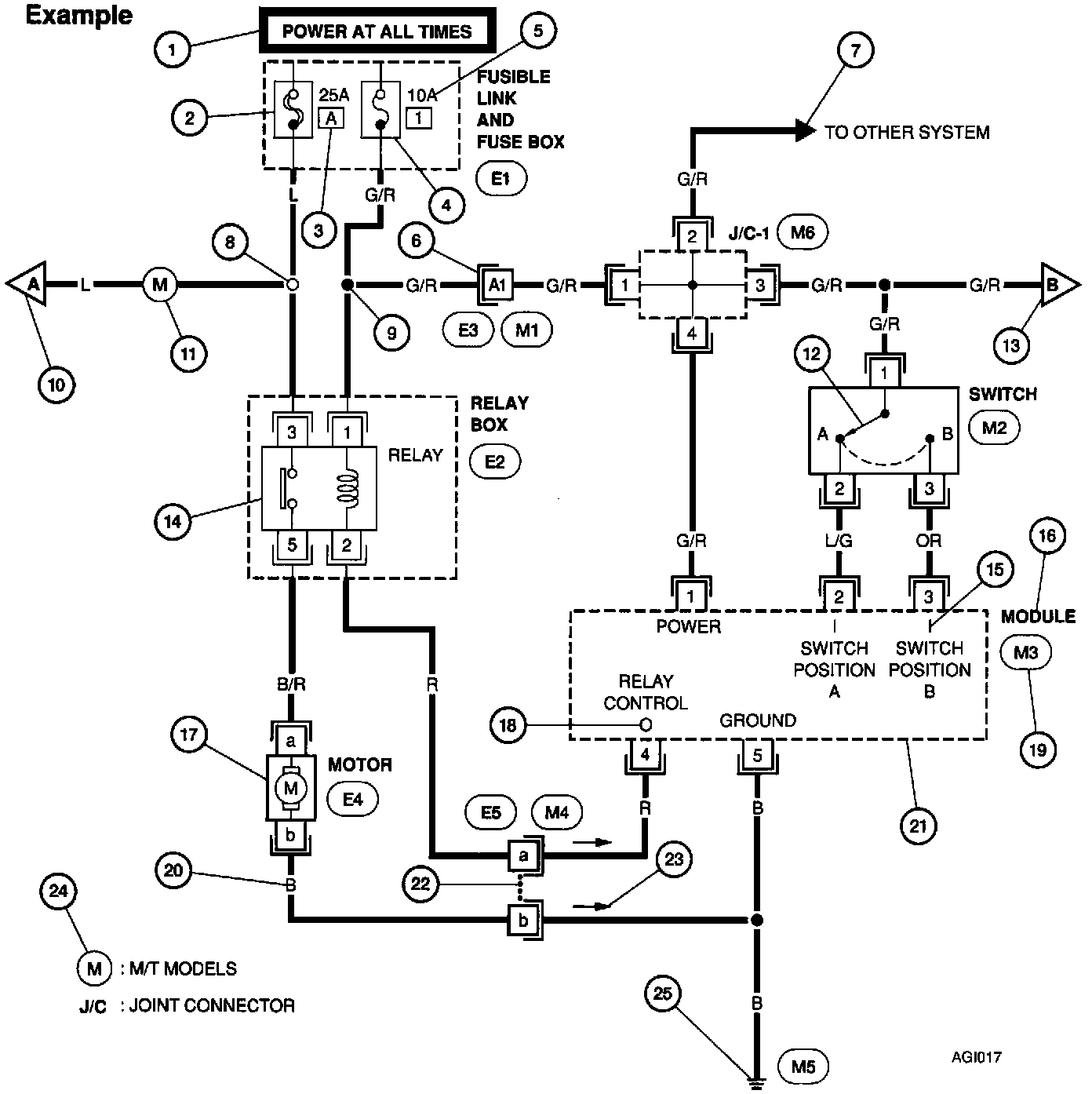

How To Read Wiring Diagrams:





Symbols used in wiring diagram are shown above.

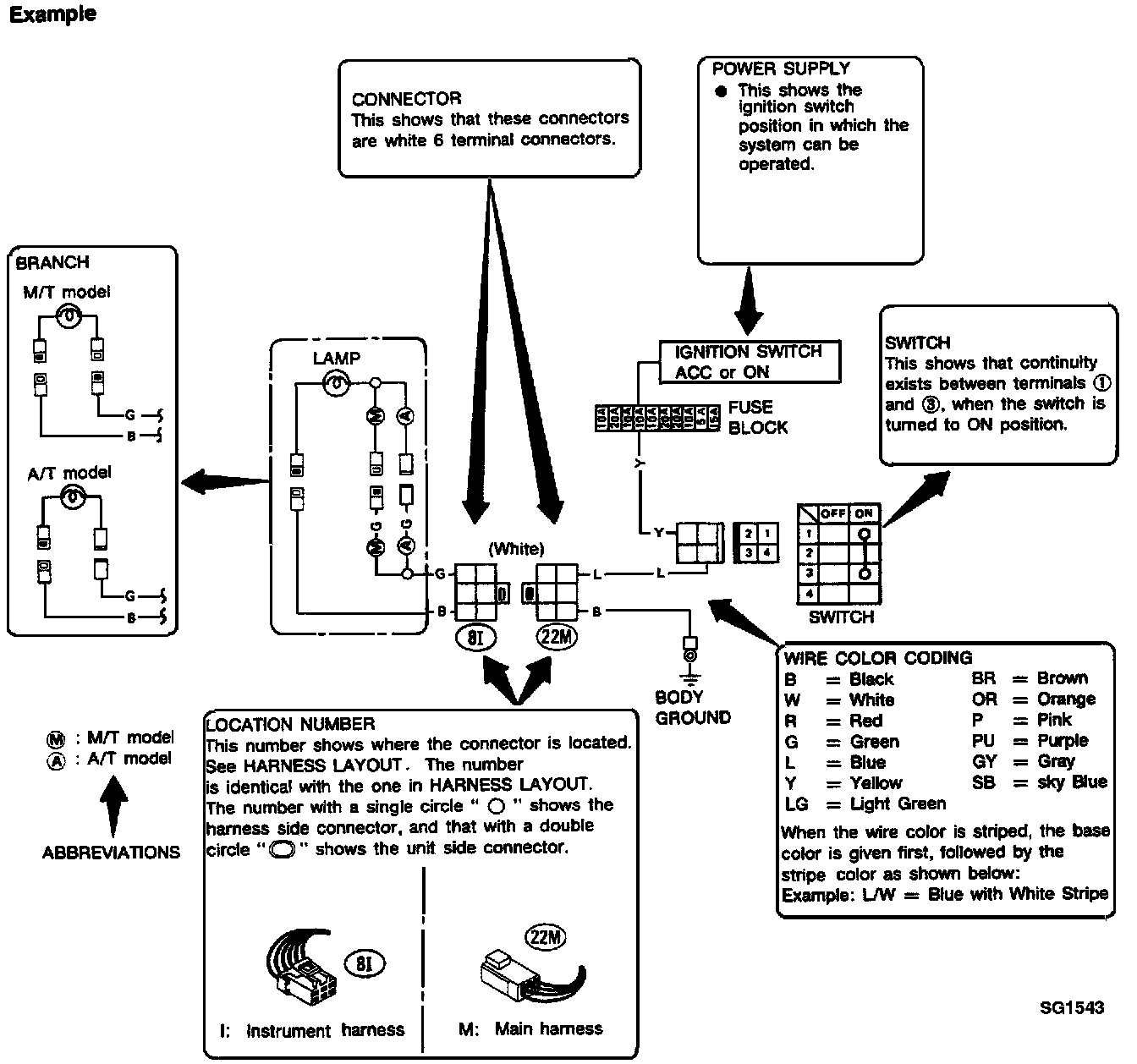

How To Read Wiring Diagrams:

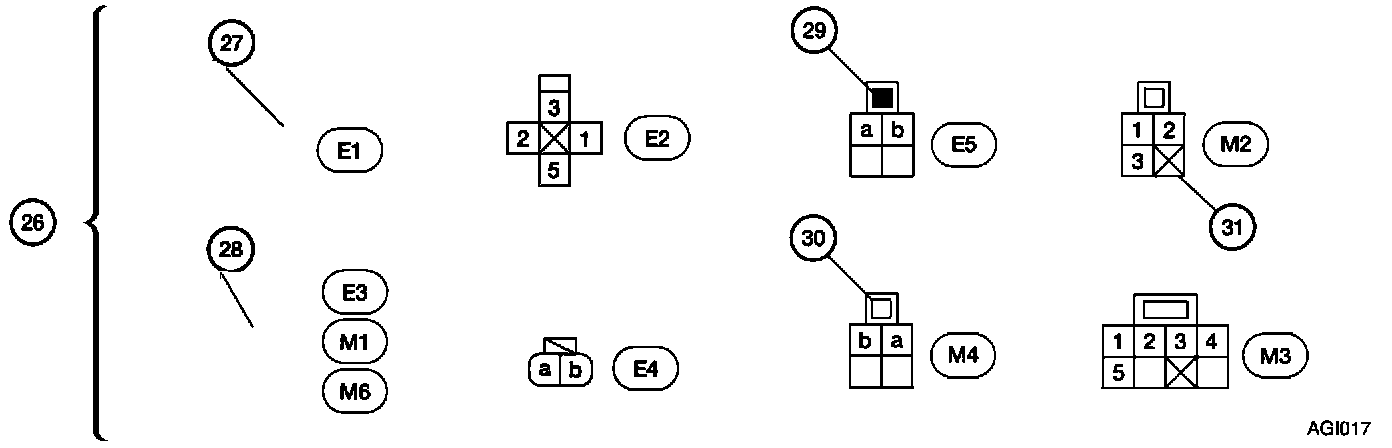

How To Read Wiring Diagrams:
