Auxiliary Air Control (AAC) Valve Circuit

IAC Valve-AAC Valve Circuit Diagnostic Chart:




IAC Valve-AAC Valve Circuit Diagnostic Chart:

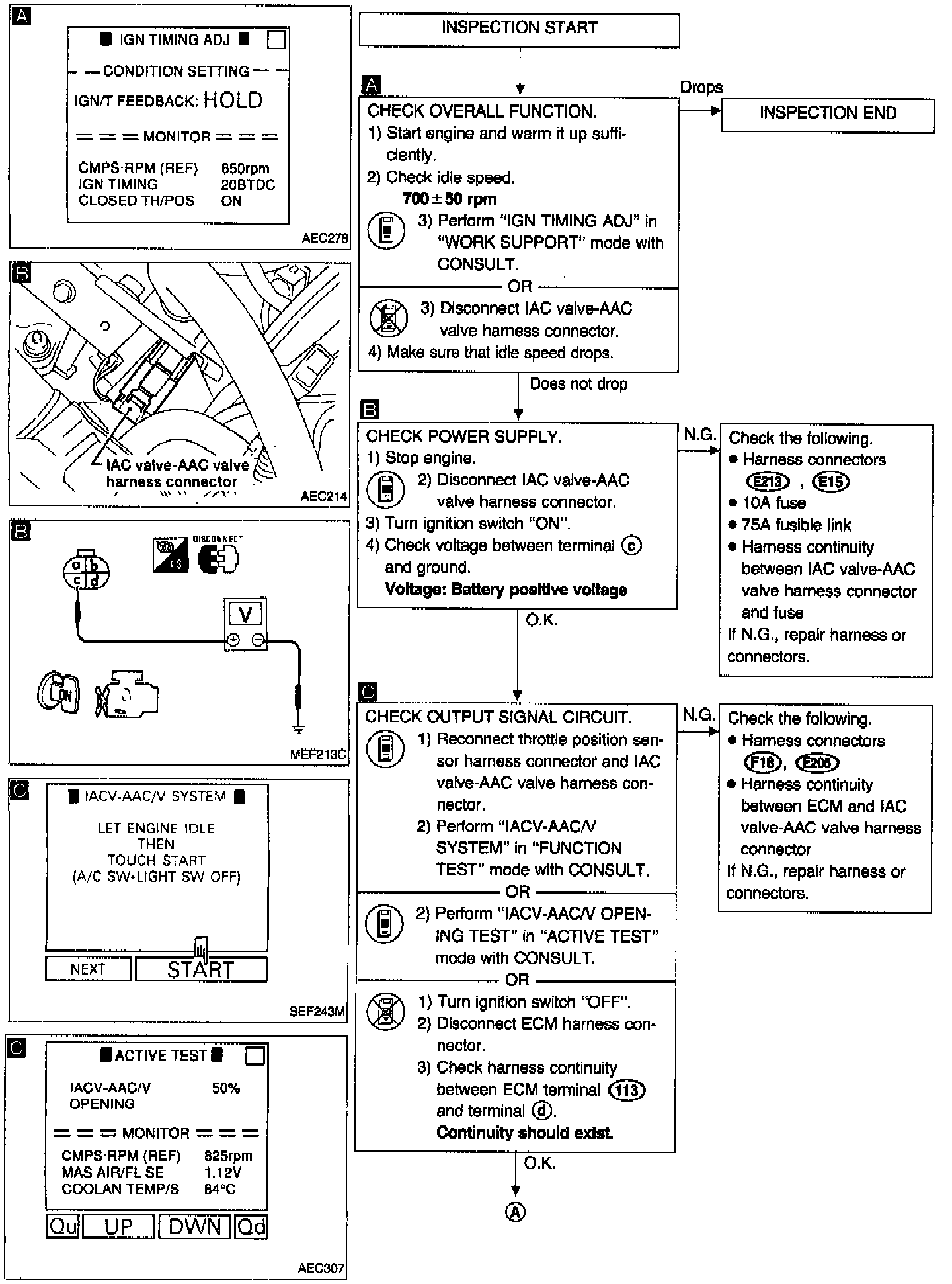

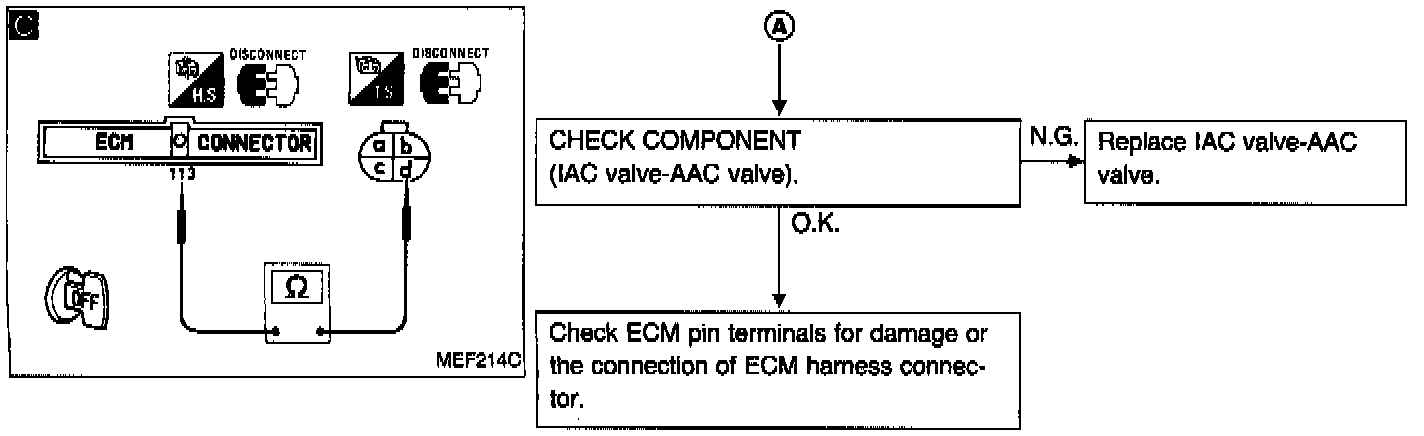

DIAGNOSTIC CHART

IAC Valve-AAC Valve Circuit:

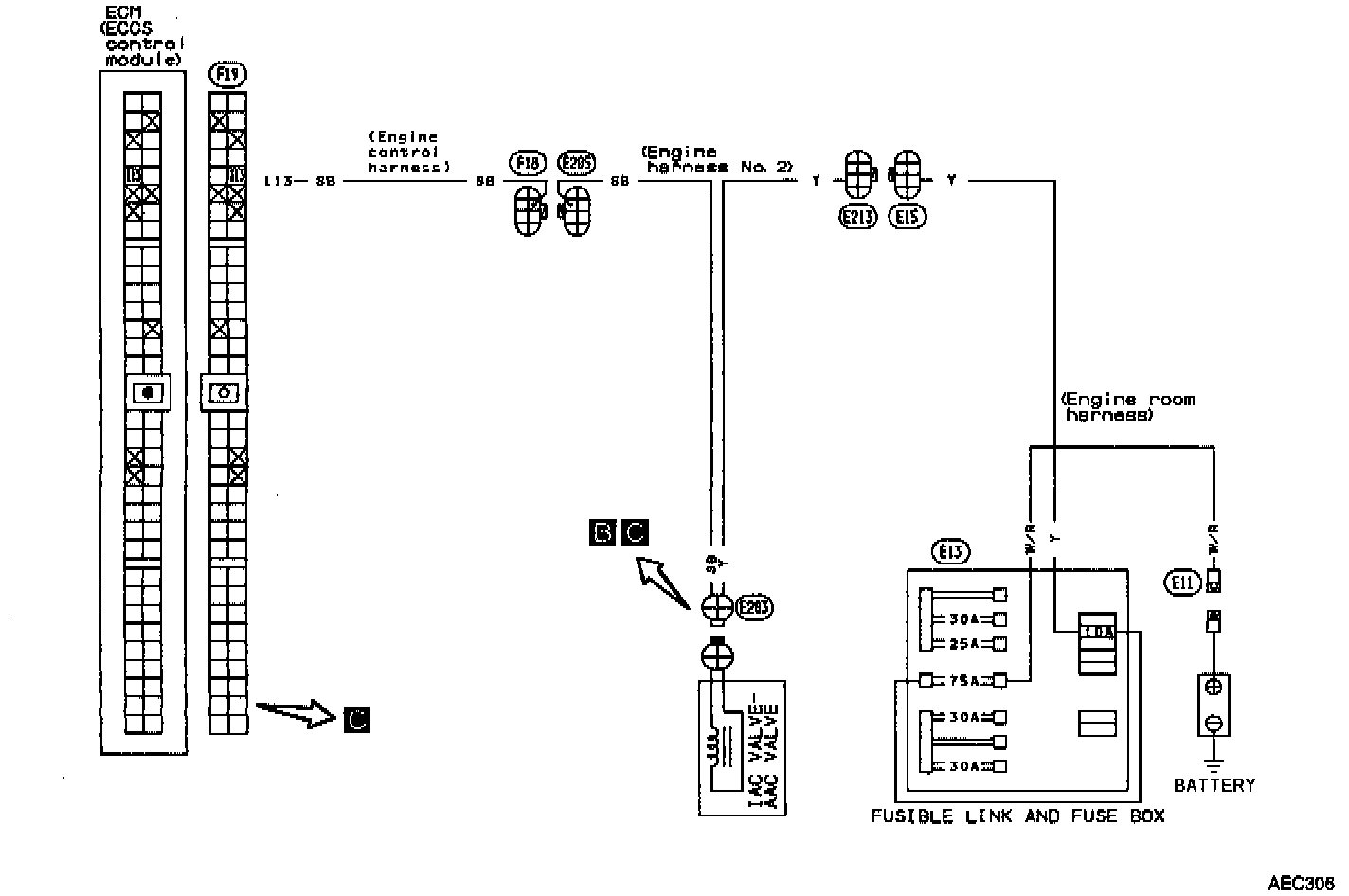

CIRCUIT DIAGRAM

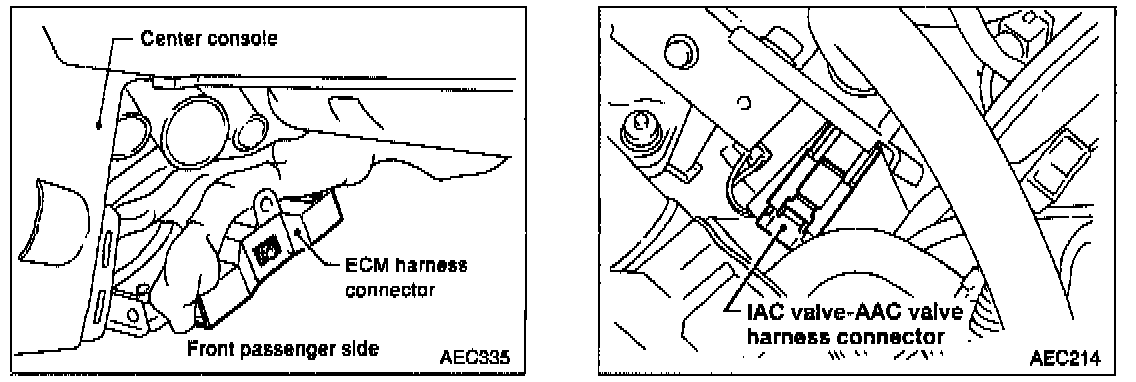

Harness Layout:





HARNESS LAYOUT
