Condenser Fan Control Circuit

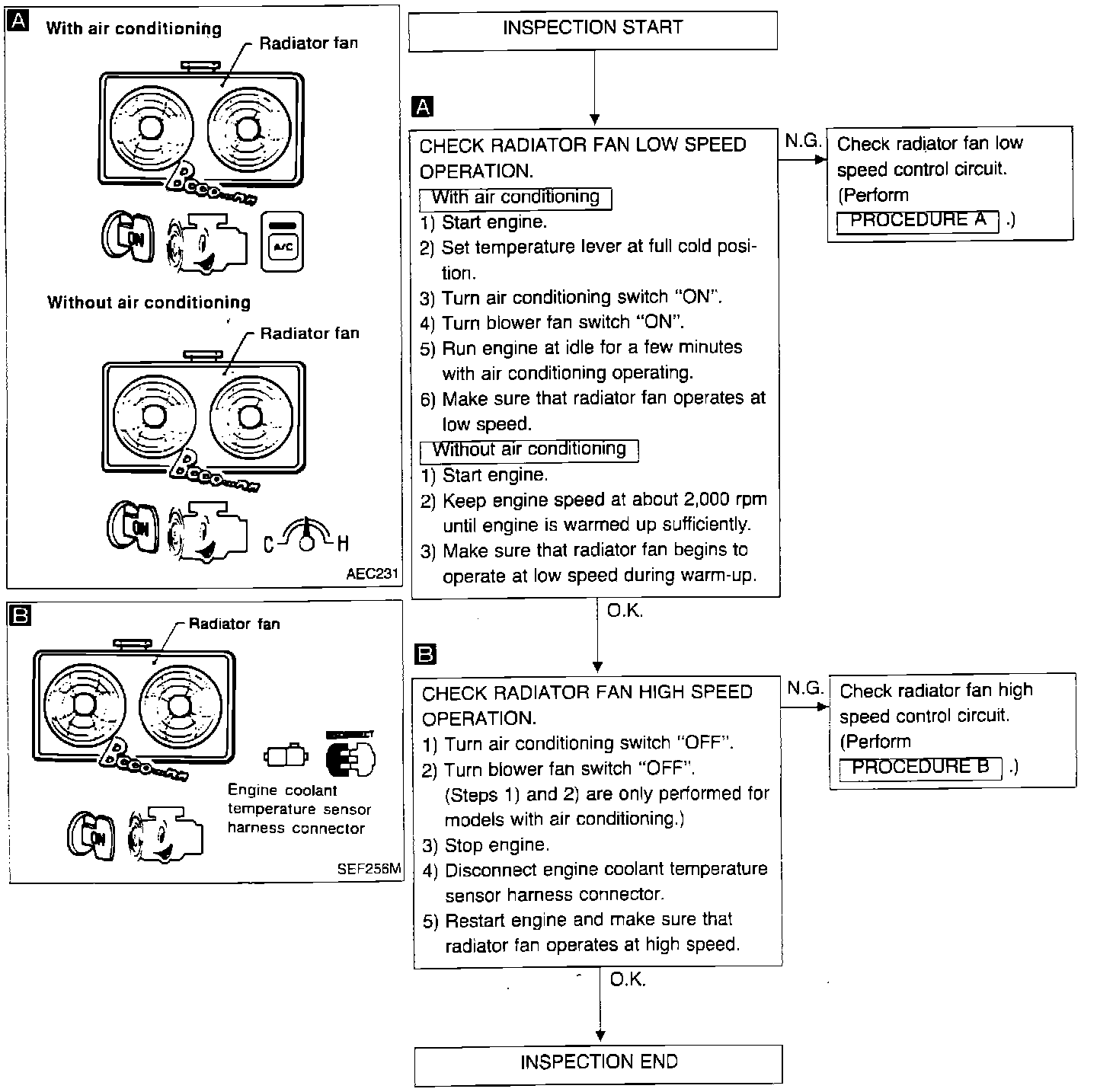

Radiator Fan Control Diagnostic Chart:

DIAGNOSTIC CHART IMAGE

Radiator Fan Control Diagnostic Chart:

Radiator Fan Control Diagnostic Chart:

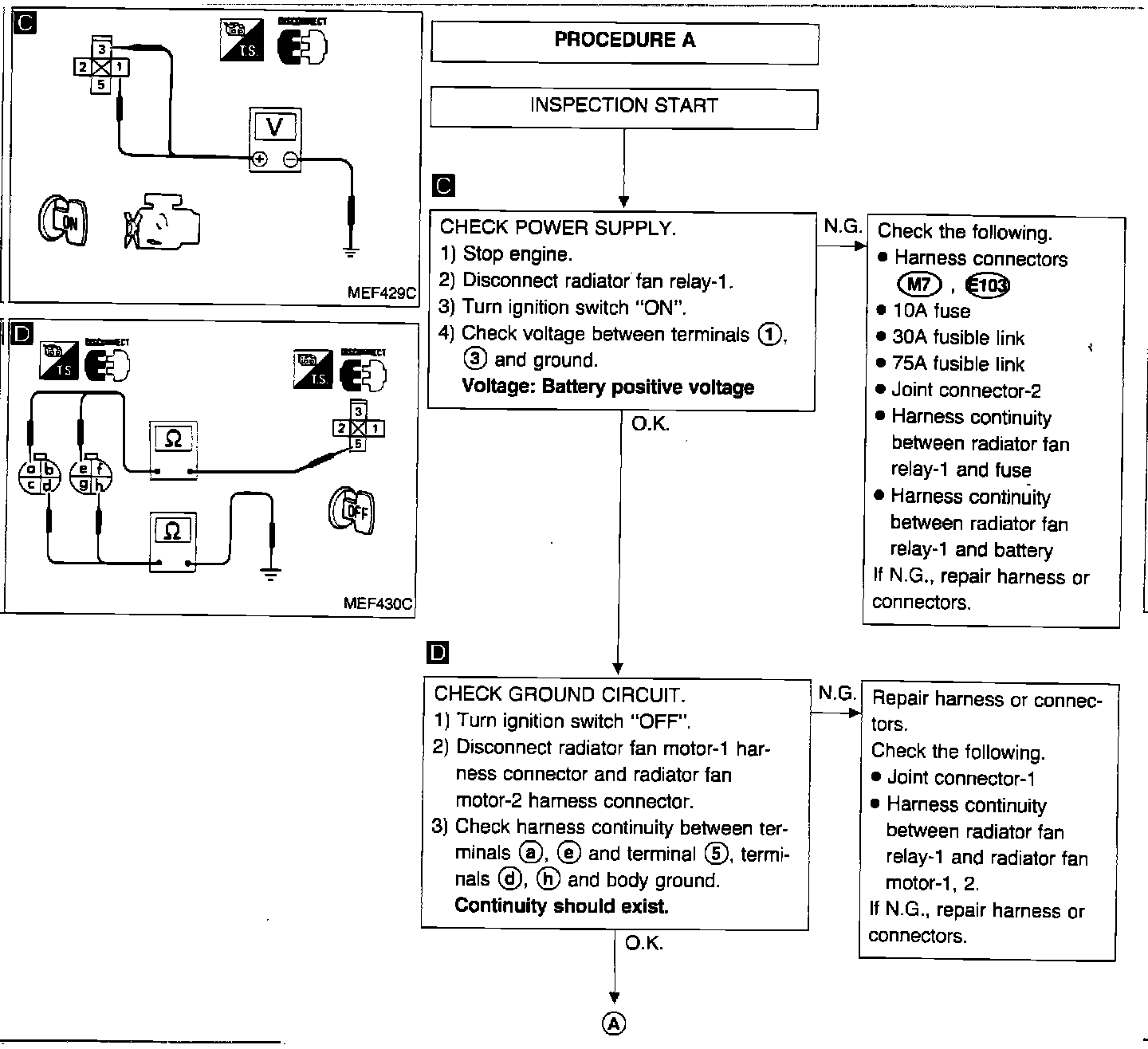

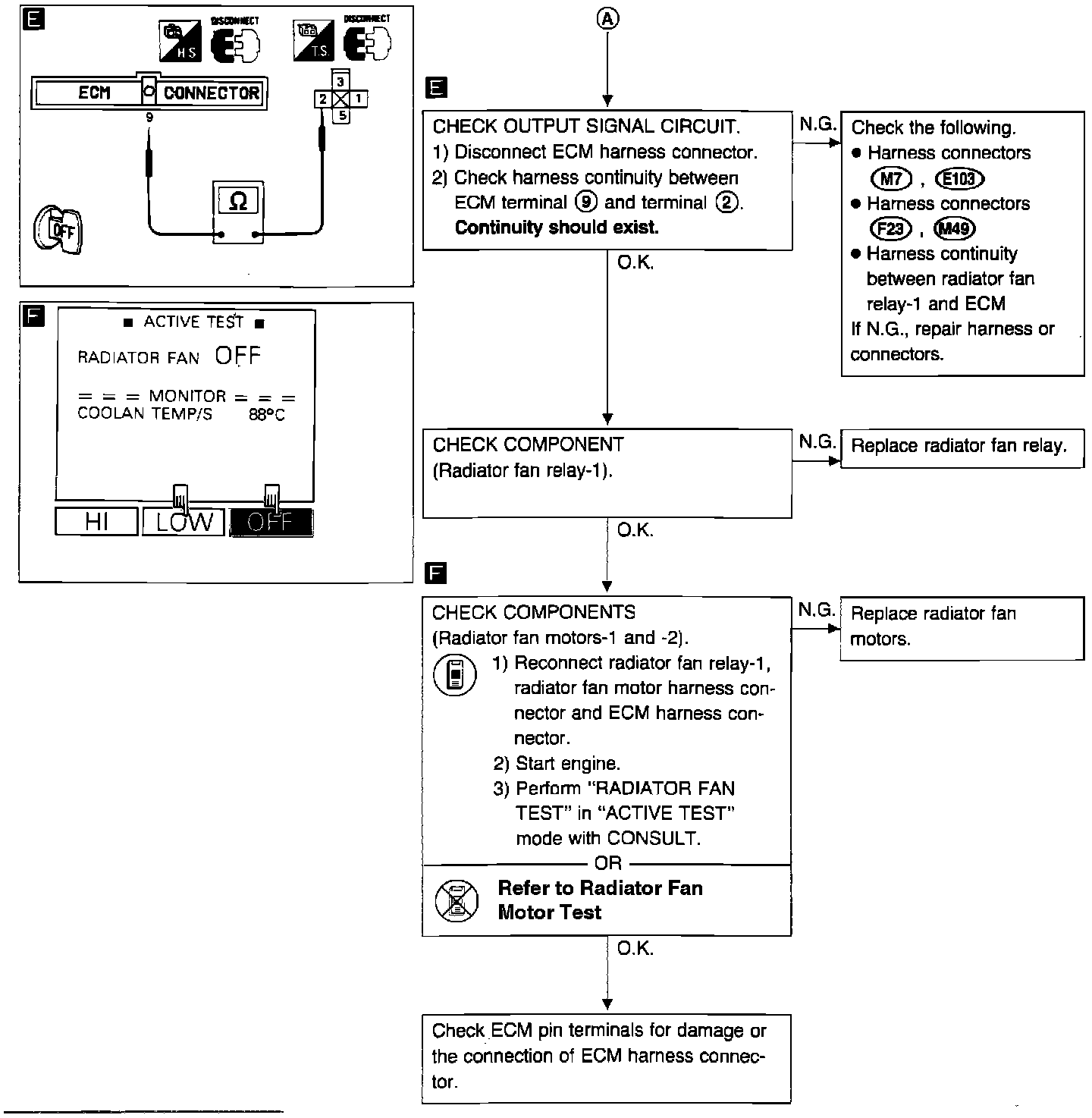

PROCEDURE "A" IMAGE

Radiator Fan Control Diagnostic Chart:

Radiator Fan Control Diagnostic Chart:

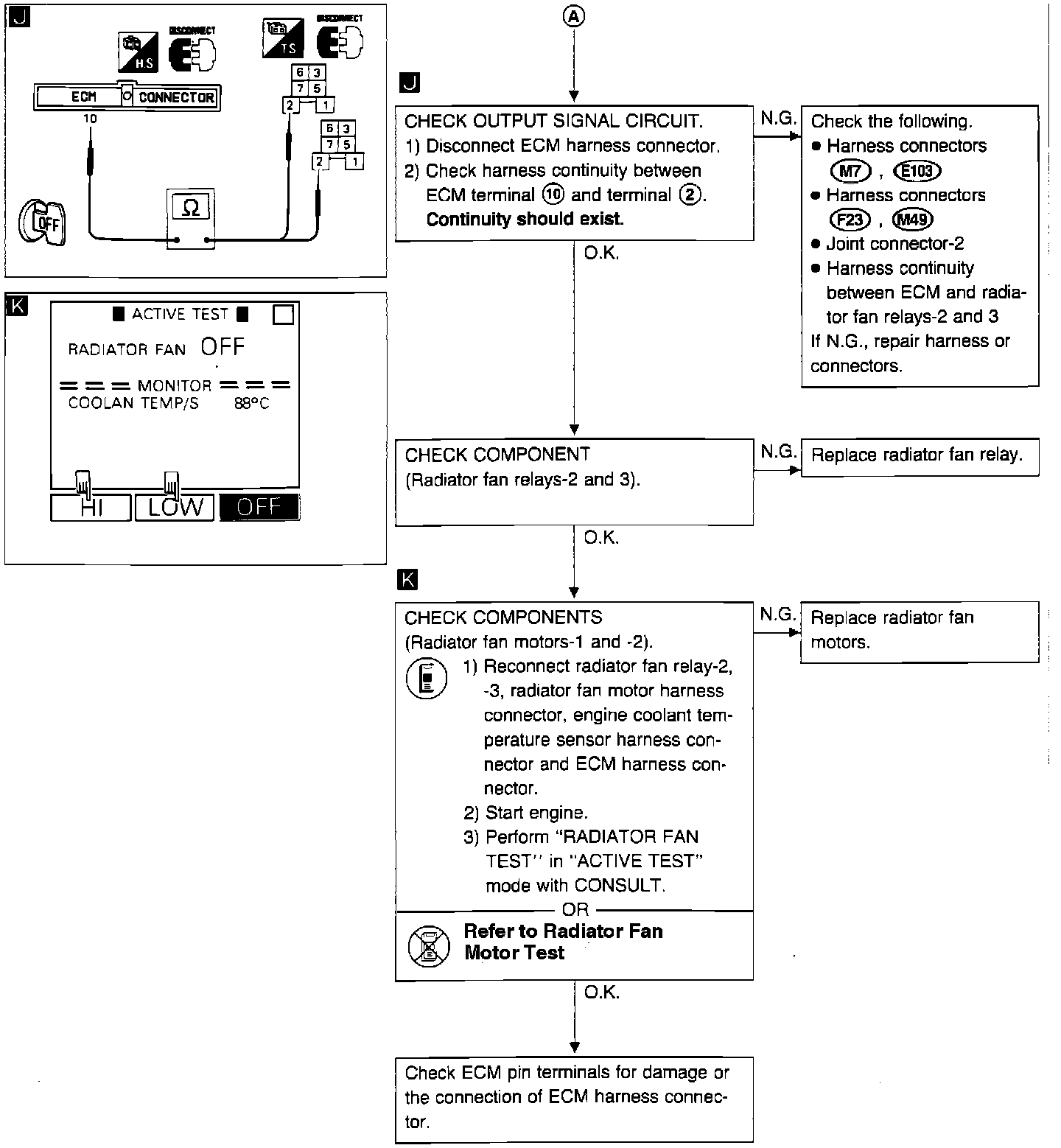

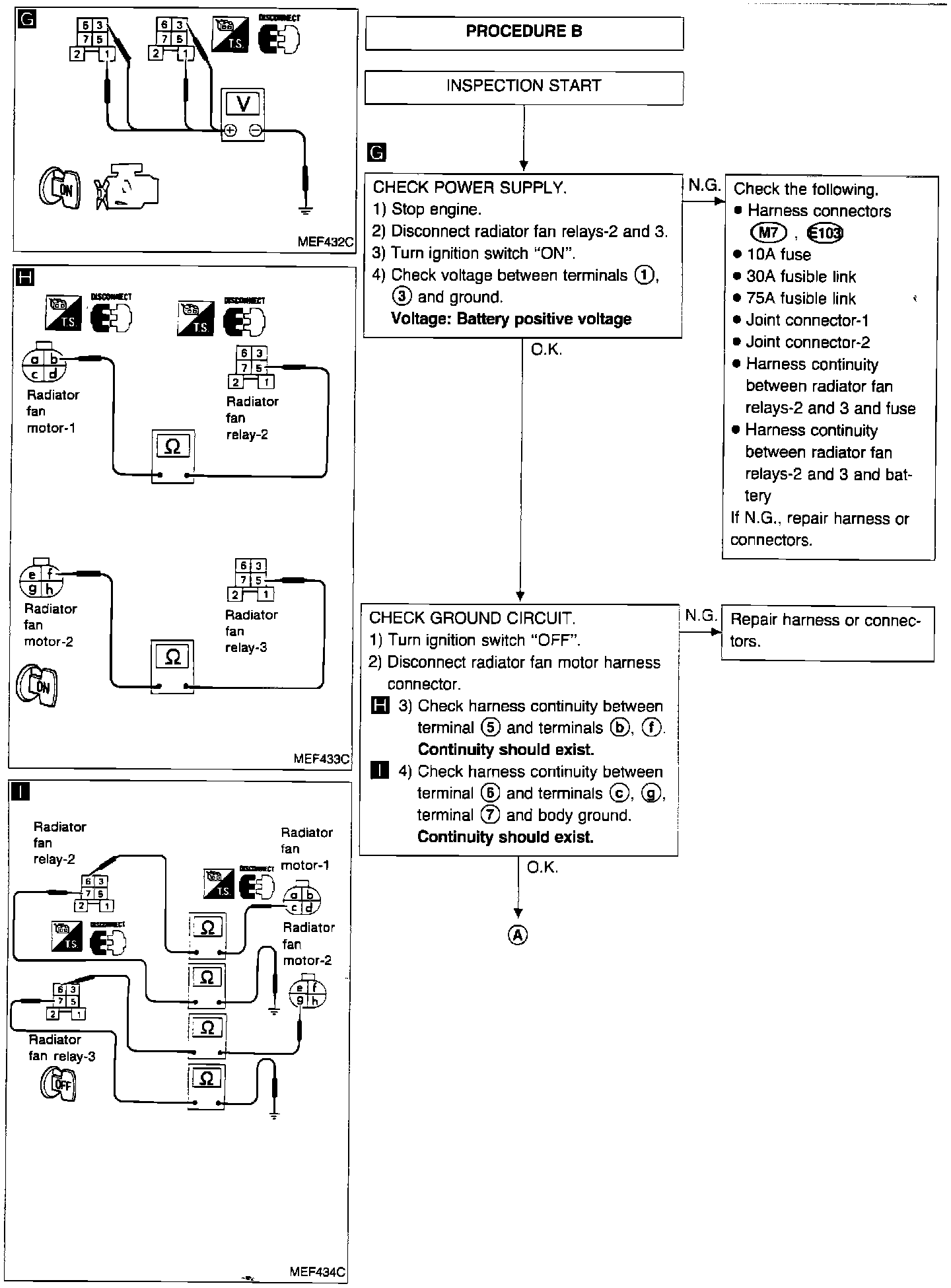

PROCEDURE "B" IMAGE

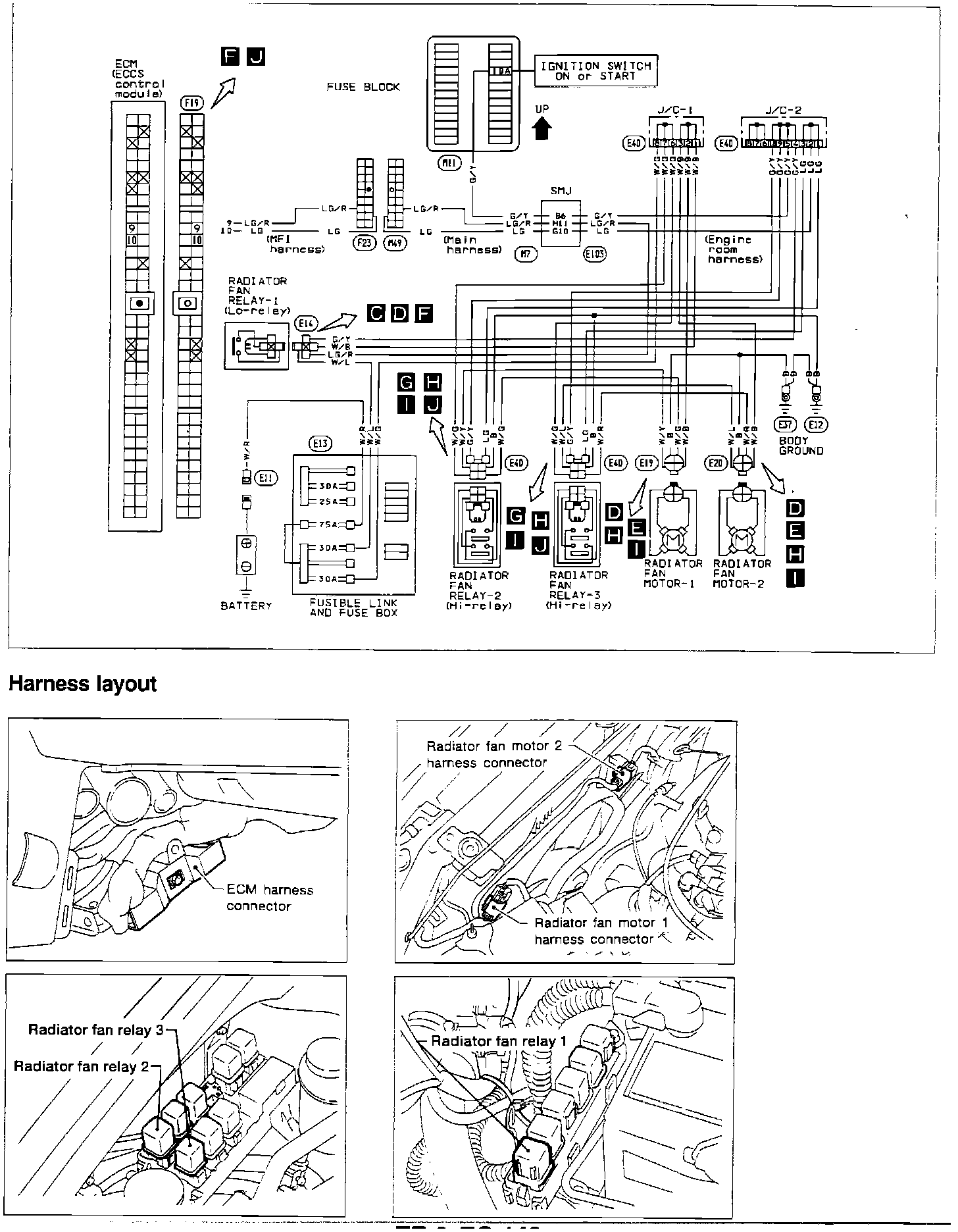

Fig. 1 Wiring Circuit:

CIRCUIT DIAGRAM IMAGE

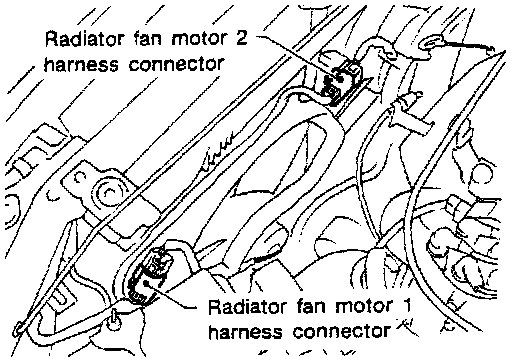

Radiator Fan Motor Connector Location:

CONNECTOR LOCATION IMAGE

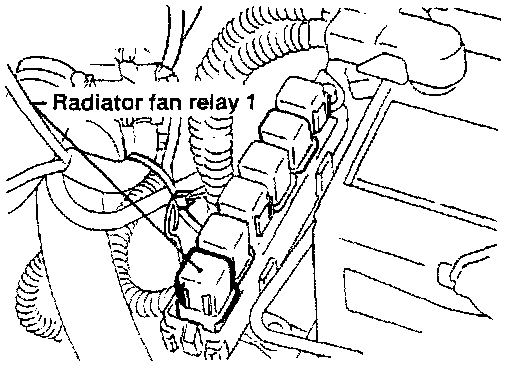

Radiator Fan Relay 1 Location:

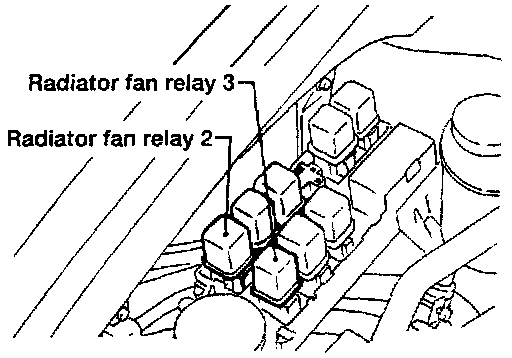

Radiator Fan Relays 2 And 3 Location:

RELAY LOCATION IMAGE
