Fuel Injector

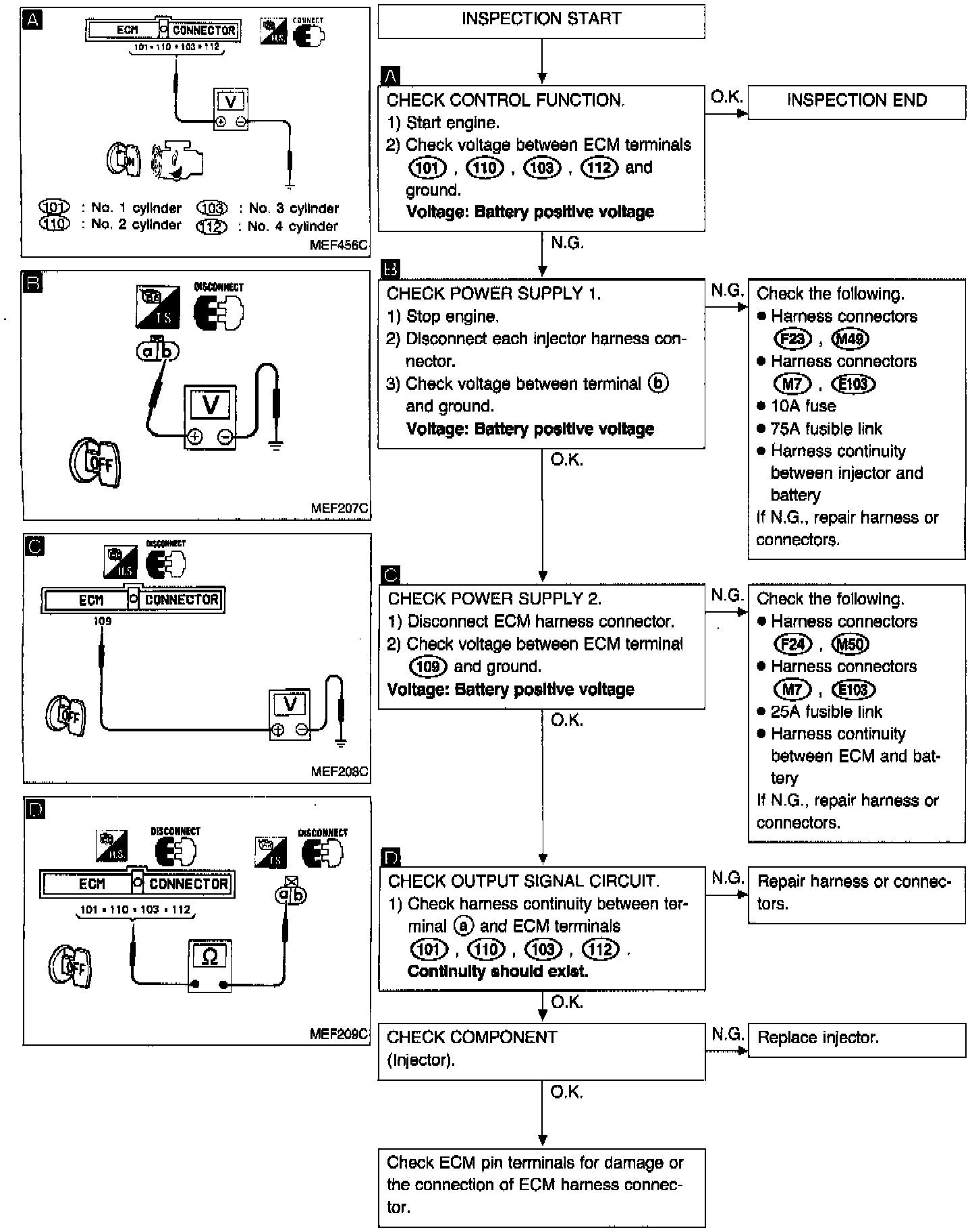

Fuel Injector Circuit Diagnostic Chart:





DIAGNOSTIC CHART

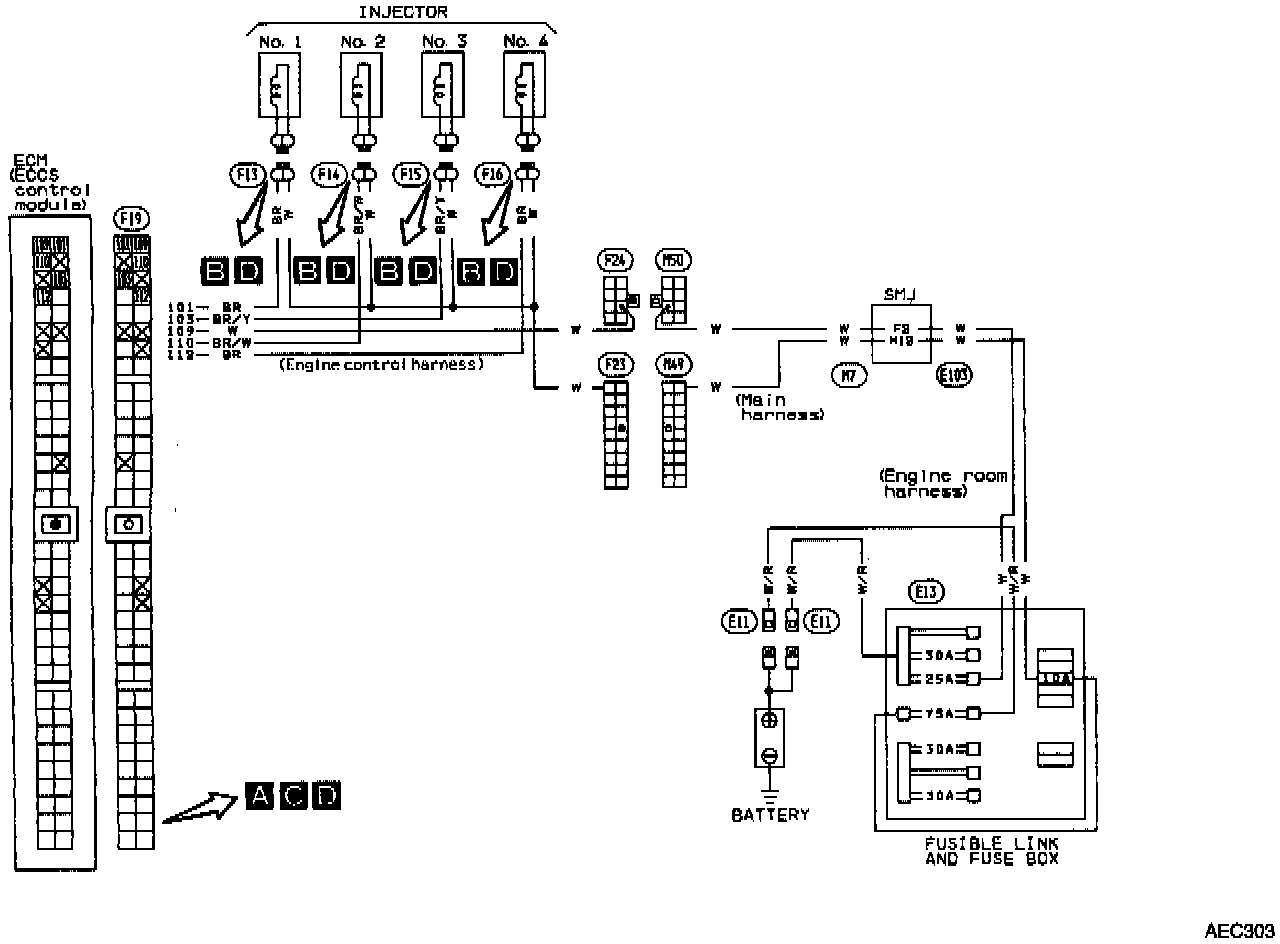

Fuel Injector Circuit:





CIRCUIT DIAGRAM

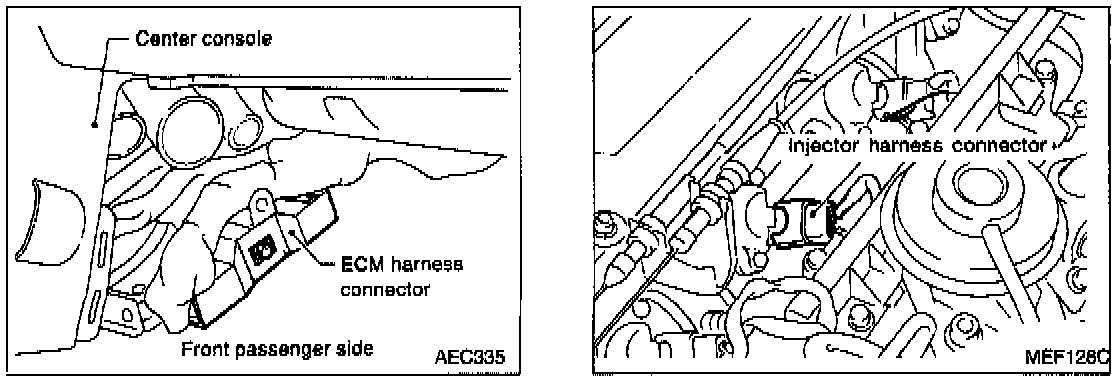

Harness Layout:





HARNESS LAYOUT
