A/T Only

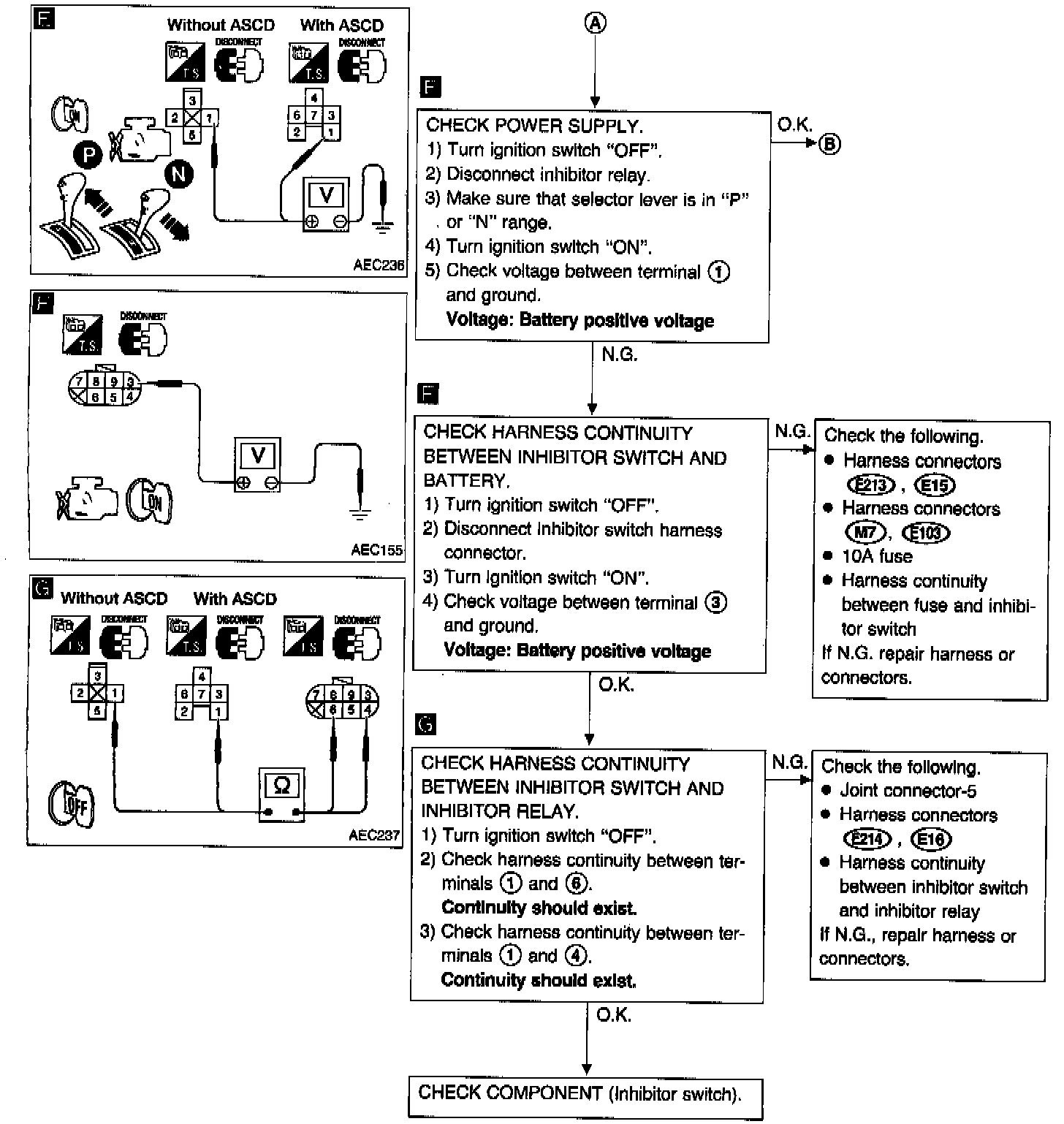

Inhibitor Switch Circuit Diagnostic Chart:

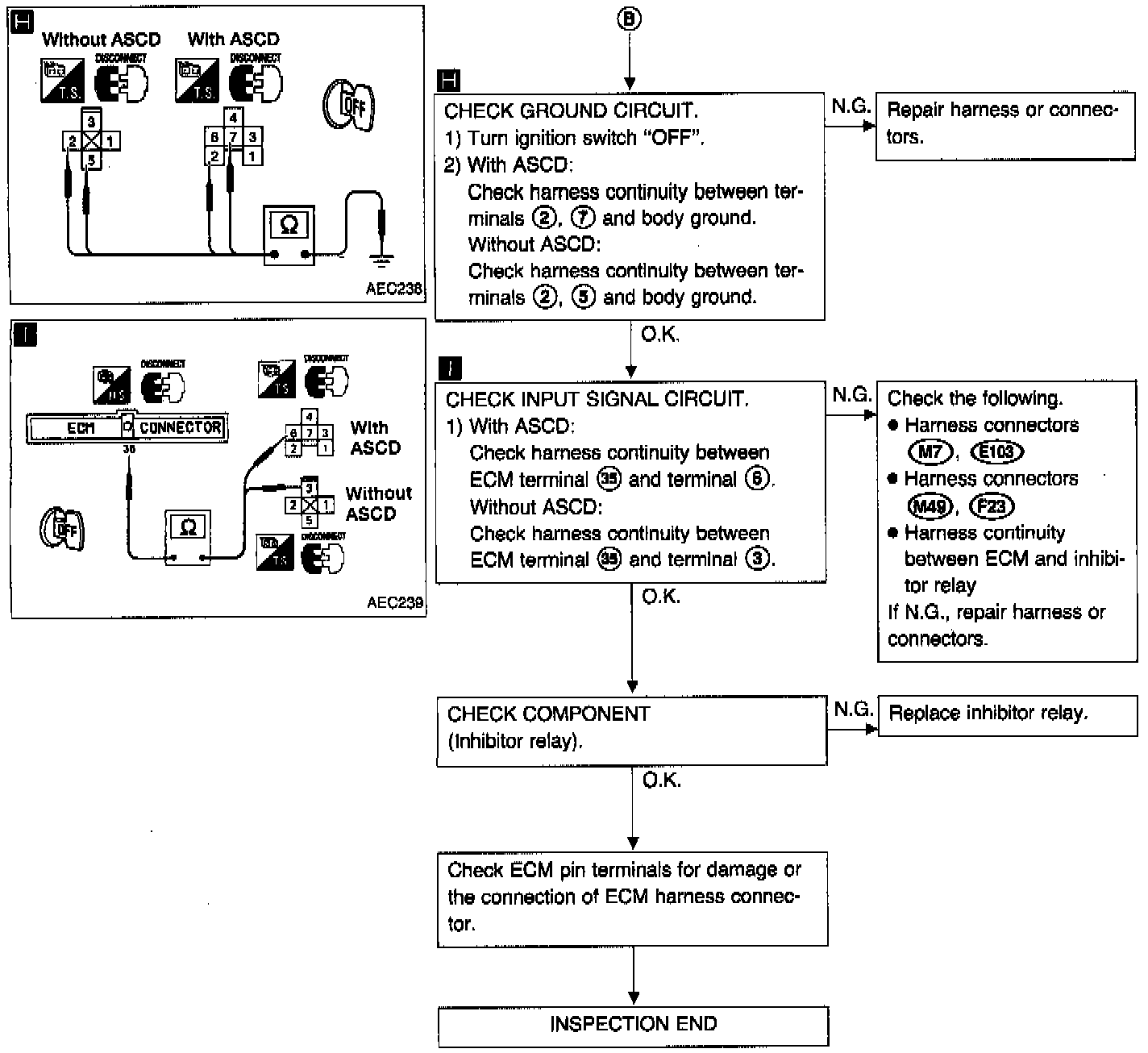

Inhibitor Switch Circuit Diagnostic Chart:

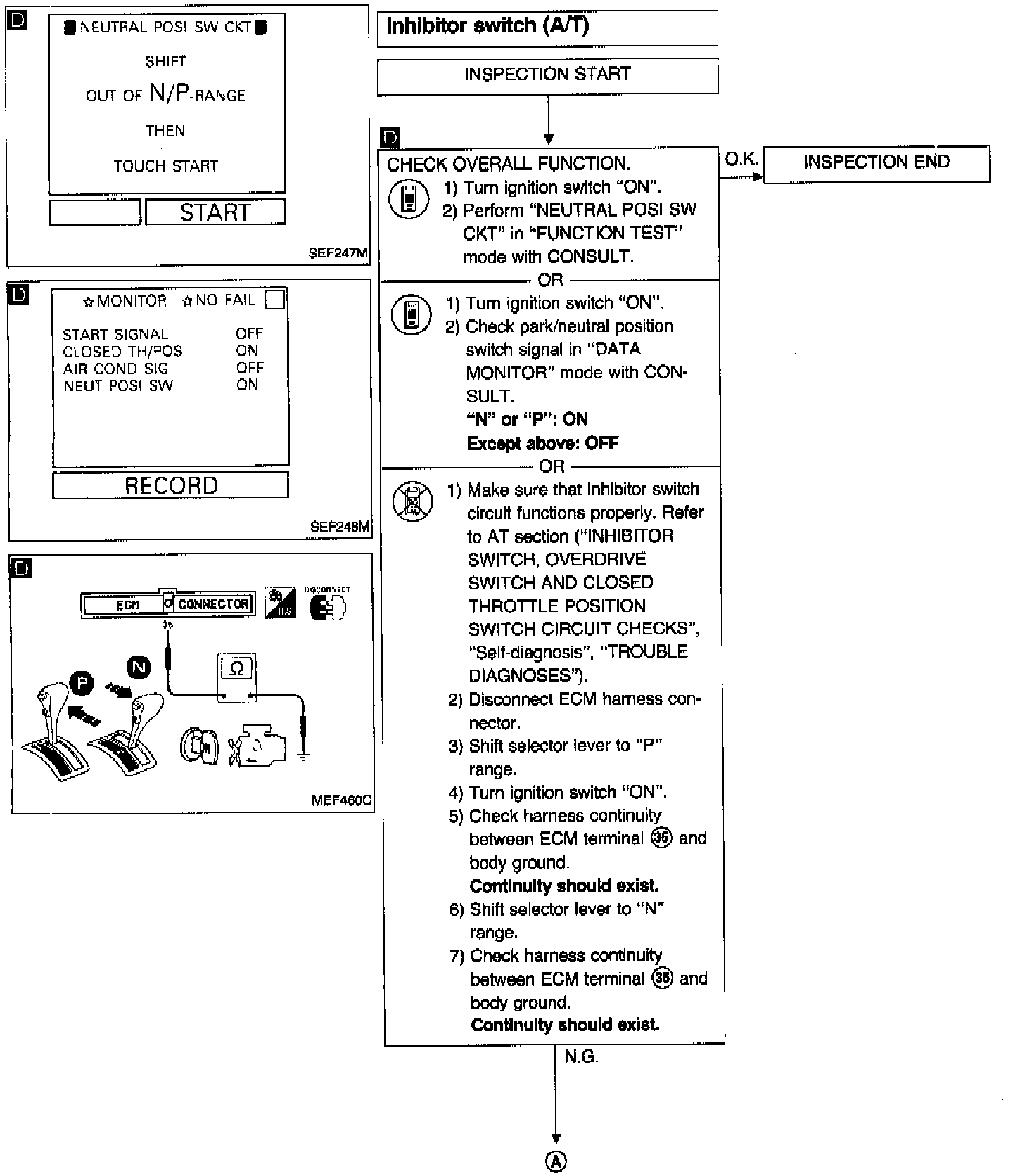

Inhibitor Switch Circuit Diagnostic Chart:

DIAGNOSTIC CHART

Neutral Position Switch/Inhibitor Switch Circuit:

CIRCUIT DIAGRAM

Harness Layout:

HARNESS LAYOUT
