M/T Only

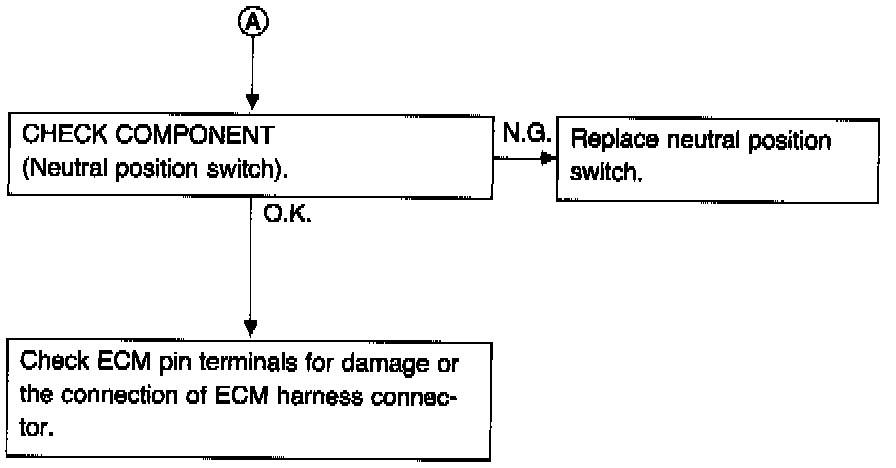

Neutral Position Switch Circuit Diagnostic Chart:




Neutral Position Switch Circuit Diagnostic Chart:

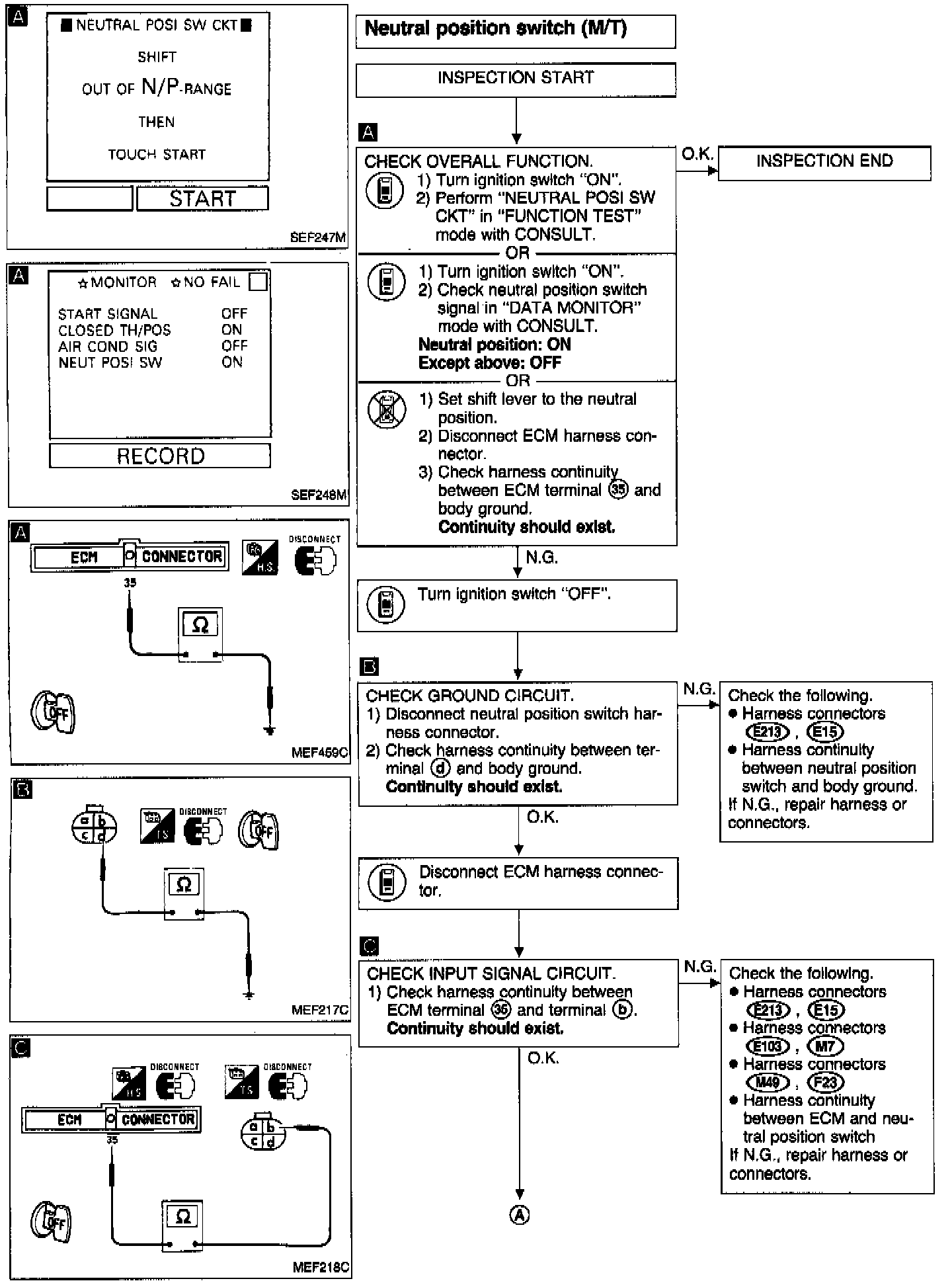

DIAGNOSTIC CHART

Neutral Position Switch/Inhibitor Switch Circuit:

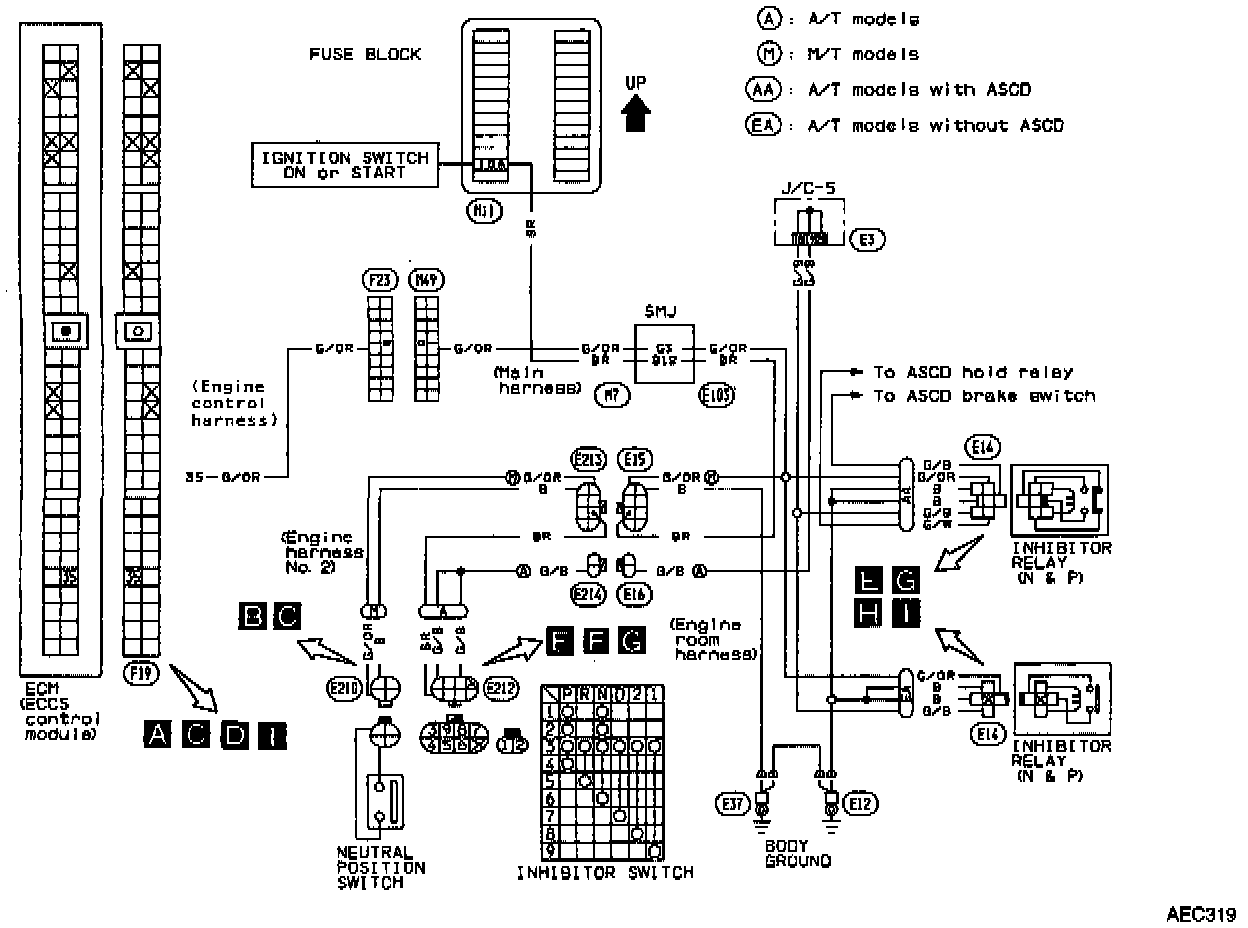

CIRCUIT DIAGRAM

Harness Layout:

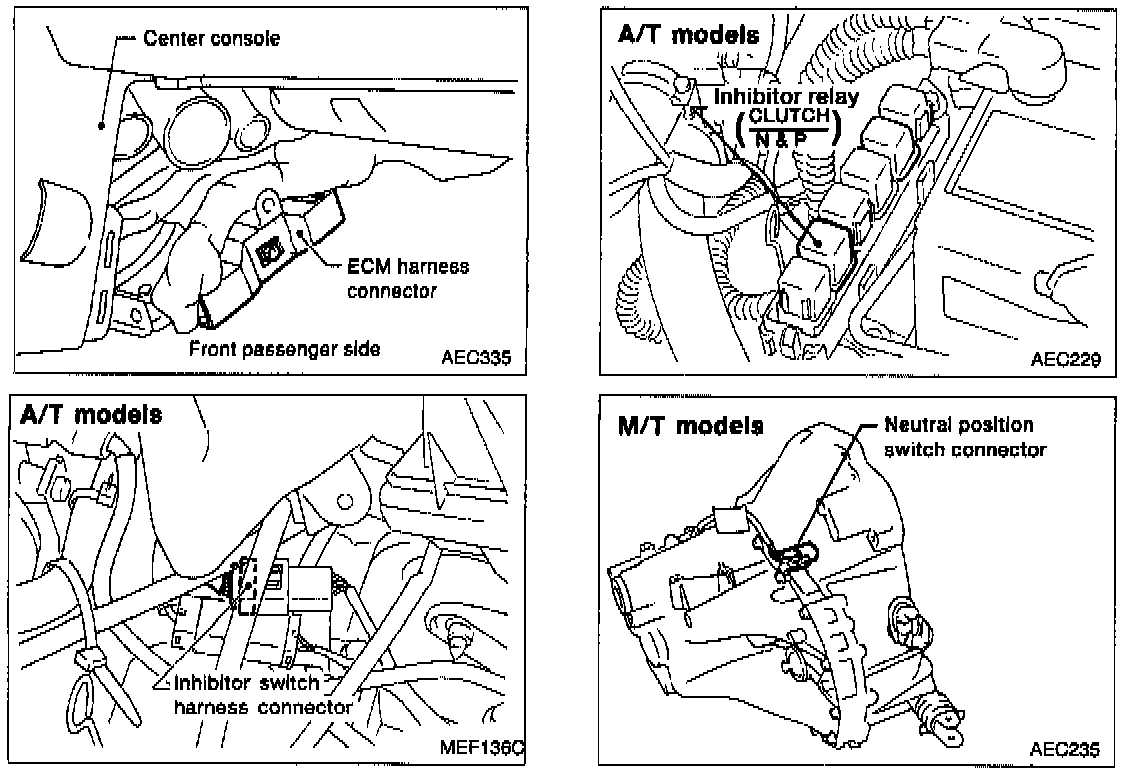

HARNESS LAYOUT
