Power Steering Oil Pressure Switch
Power Steering Oil Pressure Switch

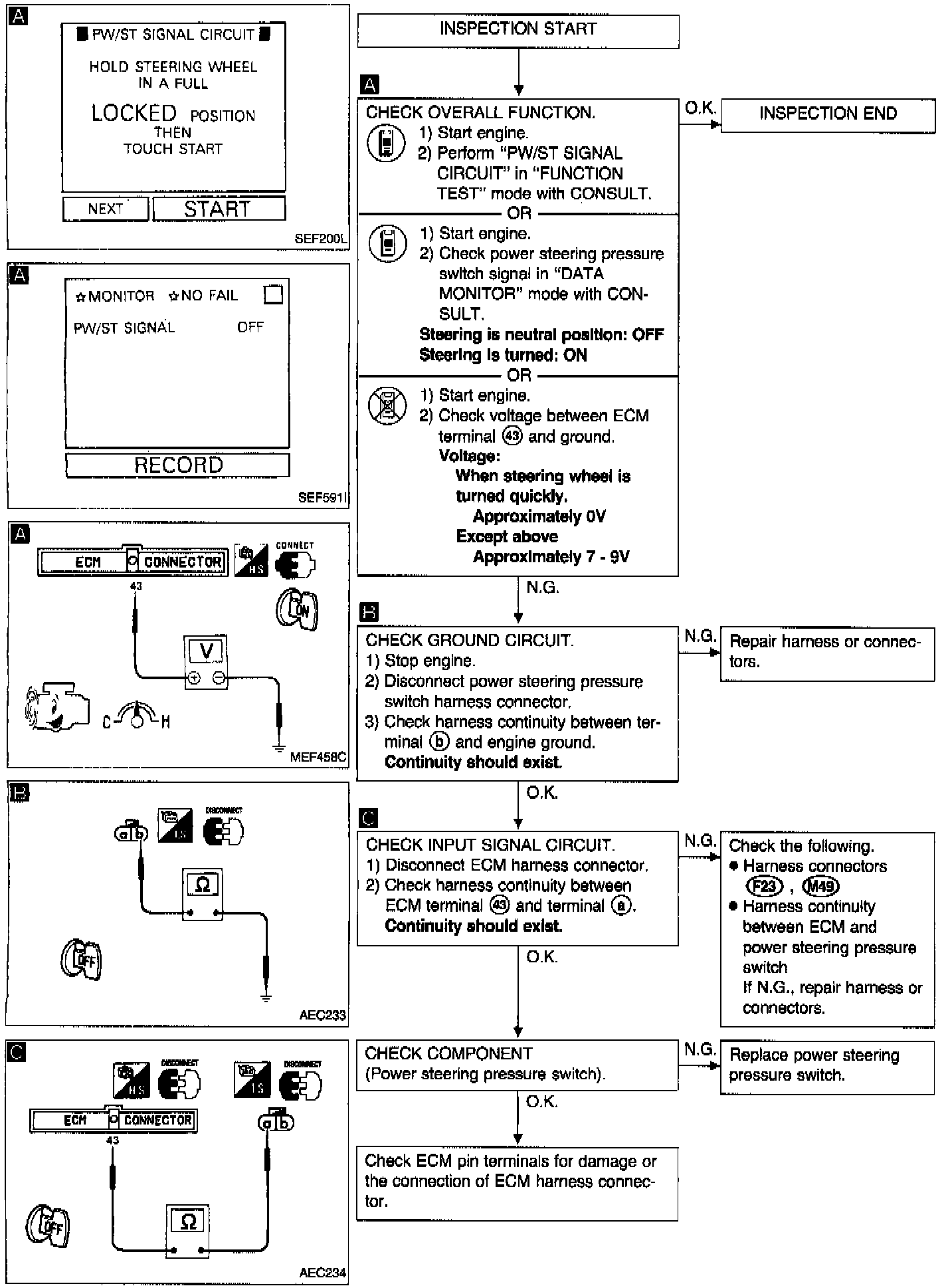

Power Steering Switch Circuit Diagnostic Chart:
DIAGNOSTIC CHART

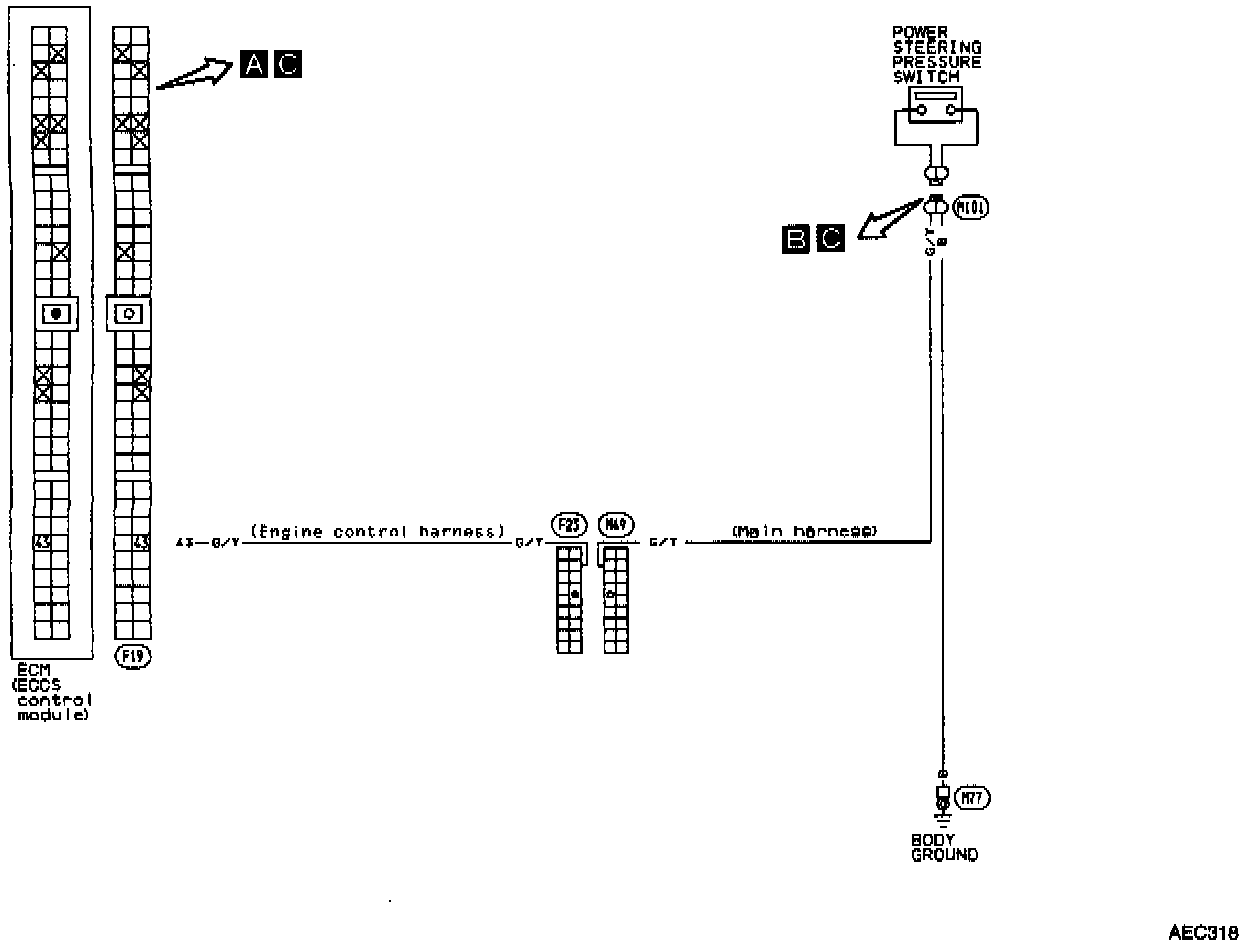

Power Steering Pressure Switch Circuit:
CIRCUIT DIAGRAM

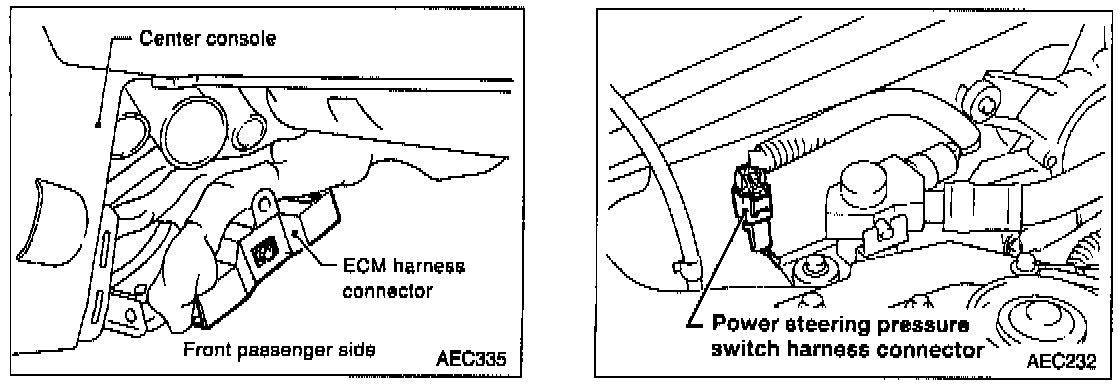

Harness Layout:
HARNESS LAYOUT
