Radiator Fan Control

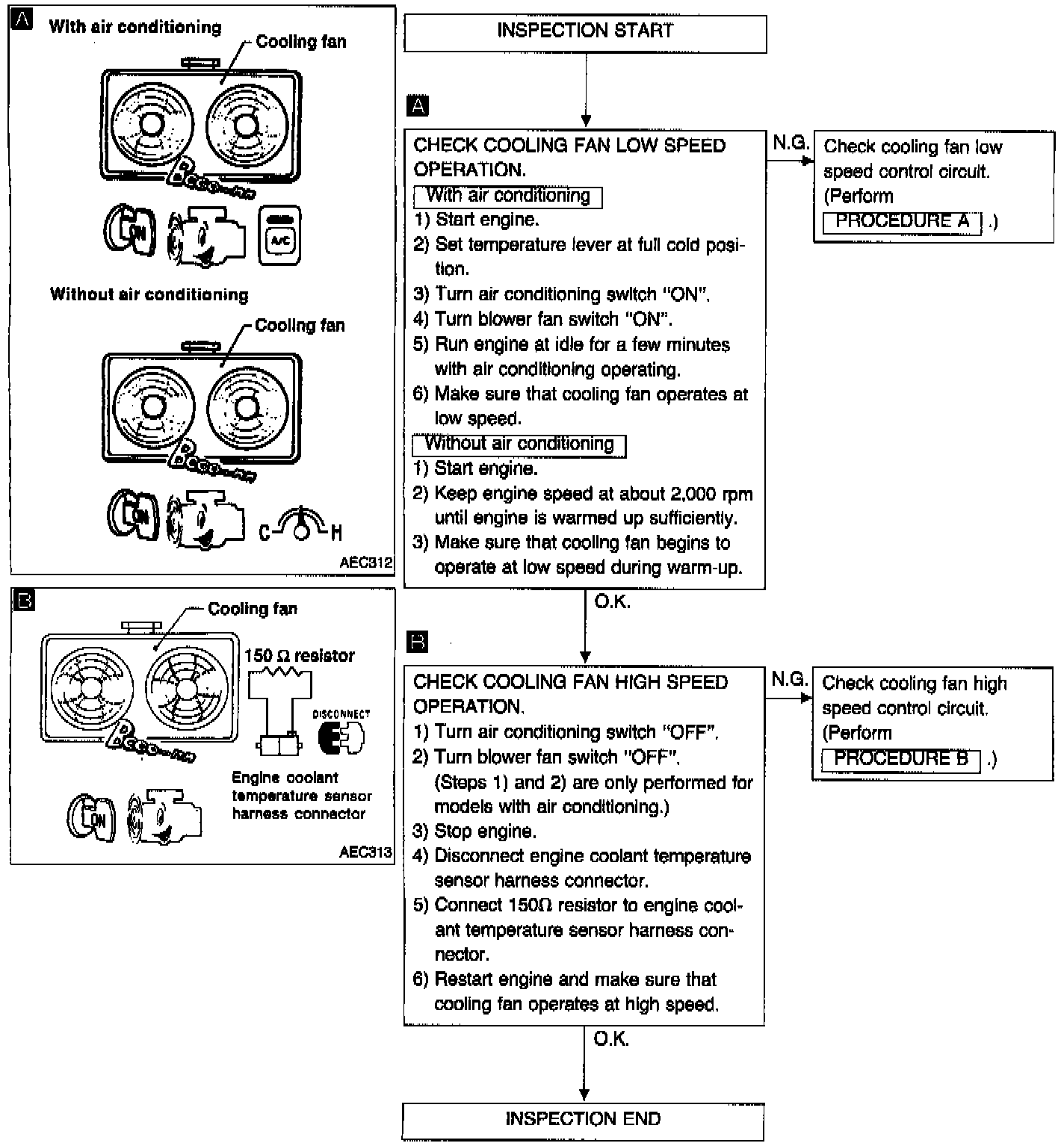

Cooling Fan Control Circuit Diagnostic Chart:

DIAGNOSTIC CHART

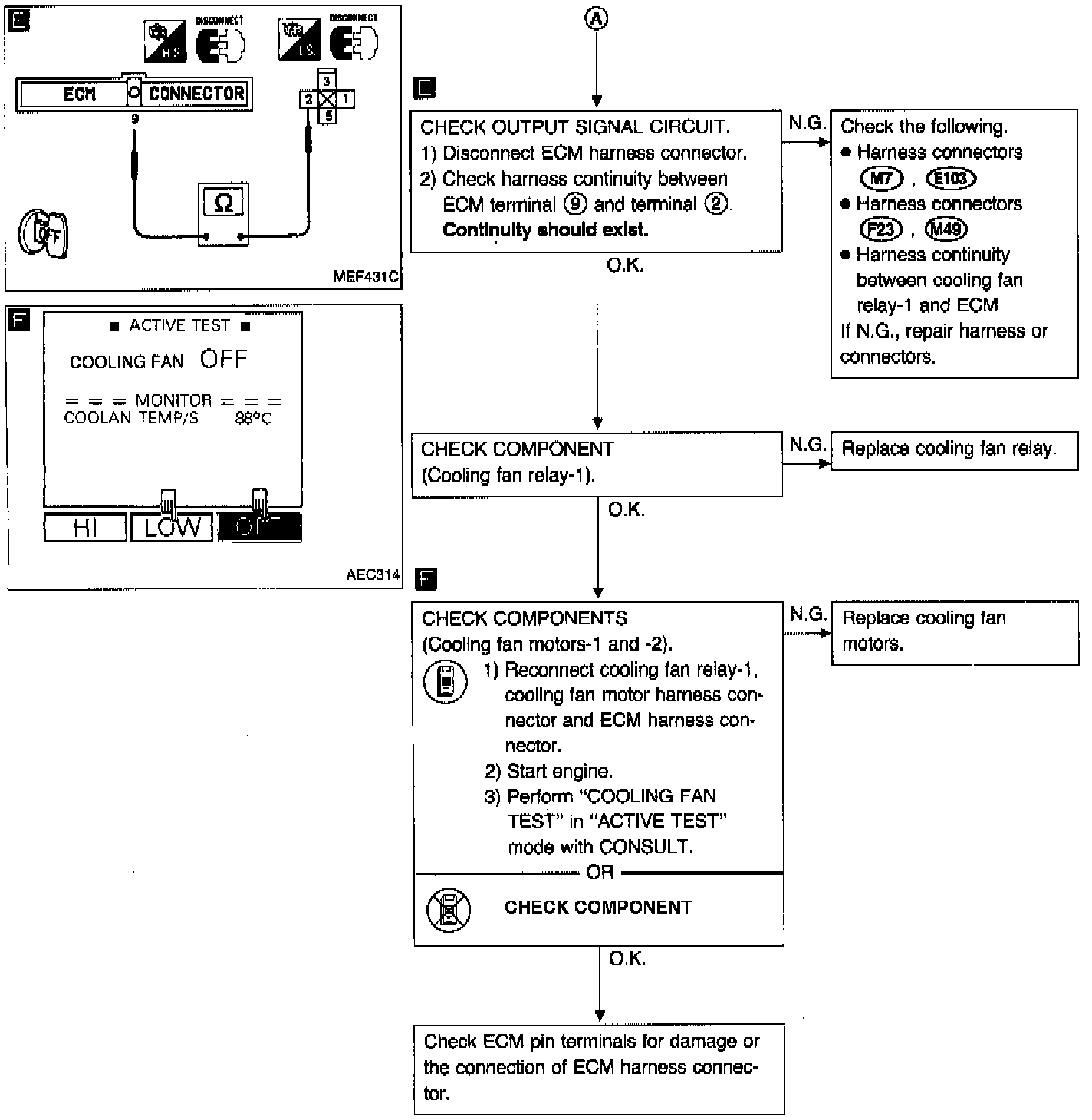

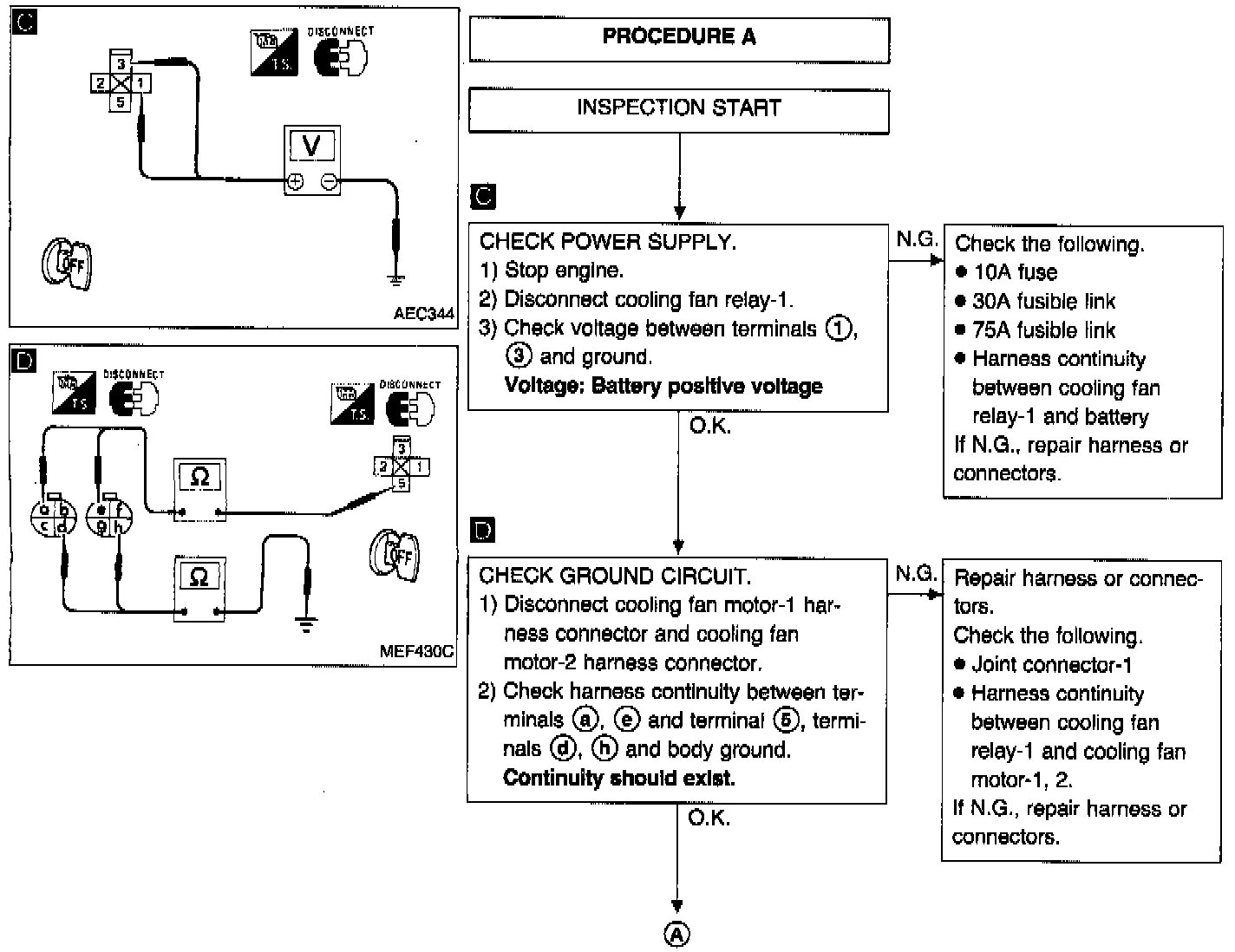

Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE A:

Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE A:

PROCEDURE A

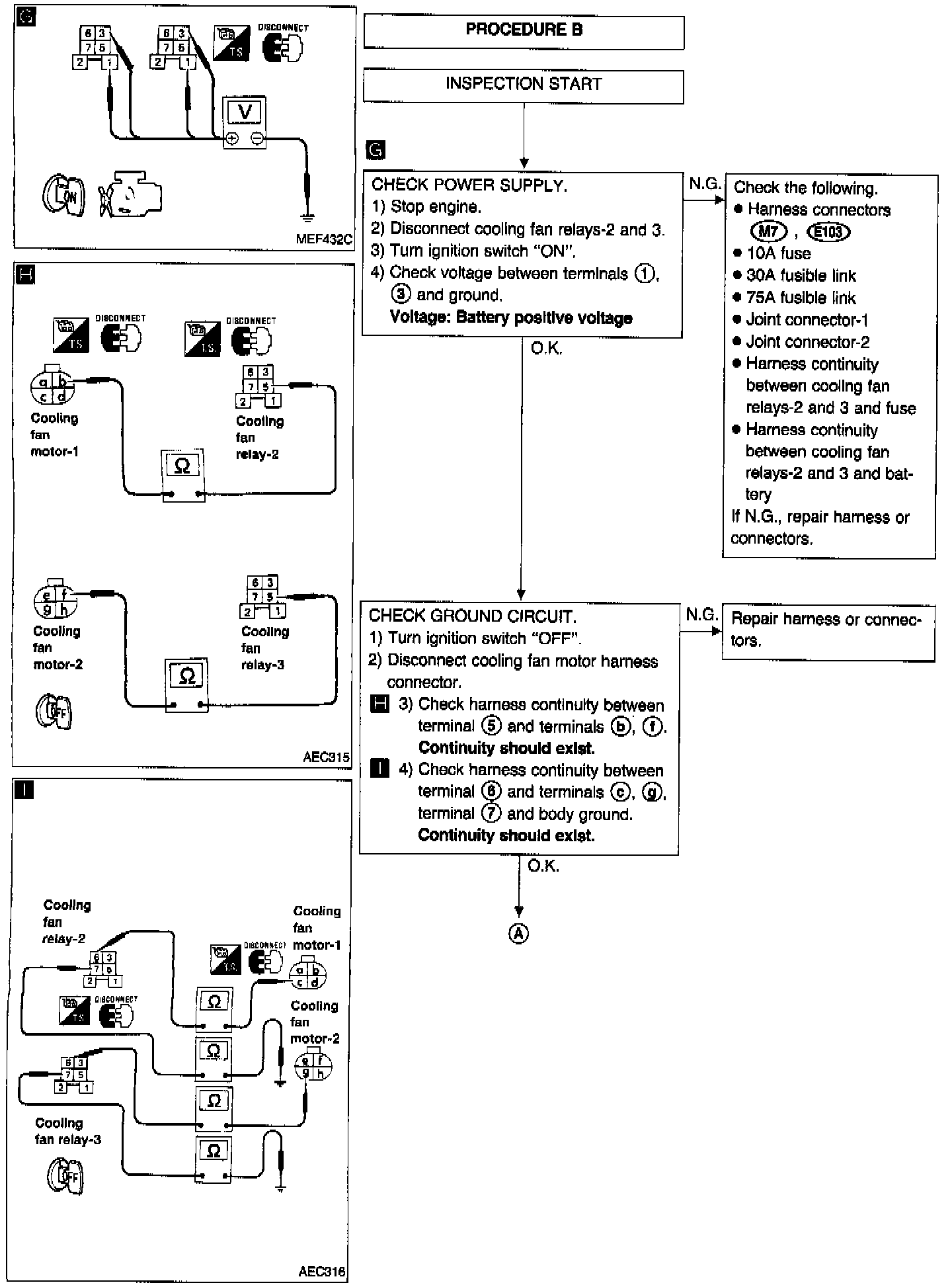

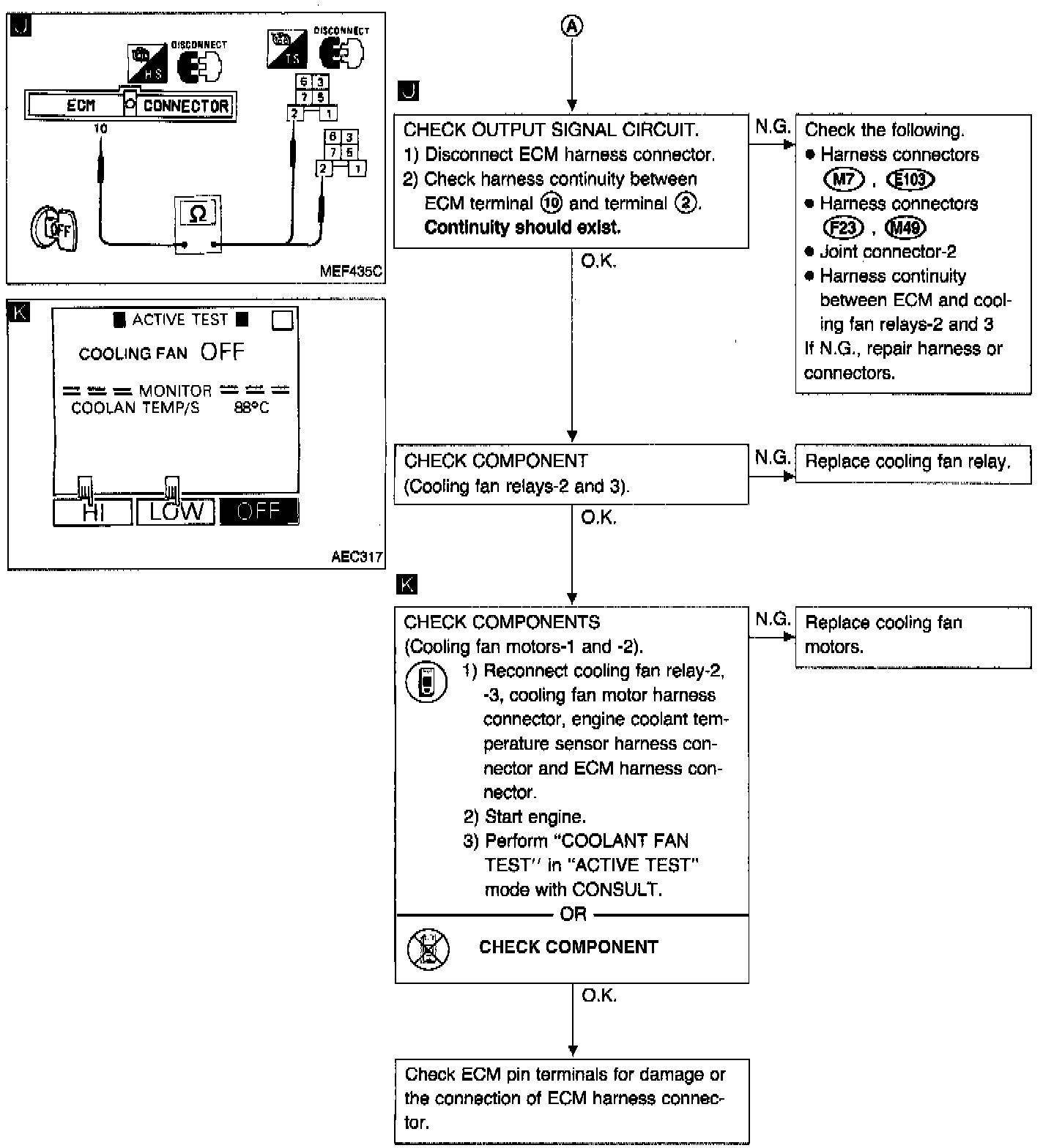

Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE B:

Cooling Fan Control Circuit Diagnostic Chart - PROCEDURE B:

PROCEDURE B

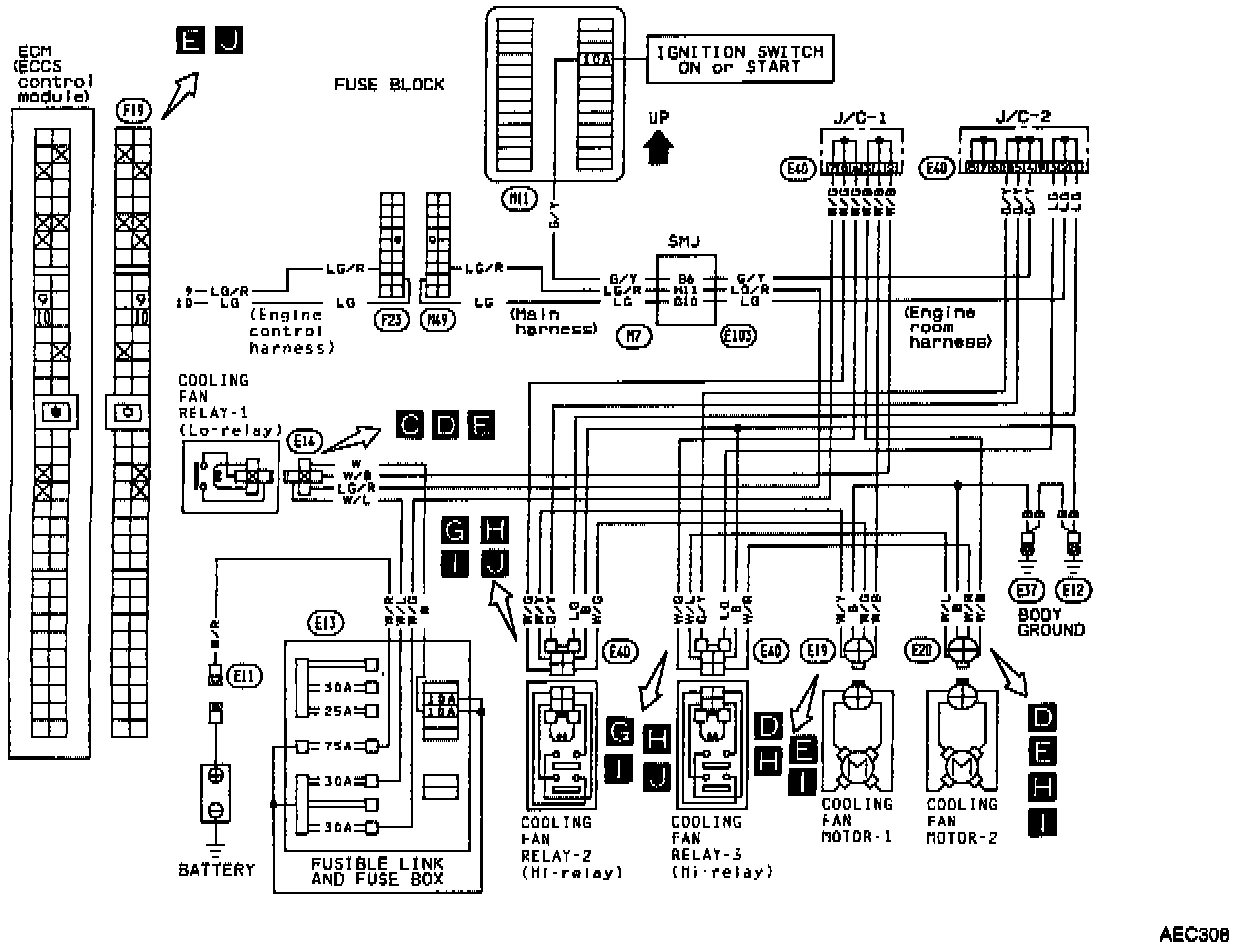

Cooling Fan Control Circuit:

CIRCUIT DIAGRAM

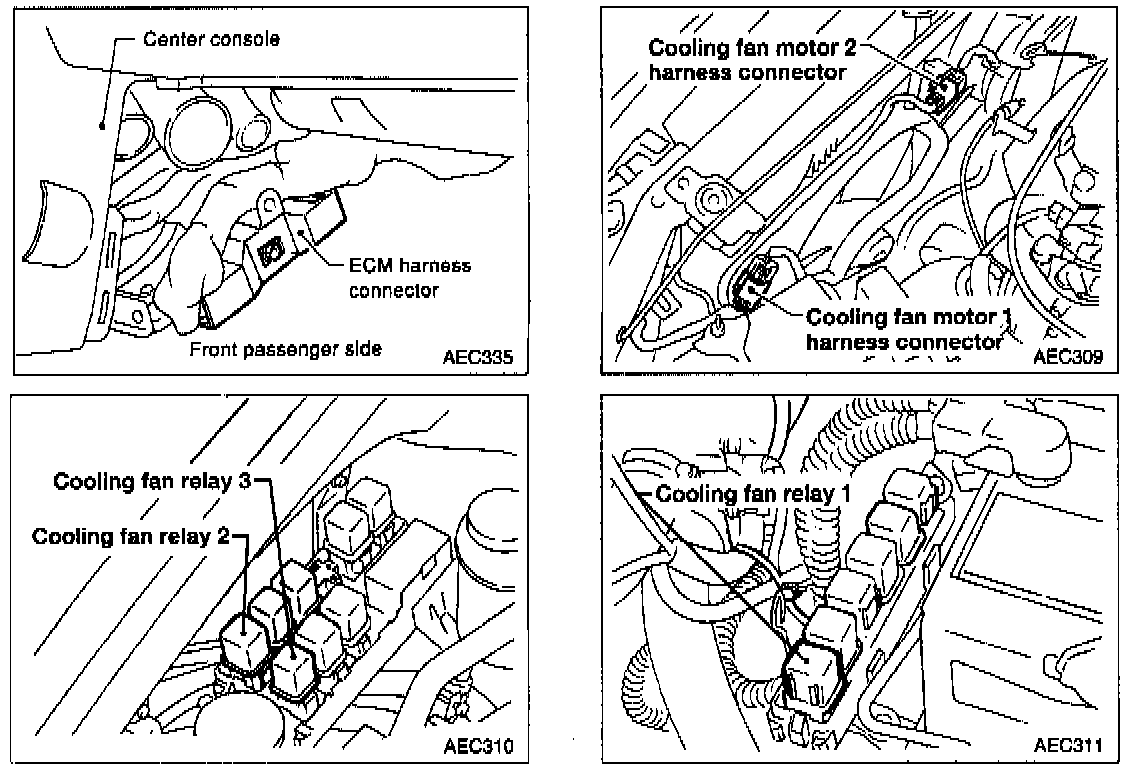

Harness Layout:

HARNESS LAYOUT
