Start Signal

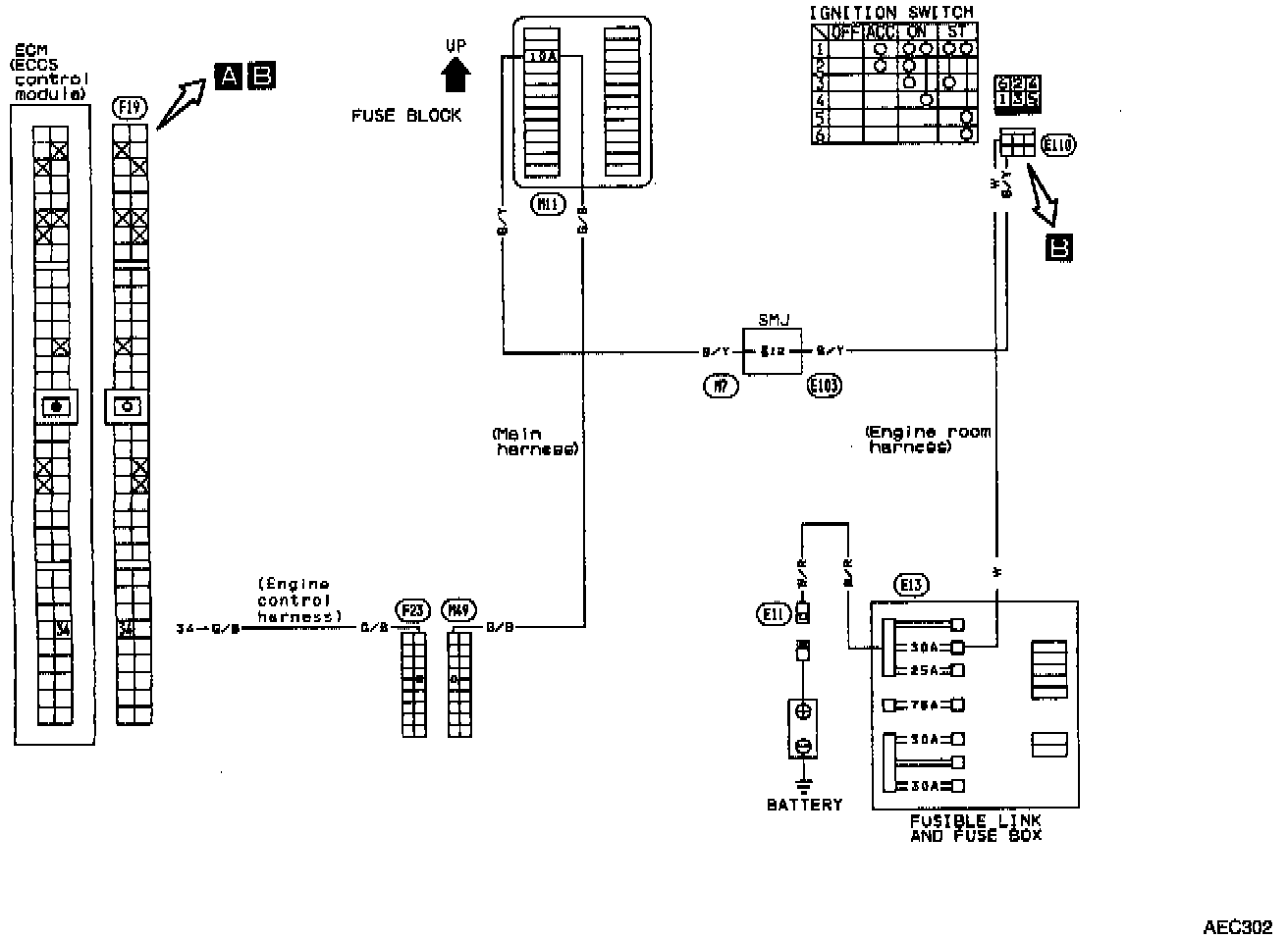

Start Signal Circuit:

DIAGNOSTIC CHART

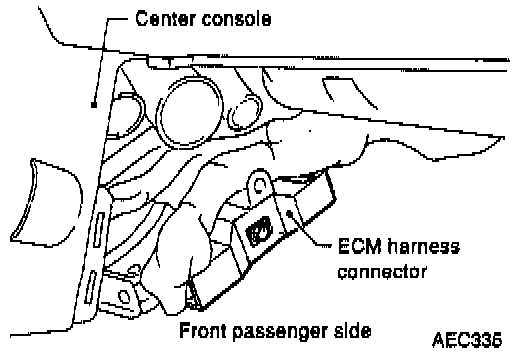

Harness Layout:

CIRCUIT DIAGRAM

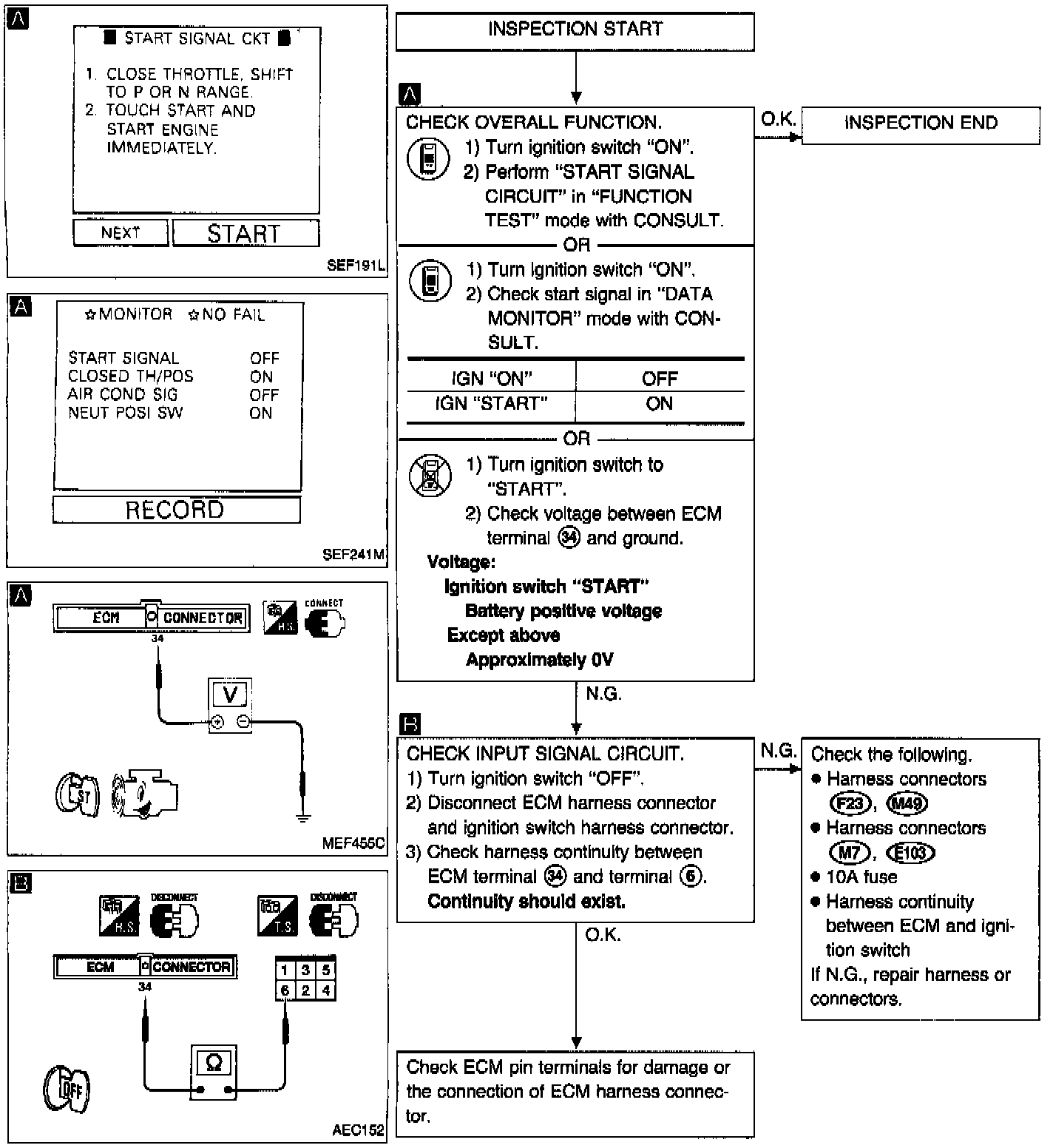

Start Signal Circuit Diagnostic Chart:

HARNESS LAYOUT
