Power Supply Testing

ECU Main Power And Ground Circuit Diagnostic Chart:

ECU Main Power And Ground Circuit Diagnostic Chart:

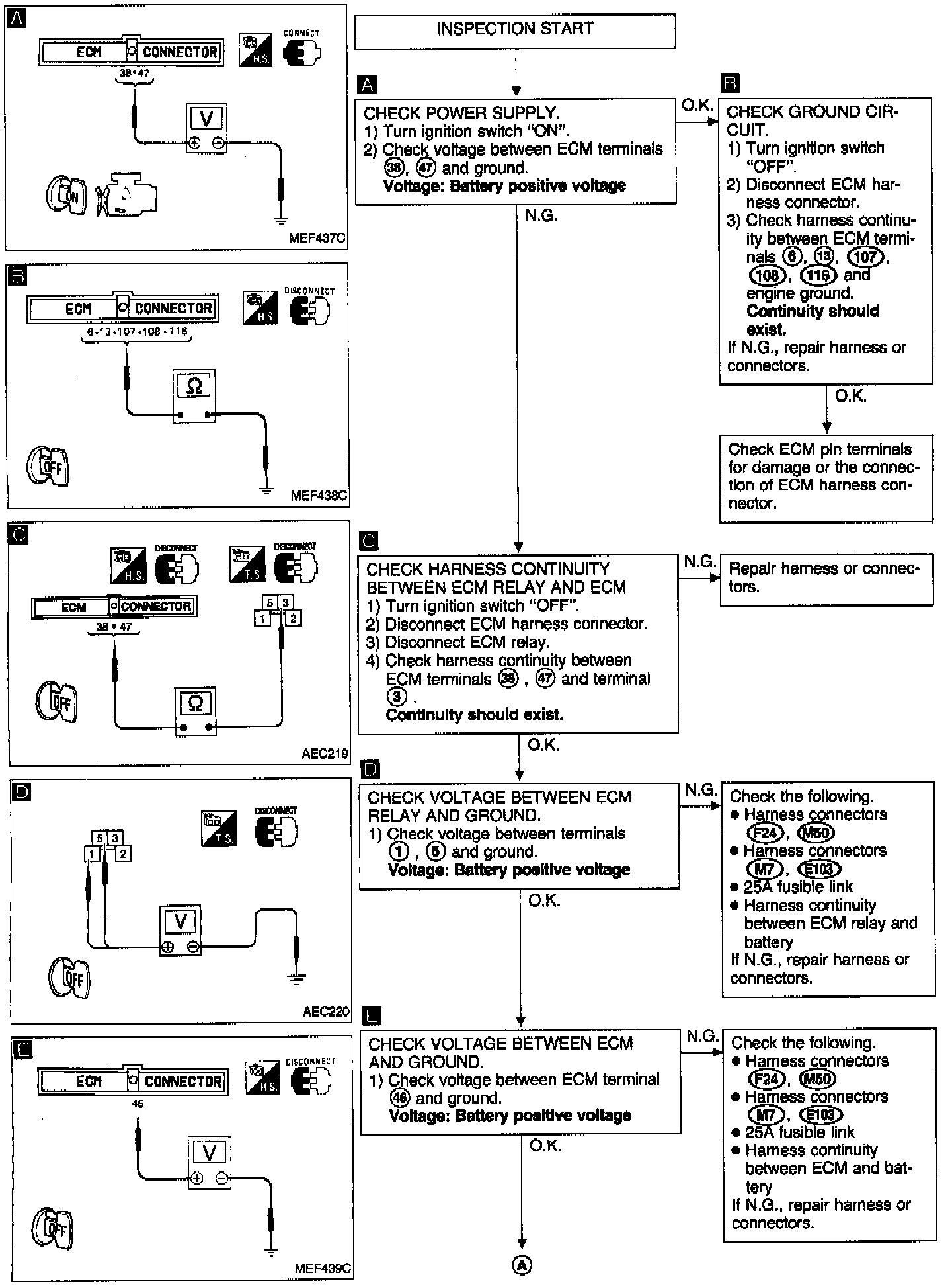

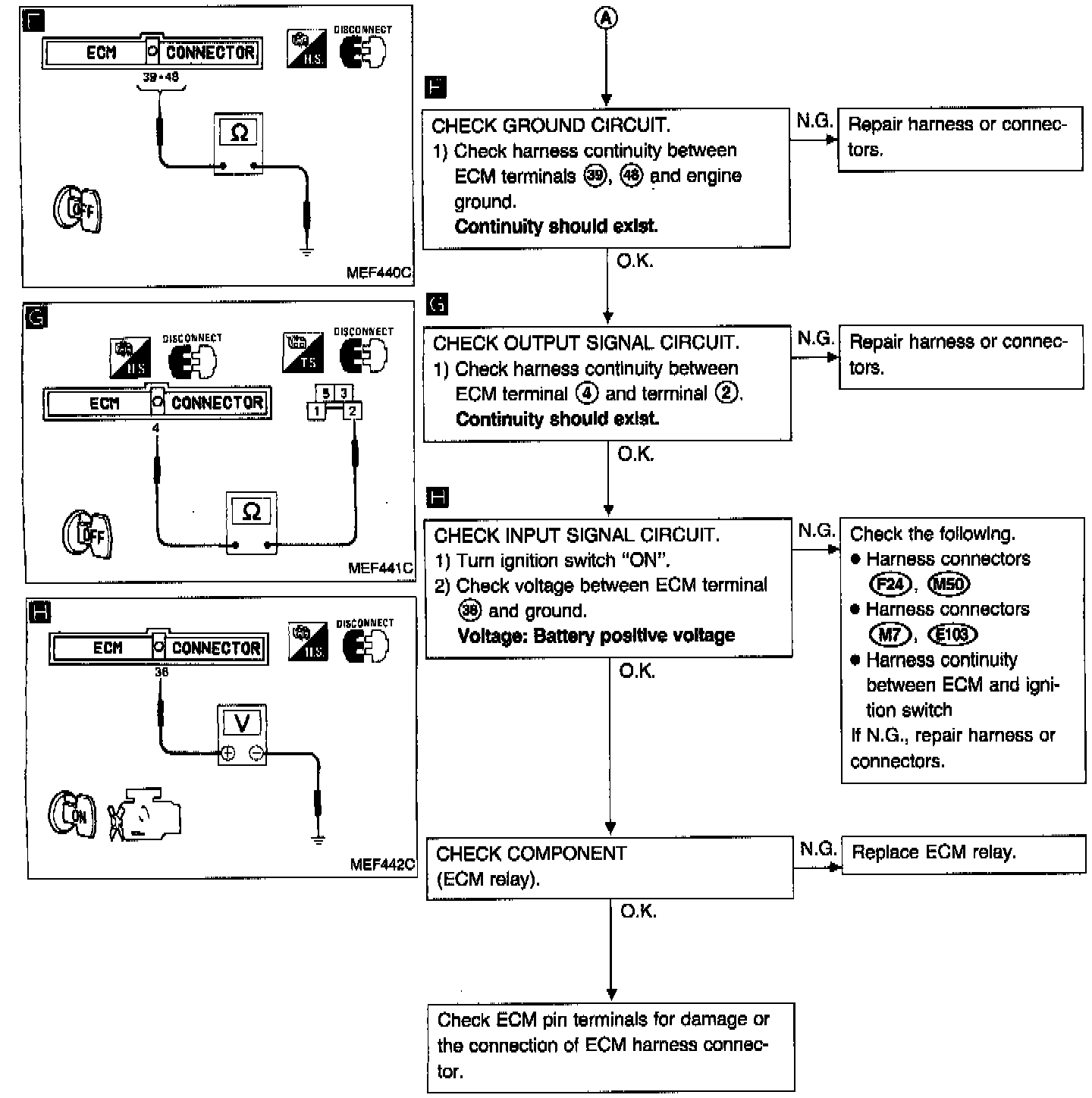

DIAGNOSTIC CHART

ECM Main Power And Ground Circuit:

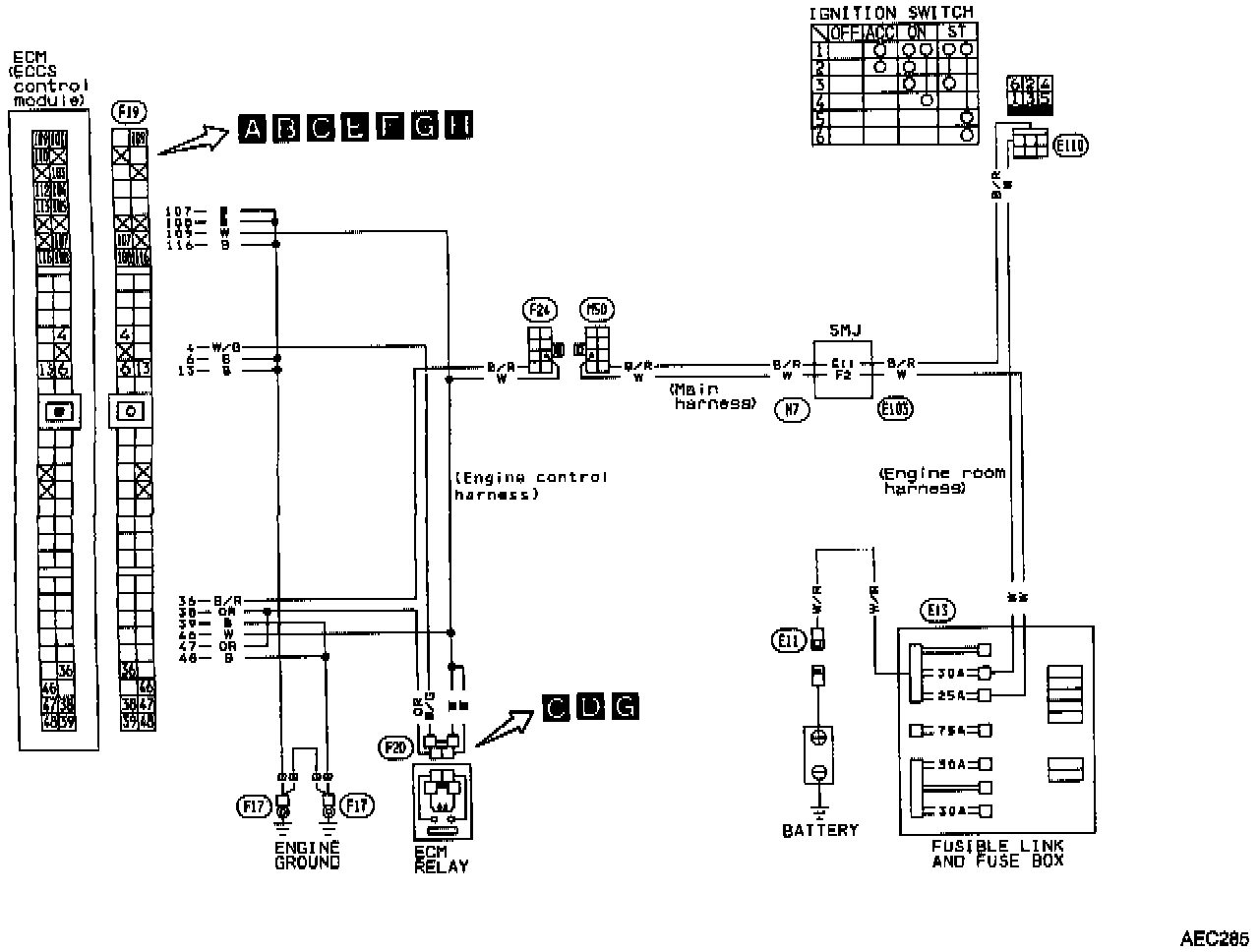

CIRCUIT DIAGRAM

Harness Layout:

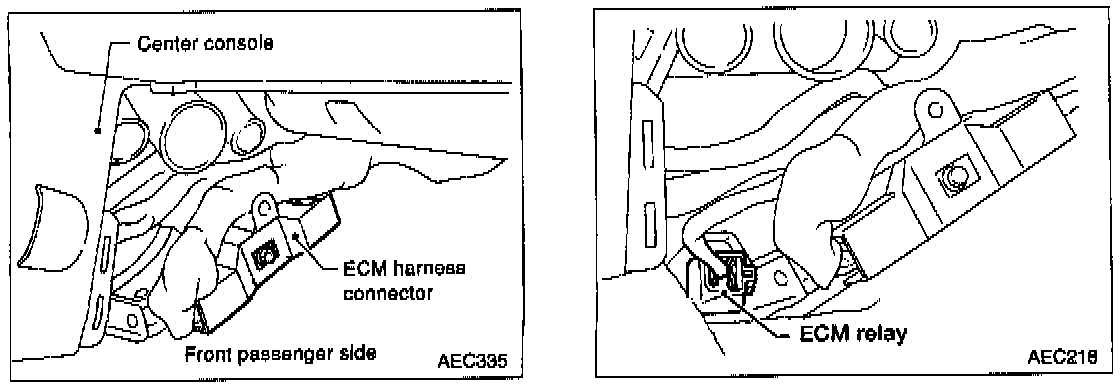

HARNESS LAYOUT
