Vehicle Speed Sensor Signal Check

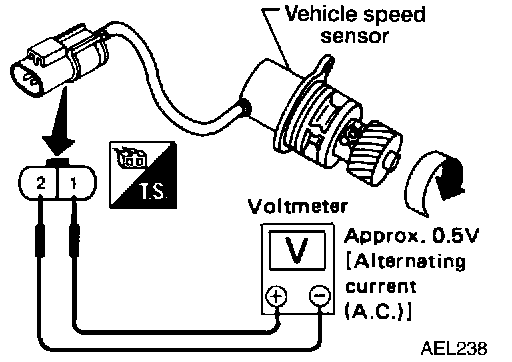

Vehicle Speed Sensor Signal Check:

1. Remove vehicle speed sensor from transaxle.
2. Turn vehicle speed sensor pinion quickly and measure voltage across (1) and (2).
