Electronic Concentrated Control System Schematic
Electronic Concentrated Control System Schematic

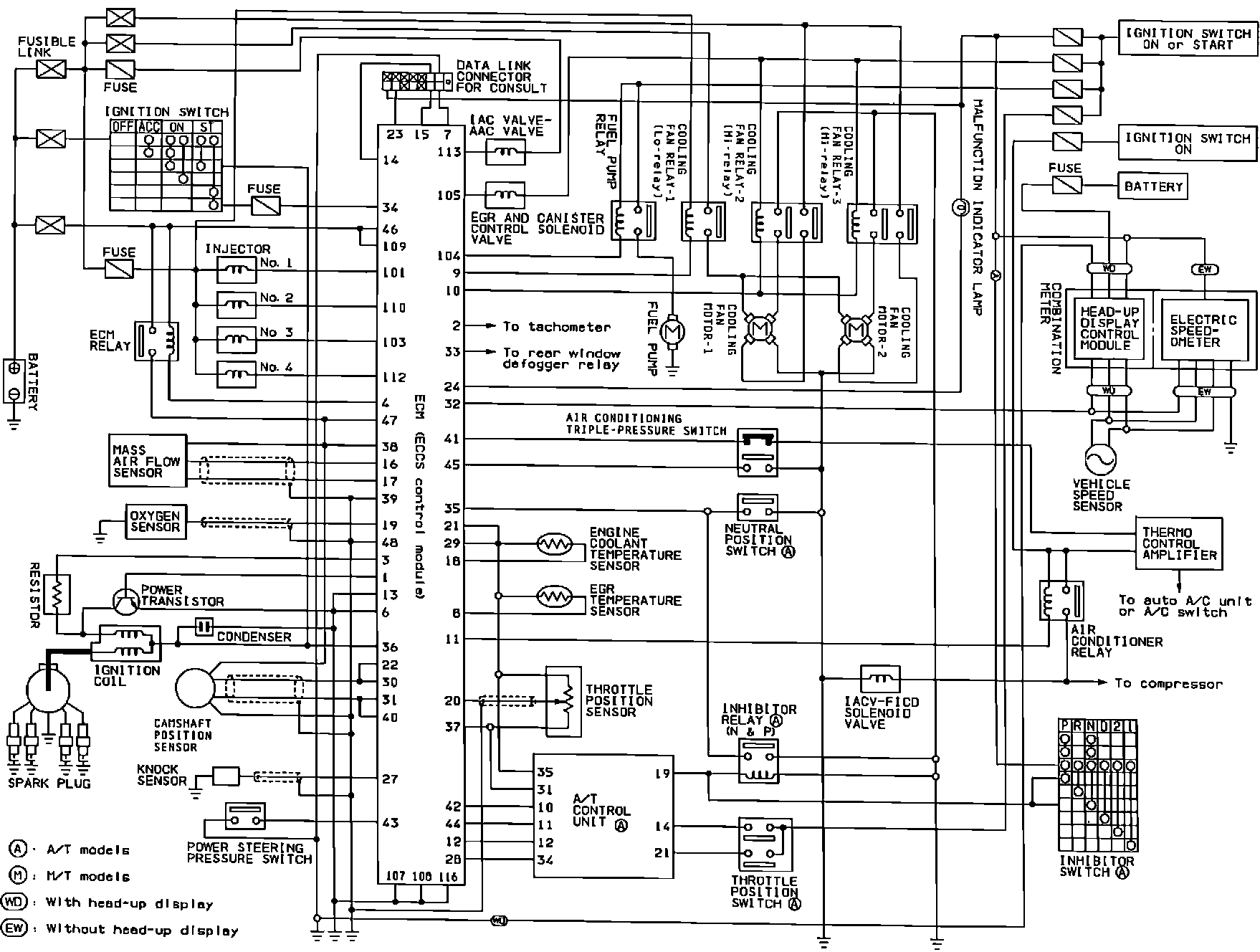

ECCS System Circuit Diagram:
