Manual Transmission
Manual Transmission

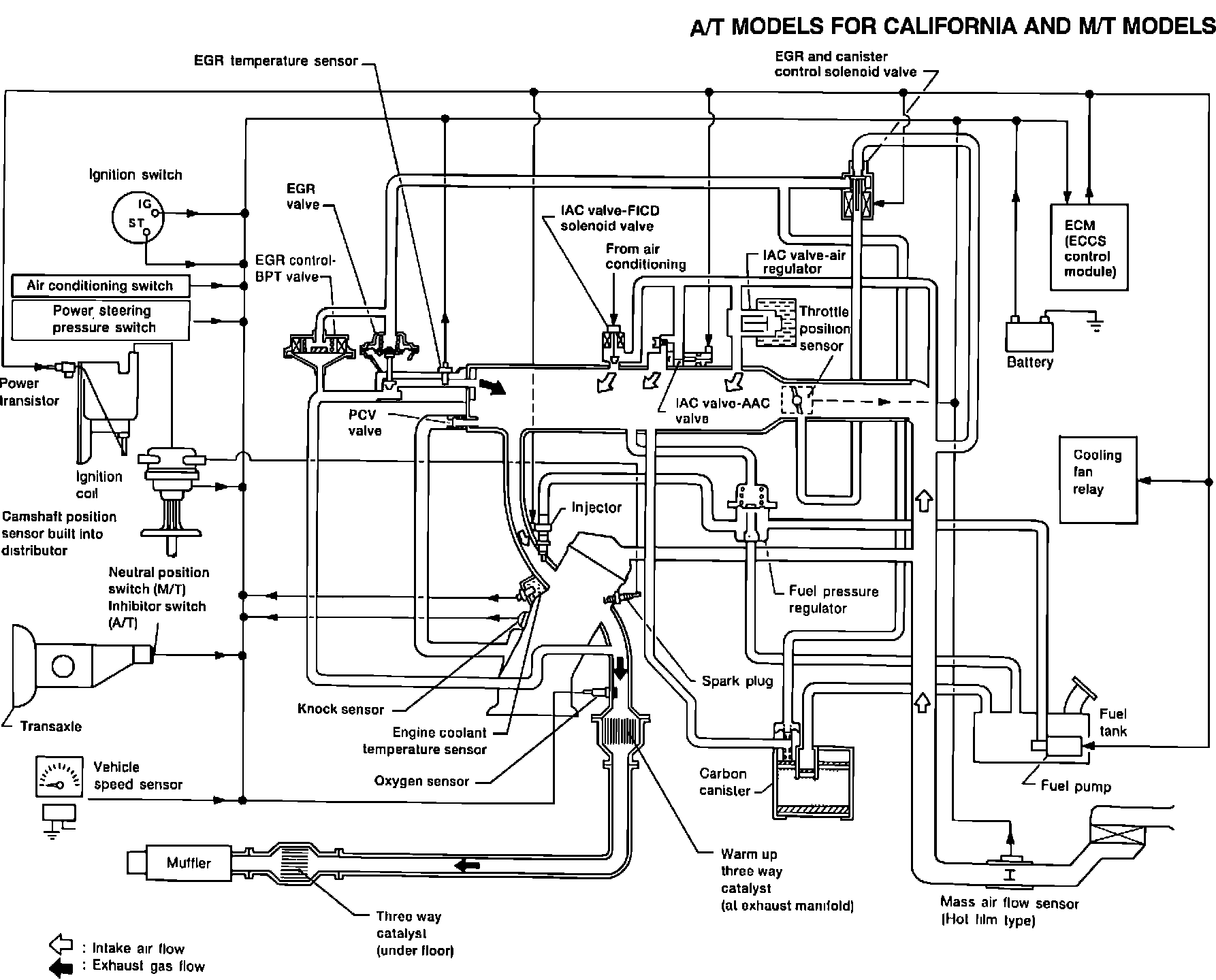

ECCS System Diagram (All M/T Models And Calif. A/T):
GENERAL SYSTEM SCHEMATIC

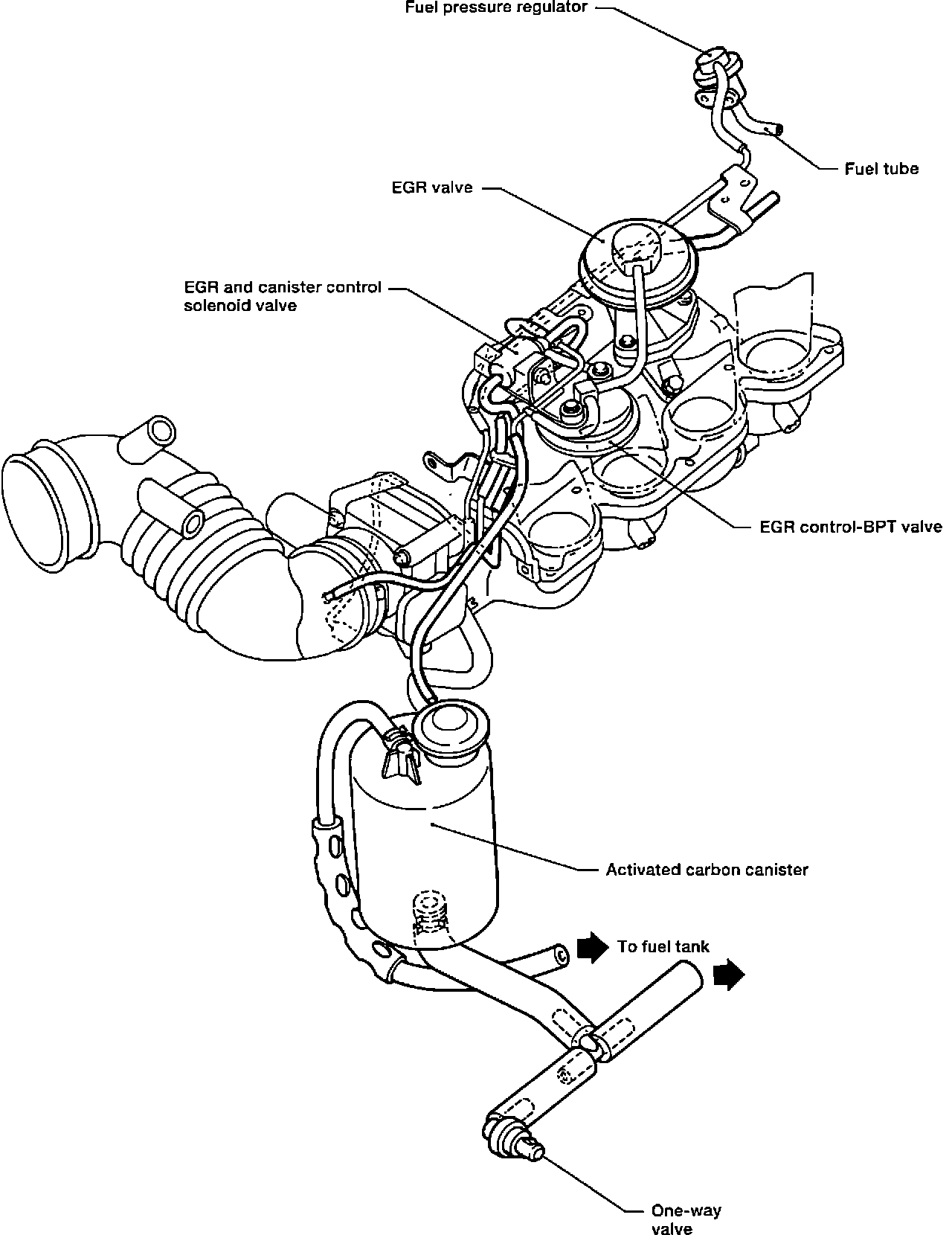

Vacuum Hose Routing And Connections:
VACUUM FITTINGS AND CONNECTIONS
