Evaporative Emission Control Canister: Testing and Inspection

Canister Test:

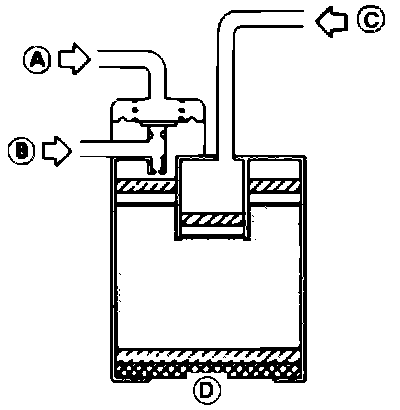

CARBON CANISTER
1. Blow air into port "A". Air should NOT leak.
2. Apply vacuum to port "A".
3. Cover port "D" with your hand.
4. Blow air in port "C" and ensure free flow out of port "B".
5. Replace canister if it fails above tests.
