Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
EGR Control Solenoid
>>
Diagrams
>>

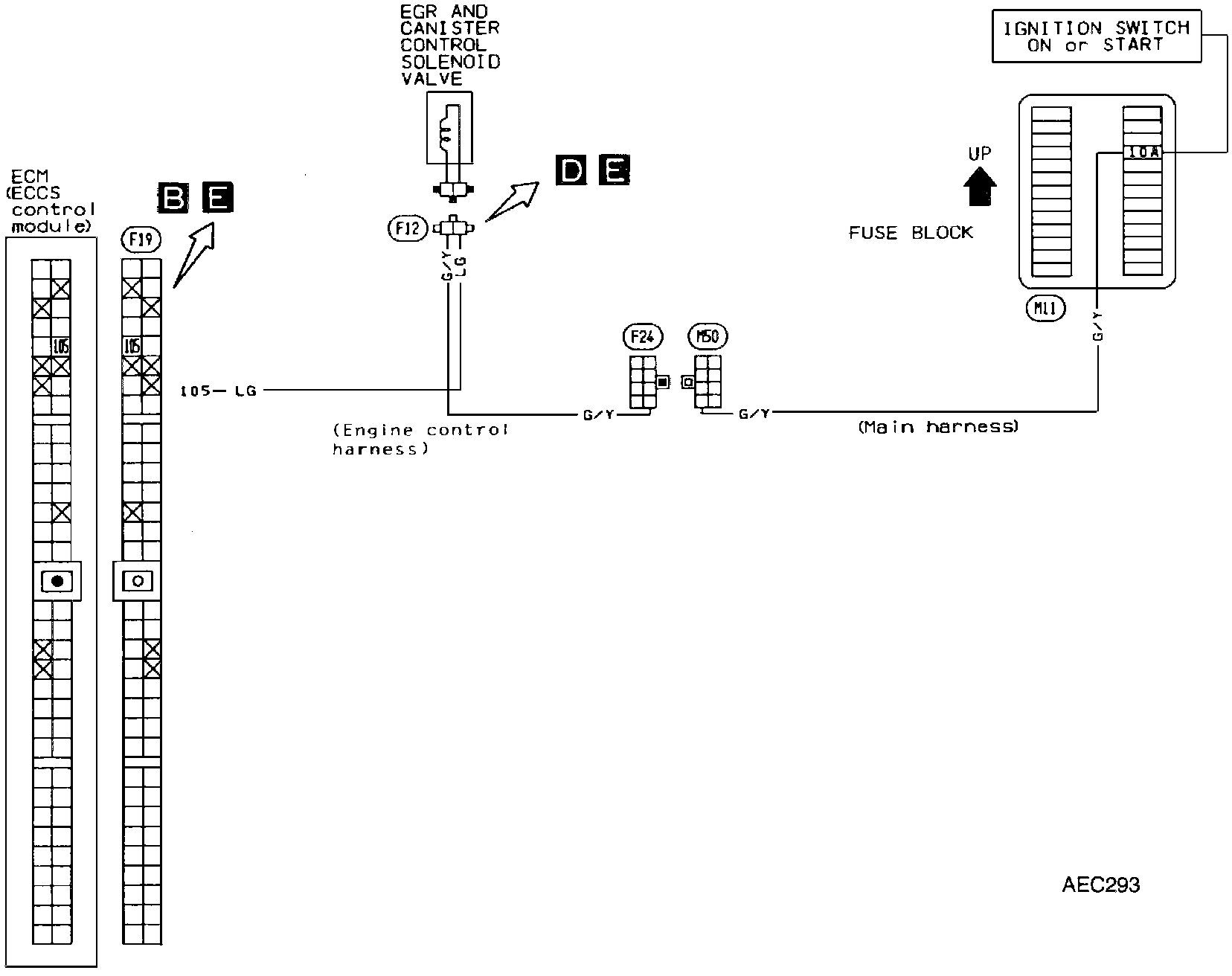

Electrical Diagrams
Electrical Diagrams
EGR Function:
