Accelerator Pedal: Description and Operation

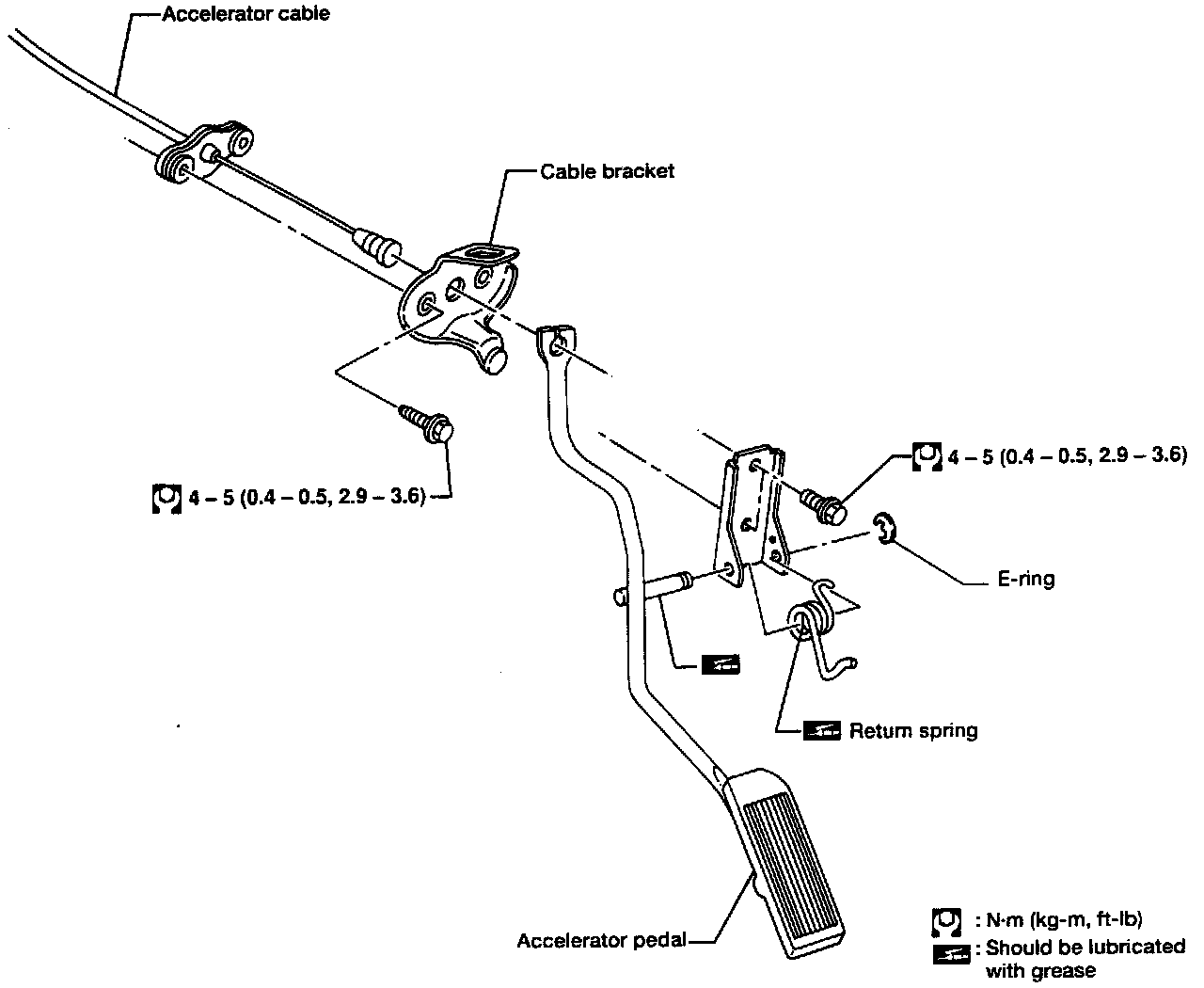

Accelerator Pedal And Cable:

PURPOSE
Allows operator control over throttle valve opening.


OPERATION
When the accelerator pedal is depressed, it pulls the inner wire of the throttle cable, which in turn opens the throttle valve.
