DTC 11 - Camshaft Position Sensor

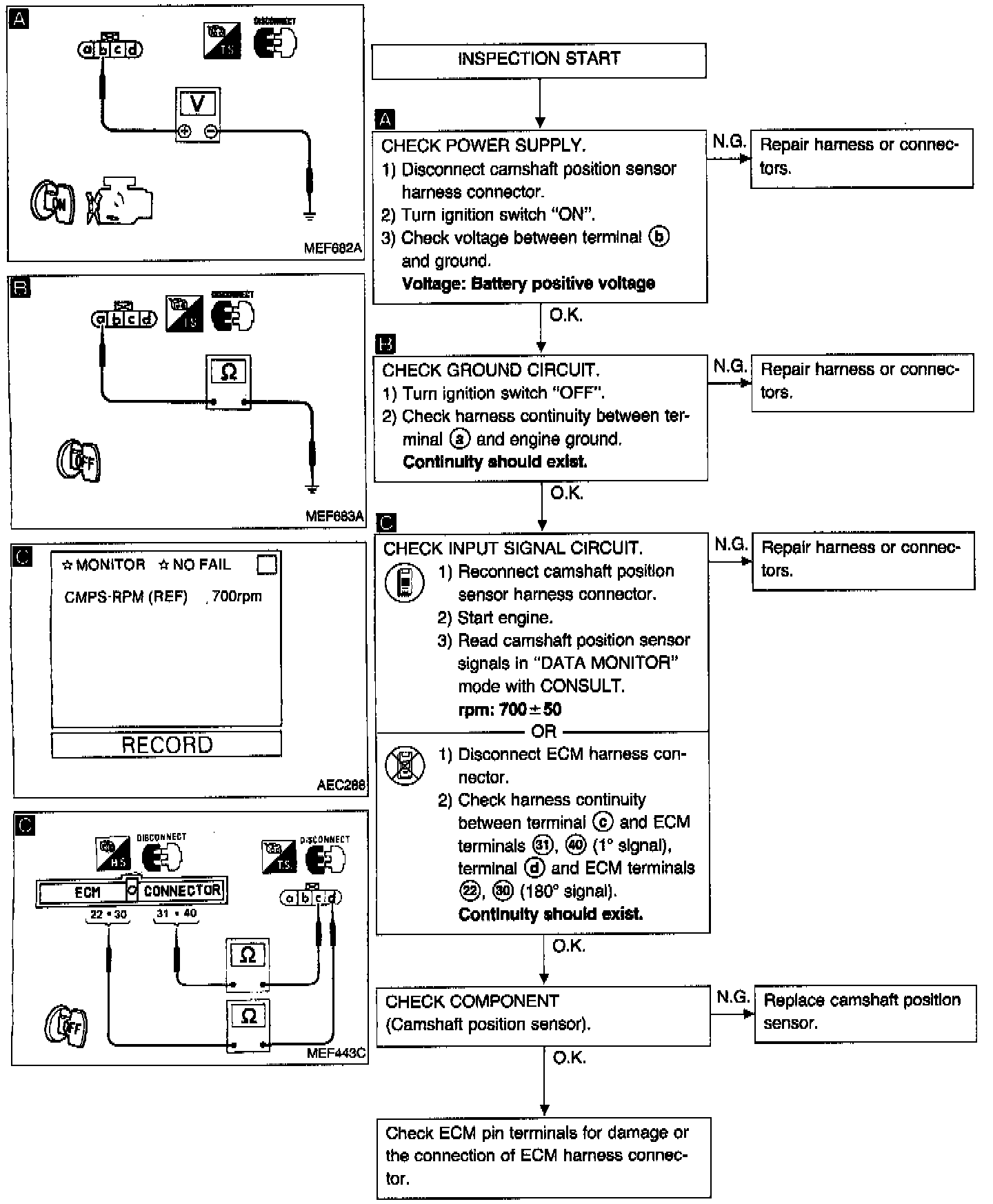

DTC 11 Camshaft Position Sensor Diagnostic Chart:





DIAGNOSTIC CHART

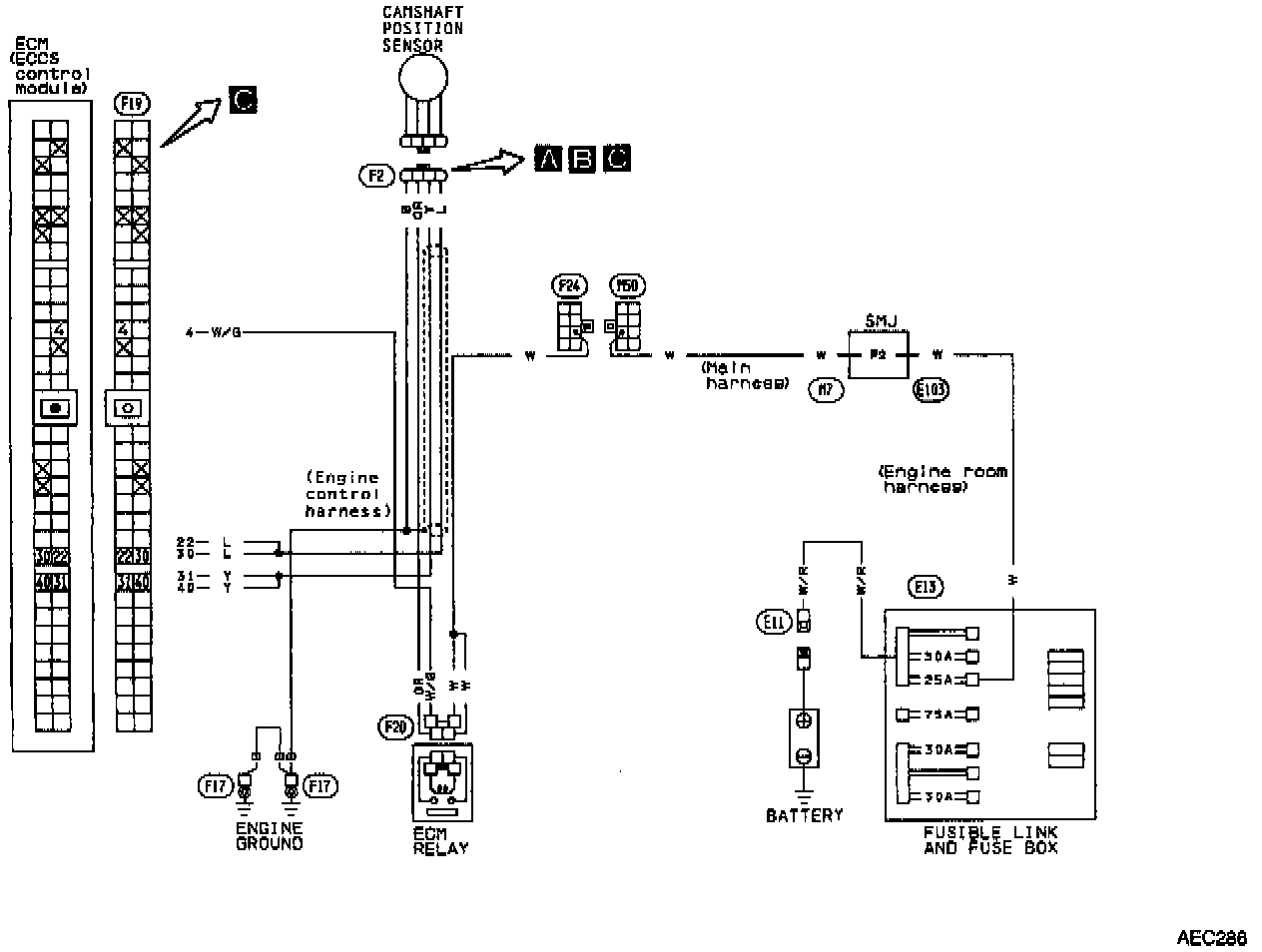

Camshaft Position Sensor Circuit:





CIRCUIT DIAGRAM

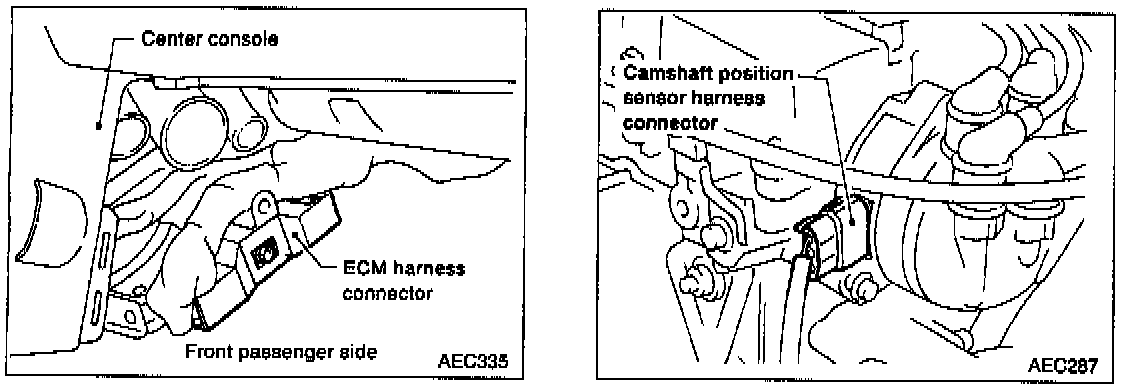

Harness Layout:





HARNESS LAYOUT

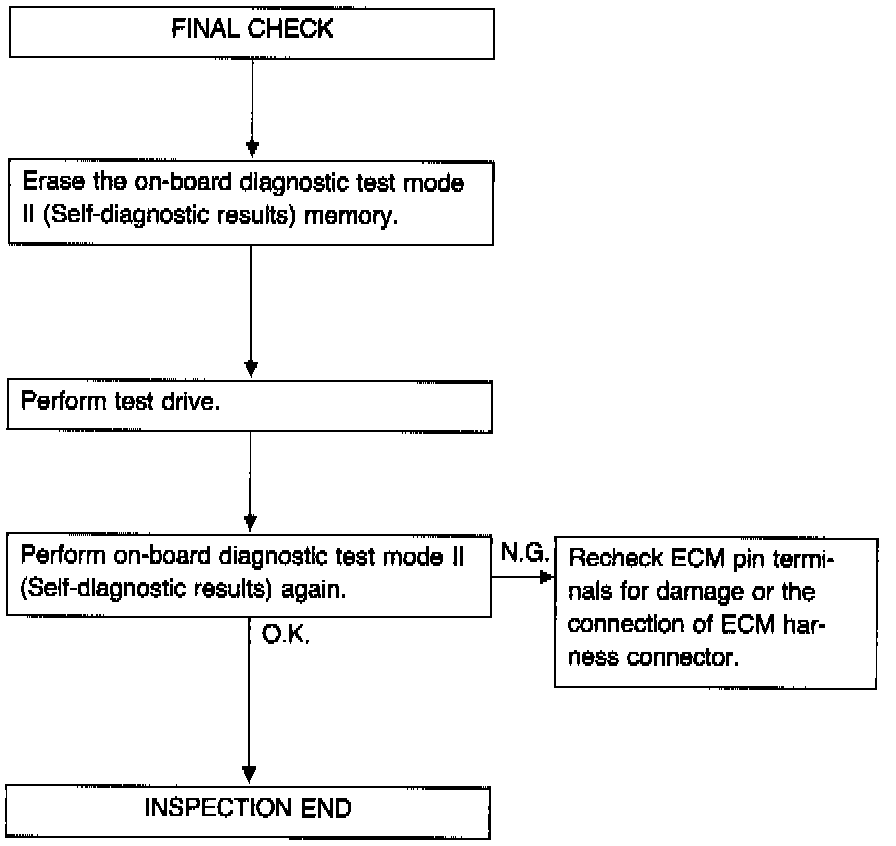

Final Check:





FINAL CHECK
