DTC 21 - Ignition Signal

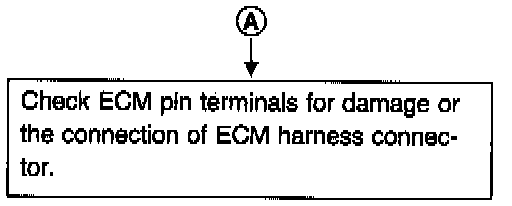

DTC 21 Ignition Signal Diagnostic Chart:




DTC 21 Ignition Signal Diagnostic Chart:

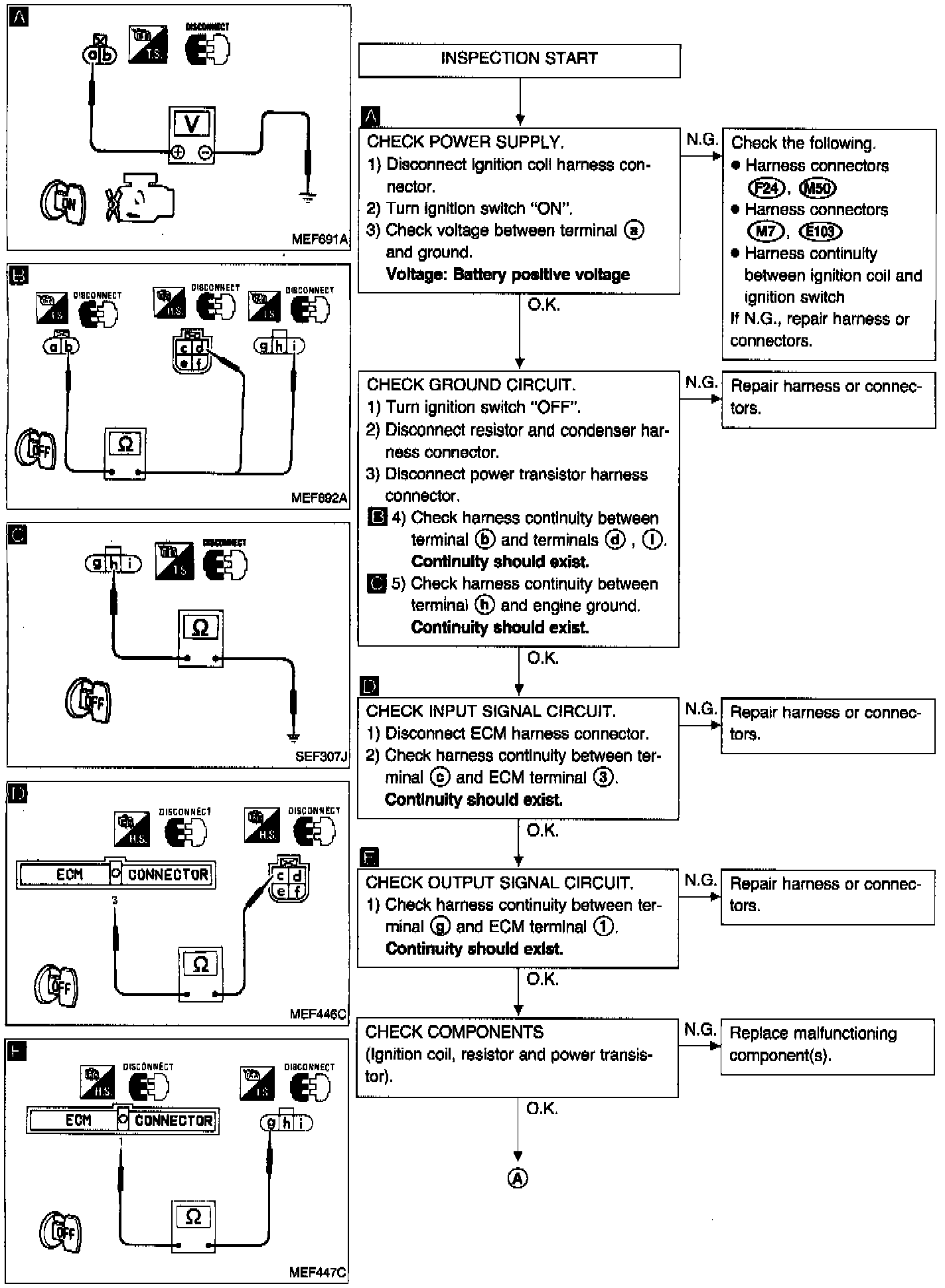

DIAGNOSTIC CHART

Ignition Signal Circuit:

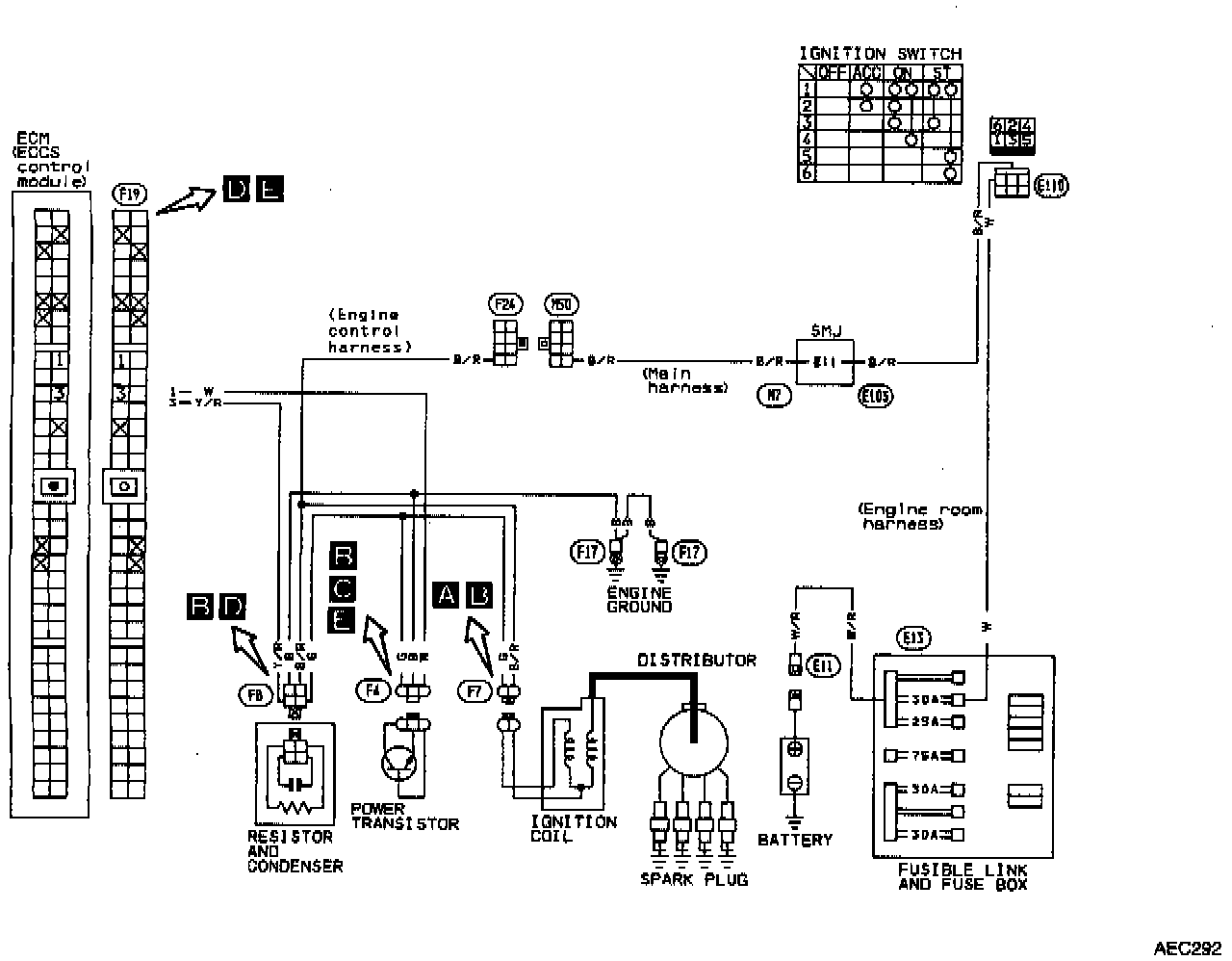

CIRCUIT DIAGRAM

Harness Layout:

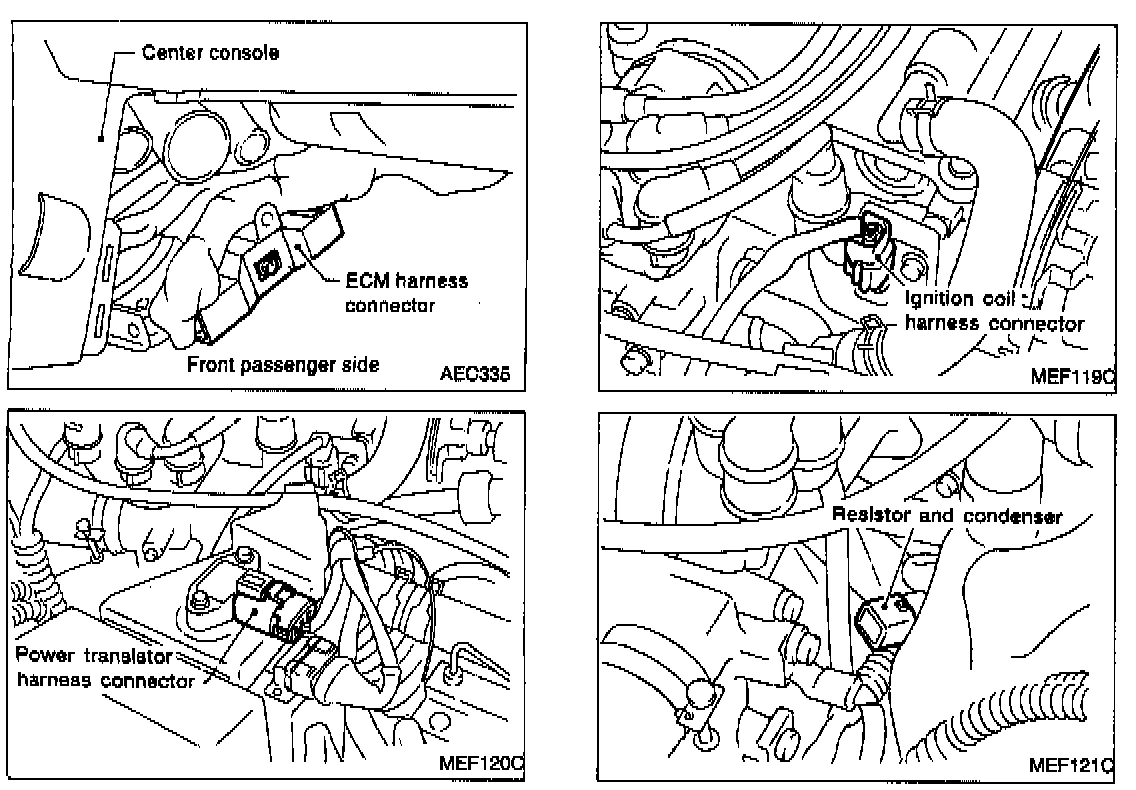

HARNESS LAYOUT

Final Check:

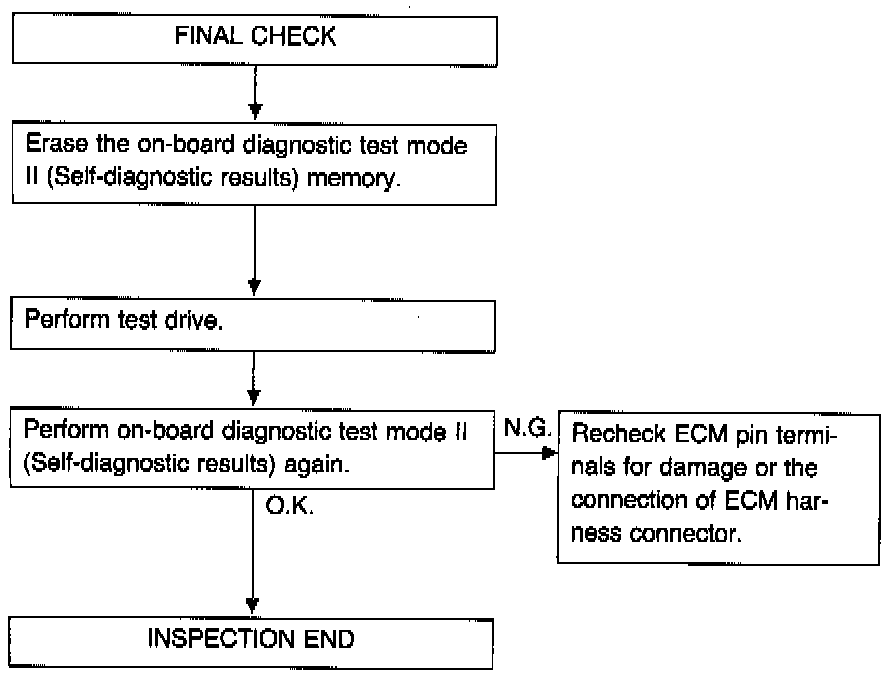

FINAL CHECK
