Passenger Air Bag Module

1. Disarm SRS as described under Air Bag Arming and Disarming.
2. Remove glove compartment lid and glove compartment.

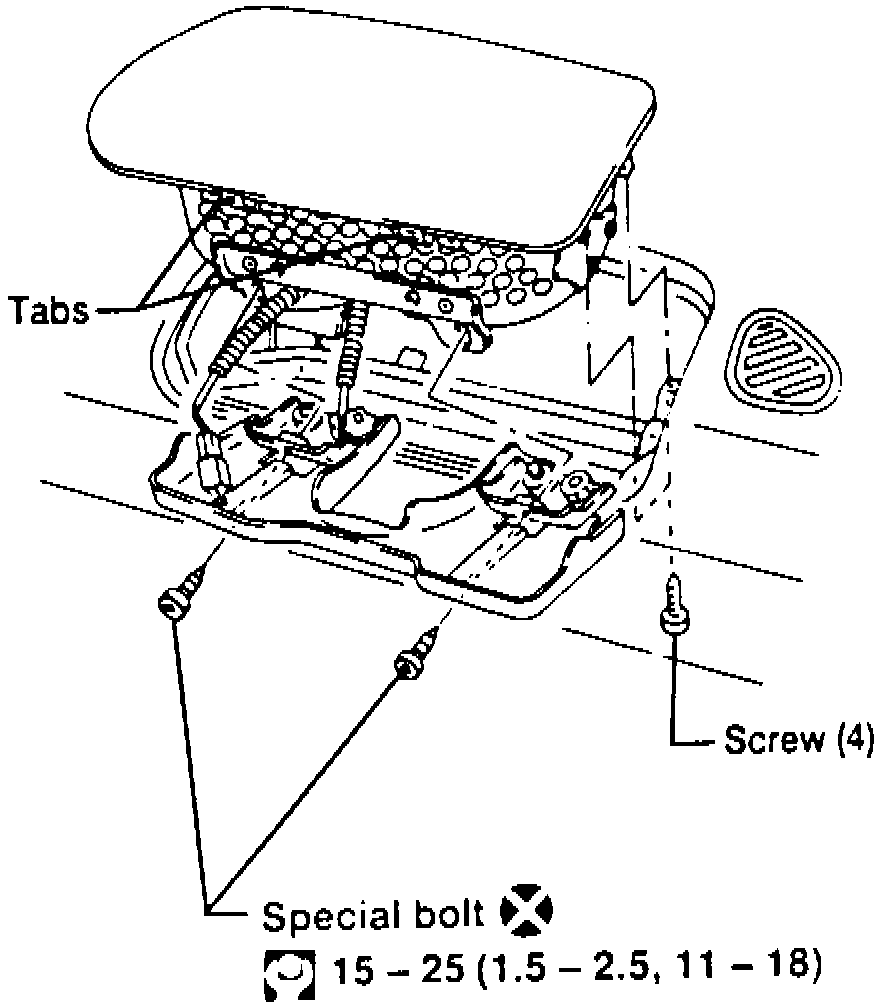

3. Disconnect passengers air bag module connectors.
4. Remove two special bolts from front of passengers air bag module.
5. Remove four screws from left and right sides of passengers air bag module.
6. Remove passenger air bag module by releasing tabs at upper portion of instrument panel.
7. Reverse procedure to install. When installing, ensure module wiring harness is properly routed between air bag module and mounting bracket.
