Impact Sensor: Service and Repair

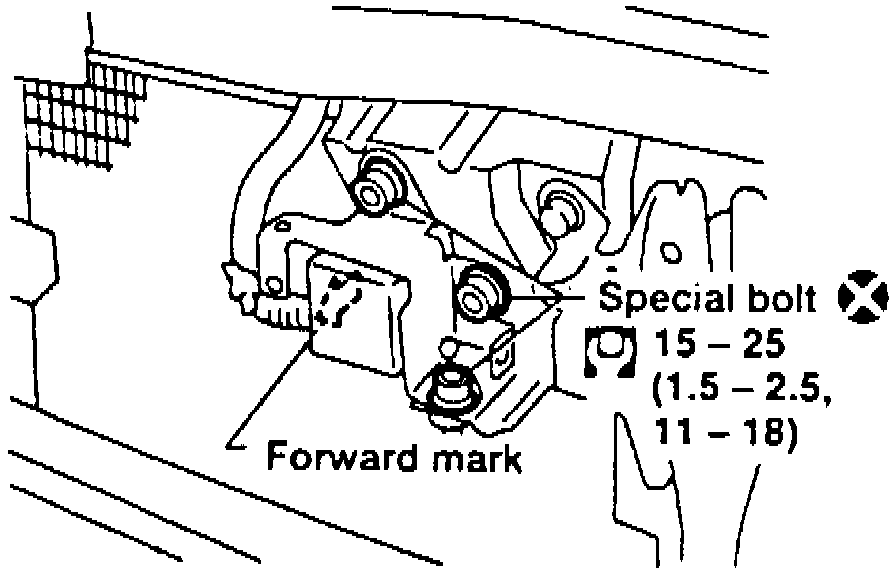

REPLACEMENT, FRONT CRASH ZONE SENSOR

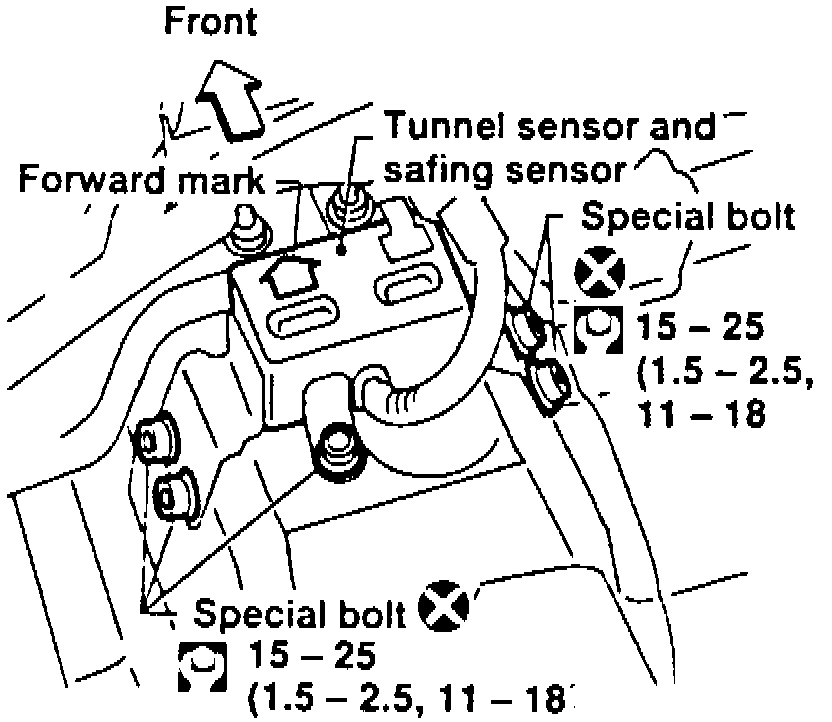

REPLACEMENT, TUNNEL AND SAFING SENSOR

Disarm SRS as described under Air Bag Arming and Disarming. Refer to images to replace front crash zone sensor and tunnel and safing sensor.
