Engine Control Module

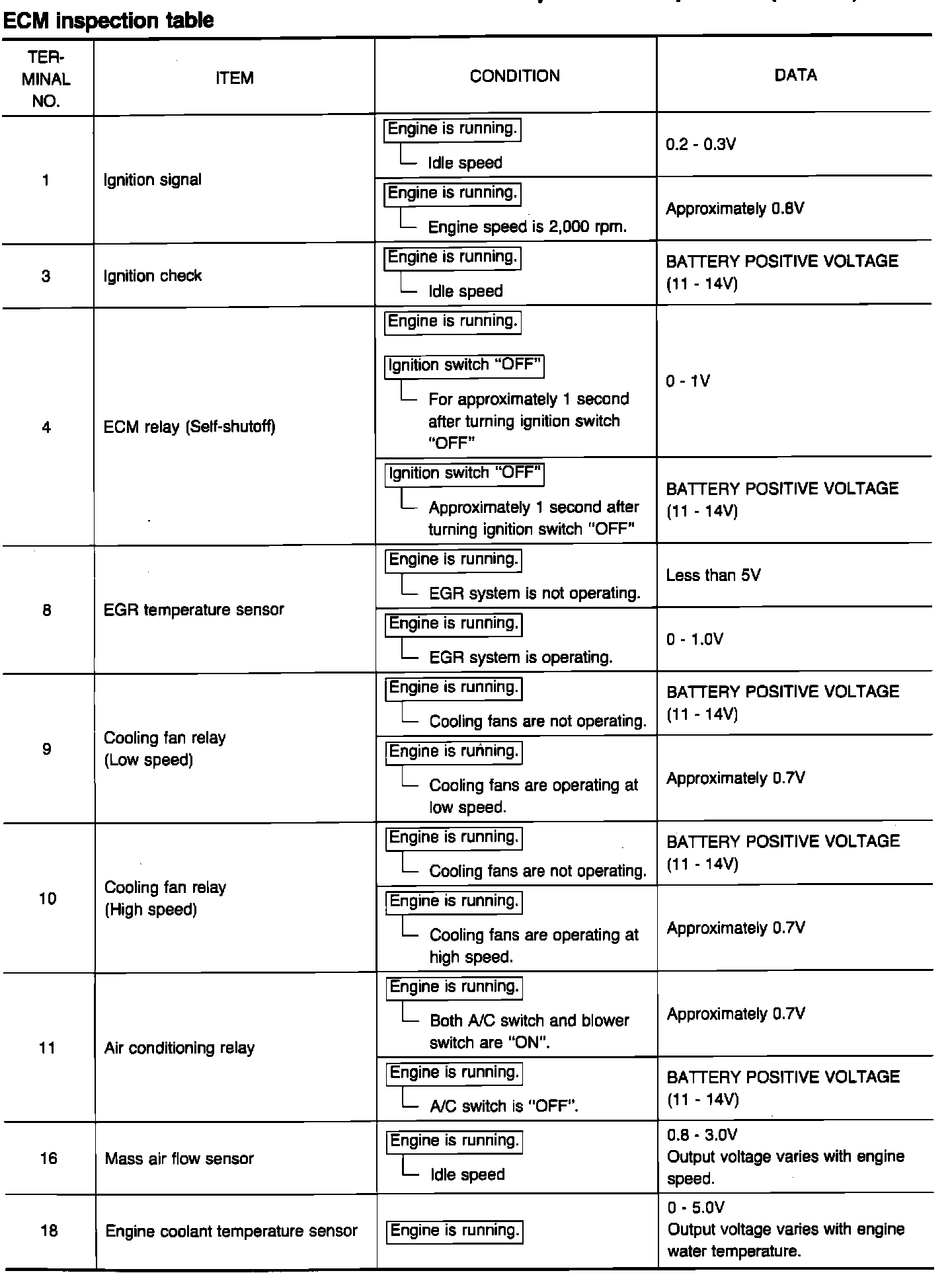

ECM Terminal Inspection Chart:

Pins 1 - 18

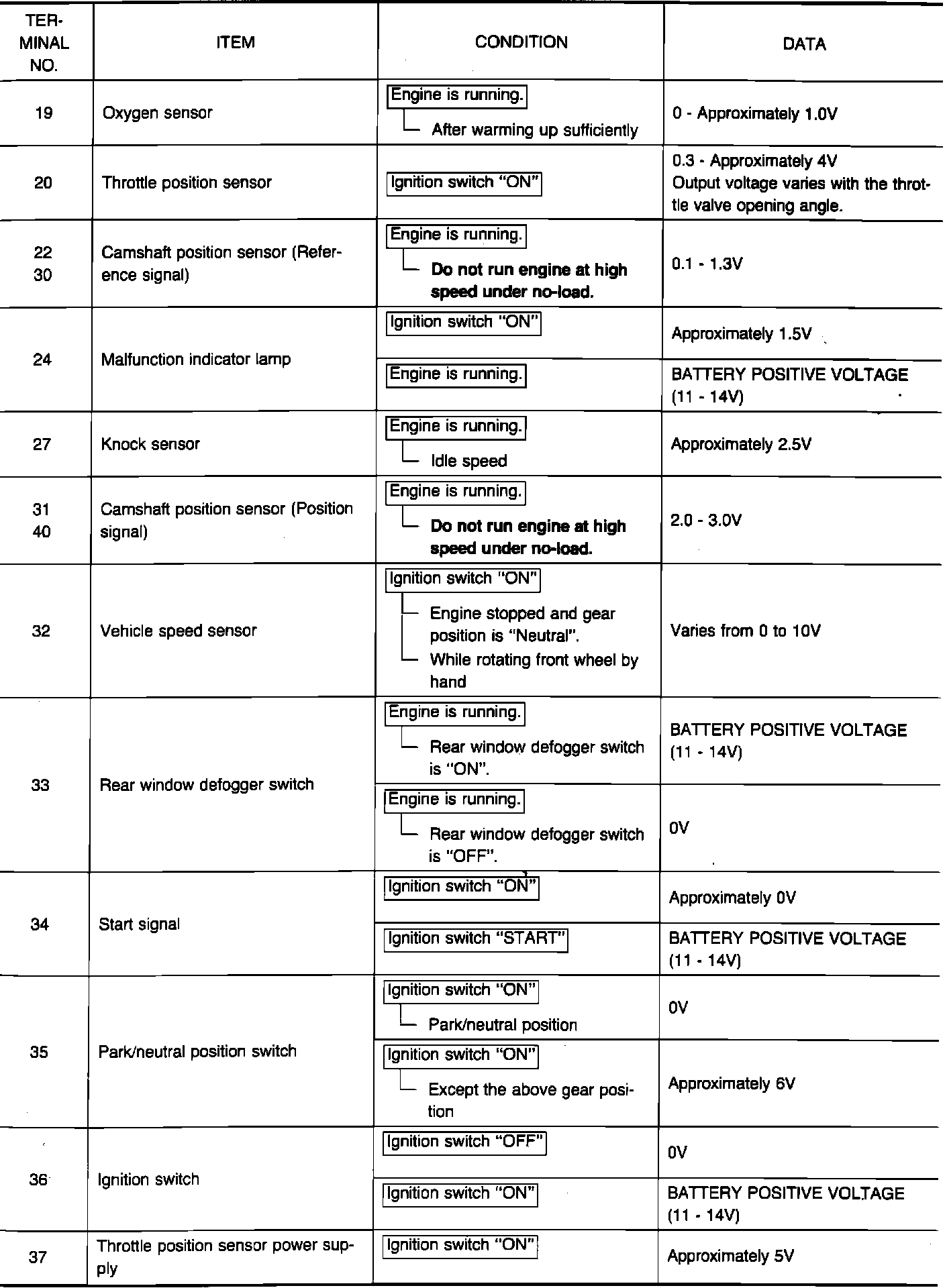

ECM Terminal Inspection Chart:

Pins 19 - 37

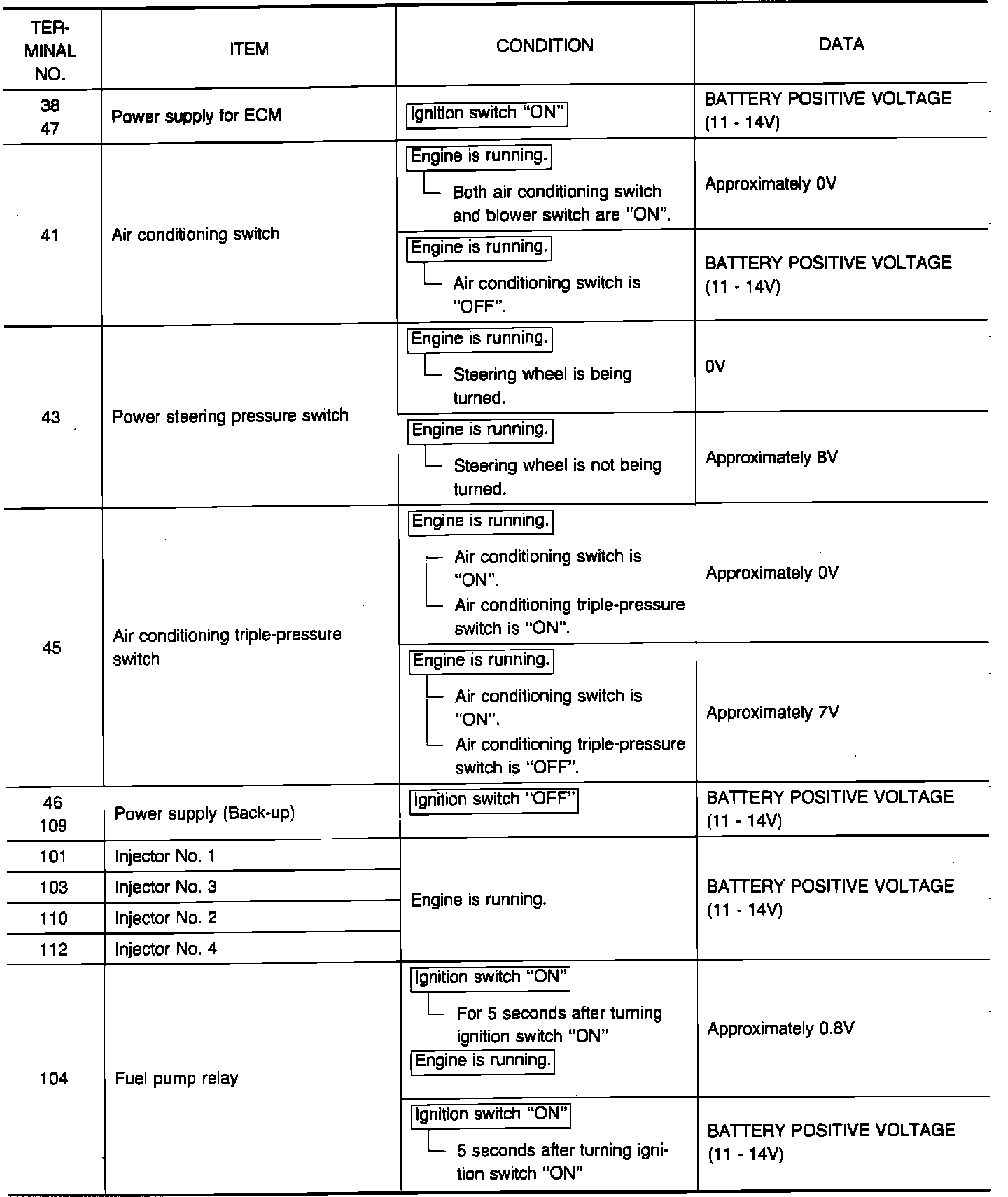

ECM Terminal Inspection Chart:

Pins 38 - 112 (excl. 105)

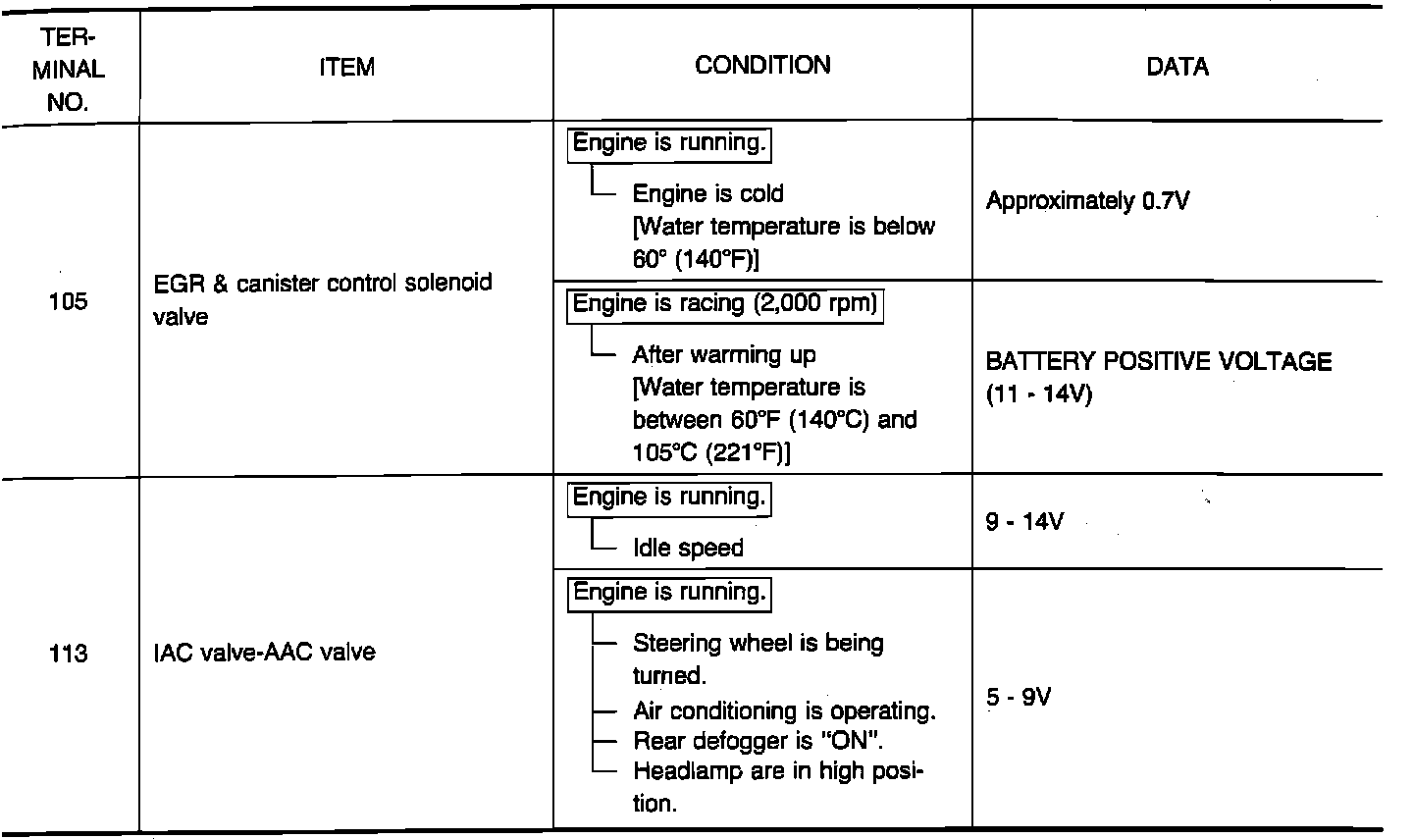

ECM Terminal Inspection Chart:

Pins 105 & 113
