Removal and Installation

Removal

1. Remove engine undercover.
2. Remove drive belt from alternator.
3. Disconnect harness connector.
4. Remove cooling fan lower shroud.

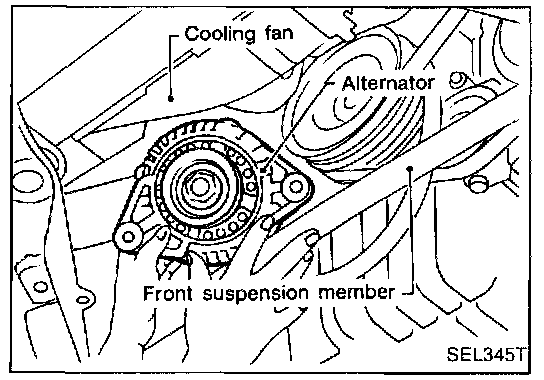

5. Remove alternator.

Installation

To install, reverse the removal procedure.
