Charging System

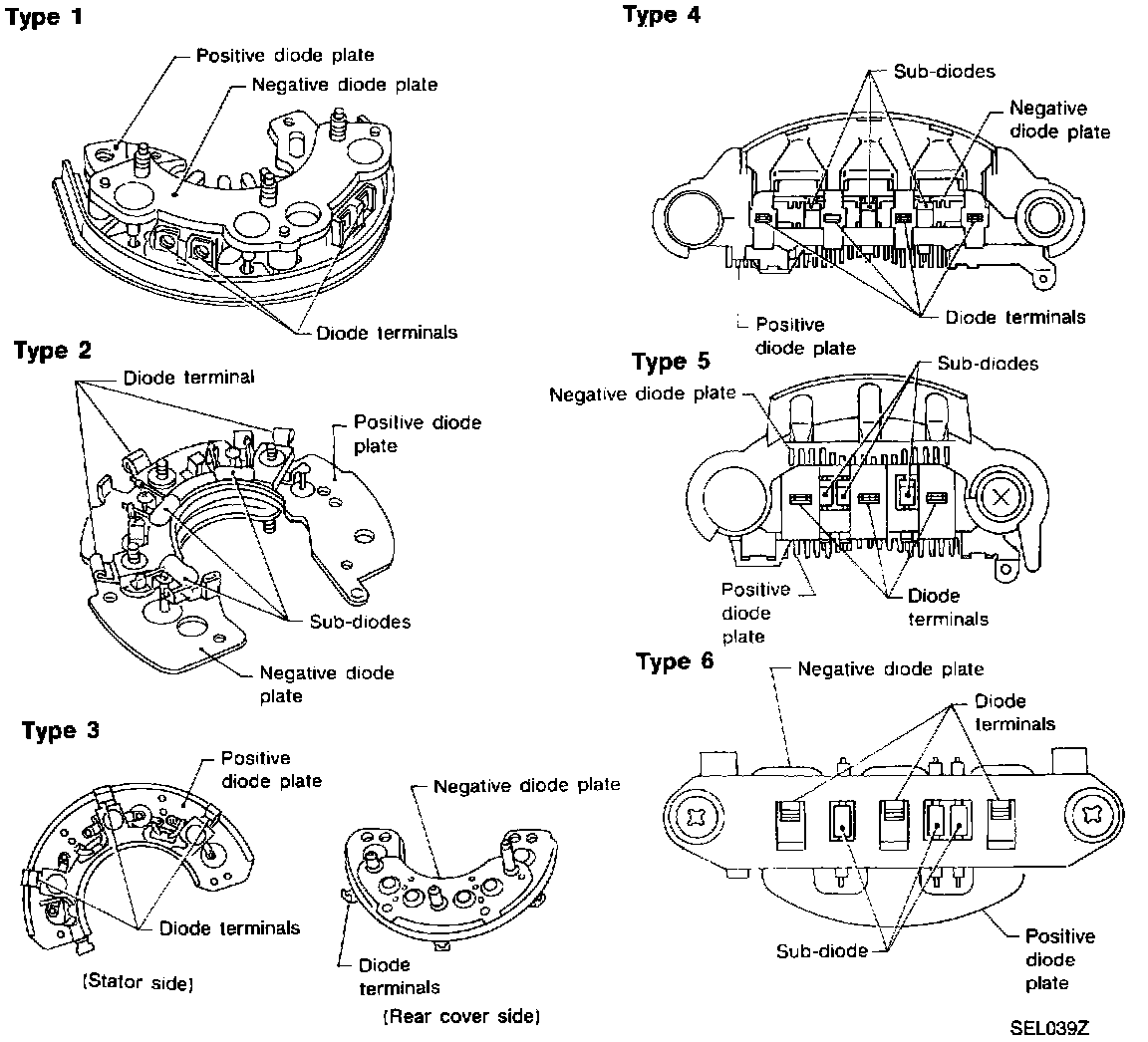

MAIN DIODES
^ in order to check diodes, they must be unsecured from the stator.

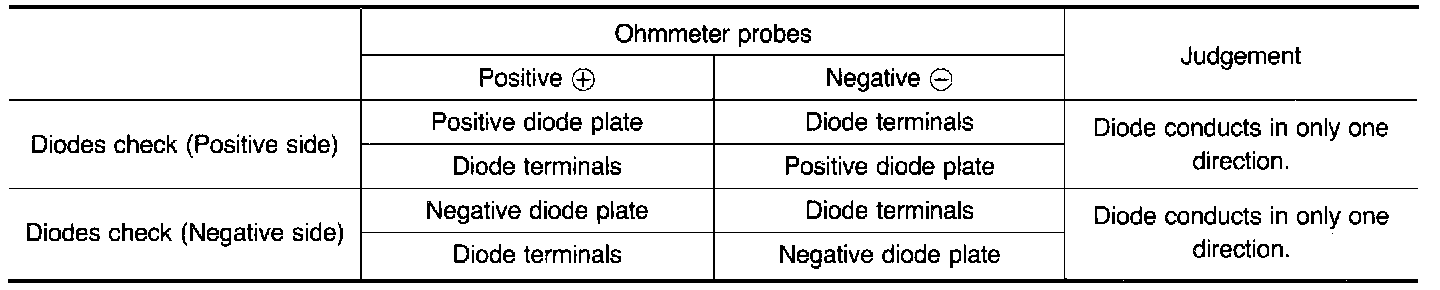

^ Use an ohmmeter to check condition of diodes as indicated in chart.
^ If any of the test results is not satisfactory, replace diode assembly.
