Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
>>
Canada M/T Models
Canada M/T Models

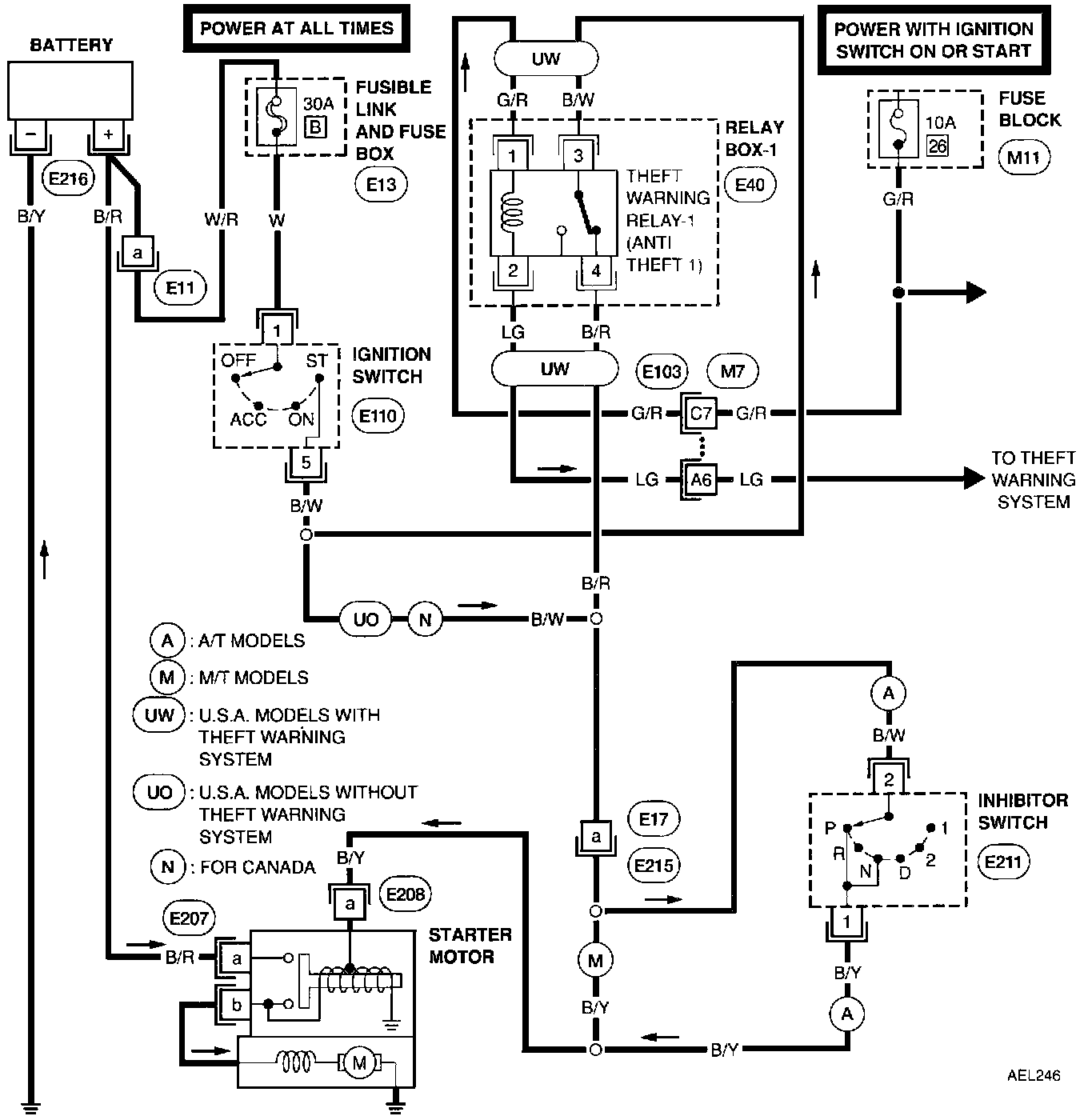

Starting System Wiring Diagram: A/T Models And Canada M/T Models:
