Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Altima L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Electrical Diagrams
>>
M/T Models For USA
M/T Models For USA

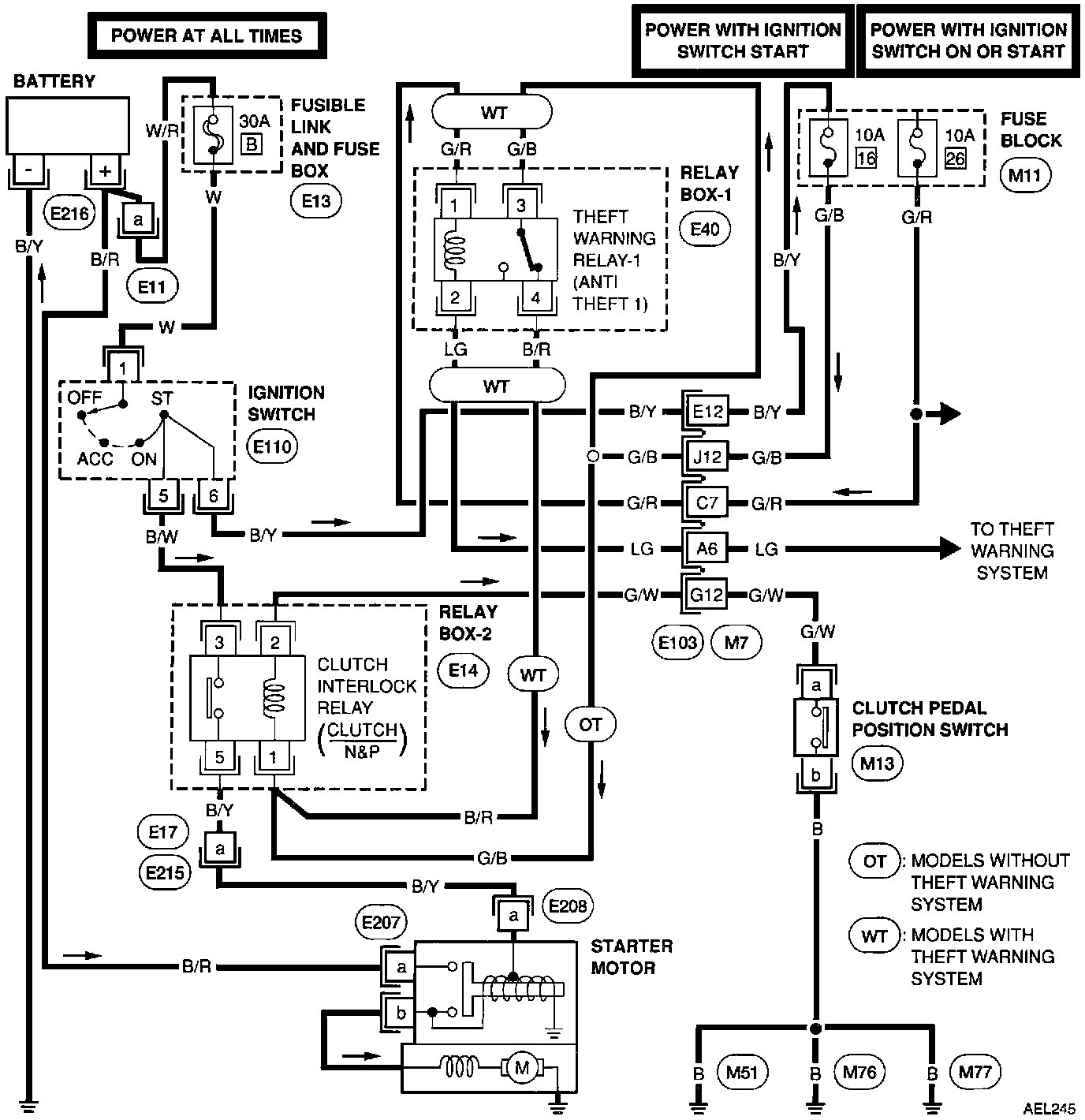

Starting System Wiring Diagram: M/T Models For USA:
