Lower, Rear

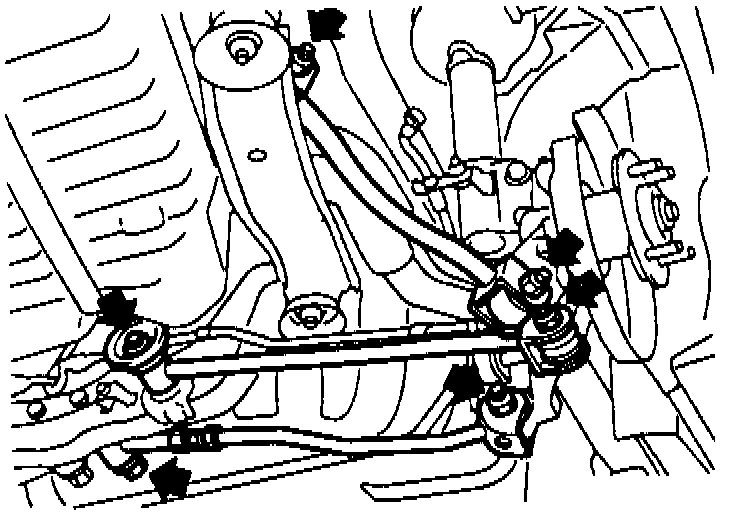

Fig. 6 Parallel & Radius Link Removal:

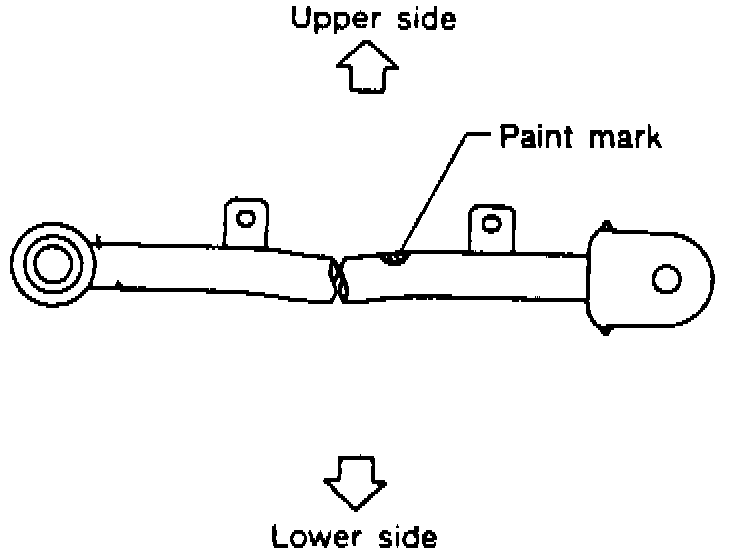

Fig. 7 Front Parallel Link Installation:

1. Raise and support vehicle.
2. Remove parallel and radius link, Fig. 6.
3. Reverse procedure to install, noting the following:
a. When installing front parallel link, ensure paint mark faces in the correct direction, Fig. 7.
b. Final tightening of the parallel and radius link must be done with tires on ground.
c. Check rear wheel alignment.
