Stabilizer Bar: Service and Repair

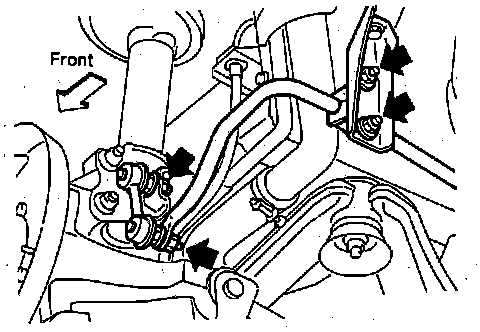

Fig. 7 Removing Stabilizer Bar:

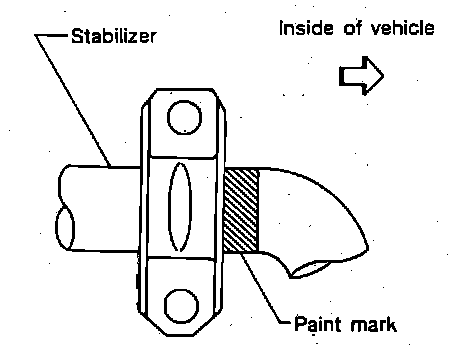

Fig. 8 Installing Stabilizer Bar:

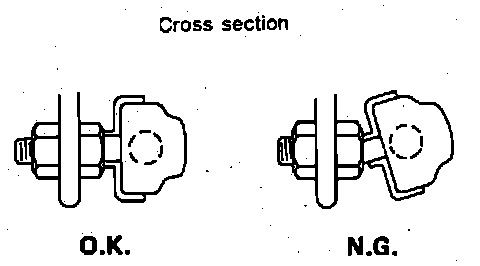

Fig. 9 Stabilizer Bar Joint Socket Position:

1. Raise and support vehicle.
2. Remove stabilizer bar, Fig. 7.
3. Reverse procedure to install, noting the following:
a. Ensure paint marks are positioned as shown in Fig. 8.
b. Ensure stabilizer ball joint socket is properly placed, Fig. 9.
