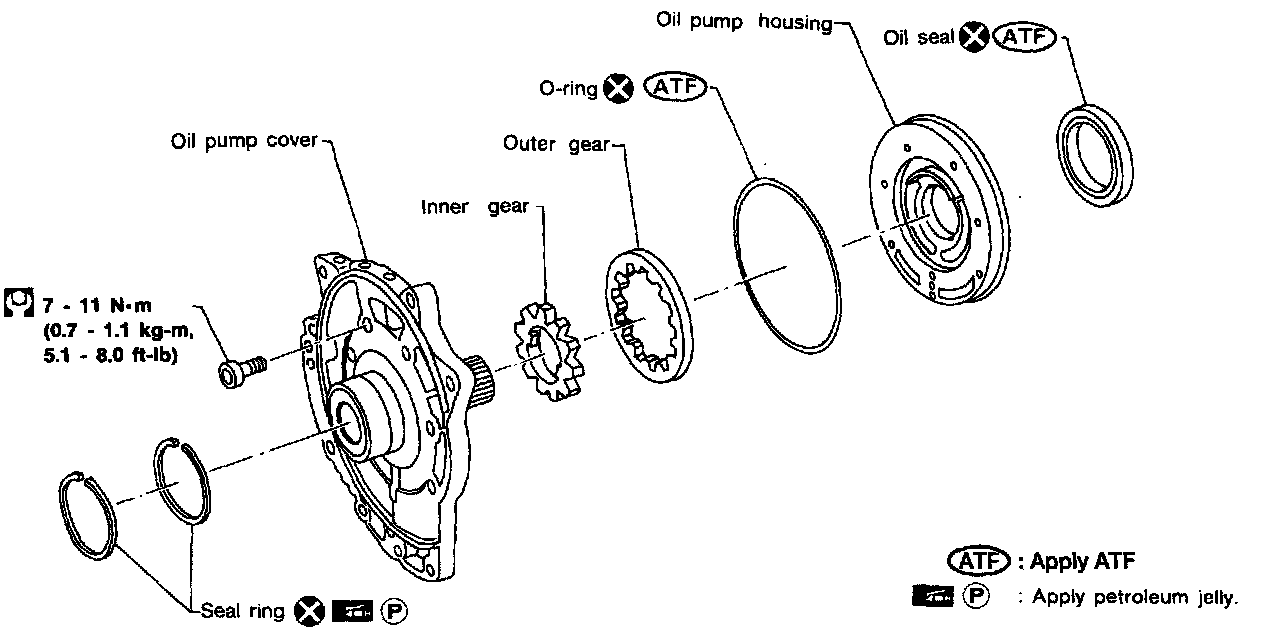

Oil Pump
OIL PUMP
Disassembly

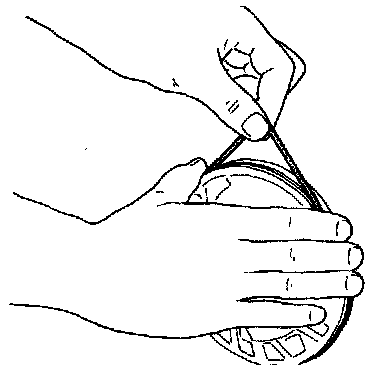

1. Remove seal rings by undoing hooks.

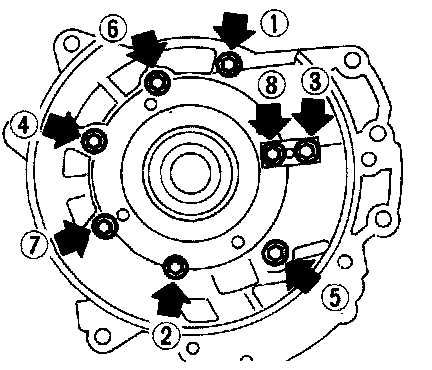

2. Loosen bolts in a crisscross pattern and remove oil pump cover.
3. Remove inner and outer gear from oil pump housing.
4. Remove 0-ring from oil pump housing.

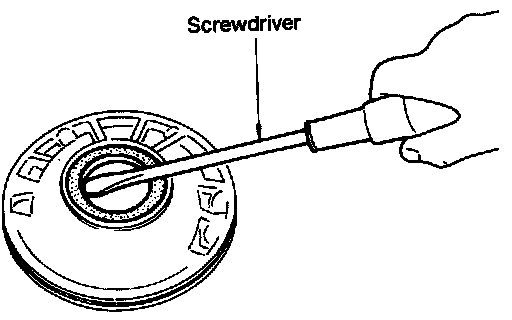

5. Remove oil pump housing oil seal.
Inspection
Oil pump housing, oil pump cover, inner gear and outer gear
- Check for wear or damage.

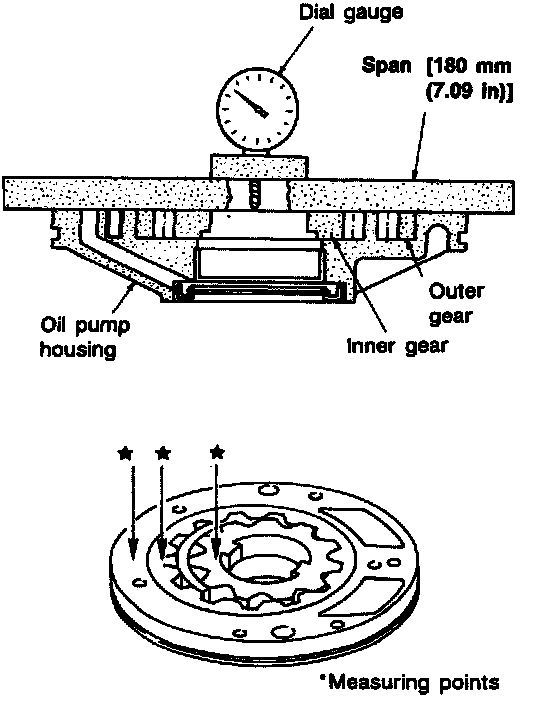

Side clearance
- Measure side clearance between end of oil pump housing and inner and outer gears in at least four places along their circumferences. Maximum measured values should be within specified ranges.
Standard clearance: 0.030-0.050 mm (0.0012-0.0020 in)
- If clearance is less than standard, select inner and outer gear as a set so that clearance is within specifications.
Inner and outer gear: Refer to Specifications.
- If clearance is more than standard, replace whole oil pump assembly except oil pump cover.

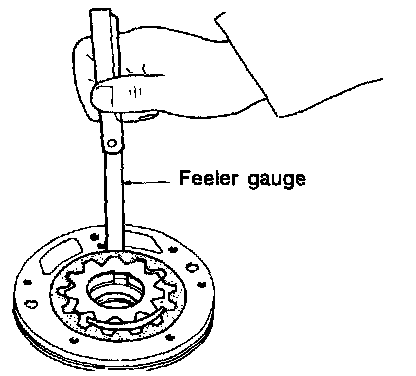

- Measure clearance between outer gear and oil pump housing.
Standard clearance: 0.111 - 0.181 mm (0.0044-0.0071 in)
Allowable limit: 0.181 mm (0.0071 in)
- If not within allowable limit, replace whole oil pump assembly except oil pump cover.

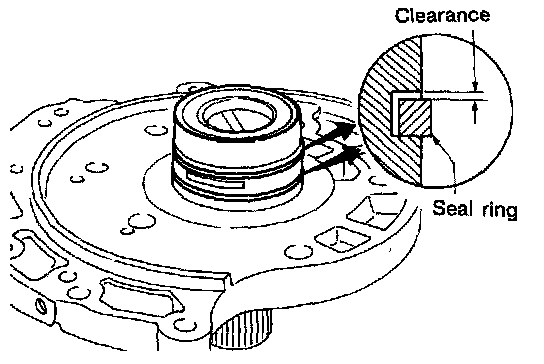

Seal ring clearance

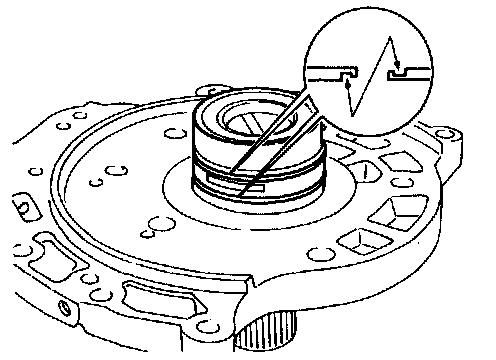

- Measure clearance between seal ring and ring groove.
Standard clearance: 0.036-0.176 mm (0.0014-0.0069 in)
Allowable limit: 0.176 mm (0.0069 in)
- If not within allowable limit, replace oil pump cover assembly.
Assembly

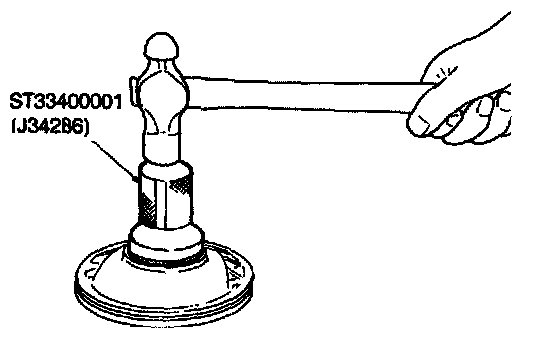

1. Install oil seal on oil pump housing.
2. Install 0-ring on oil pump housing.
- Apply ATF to O-ring.

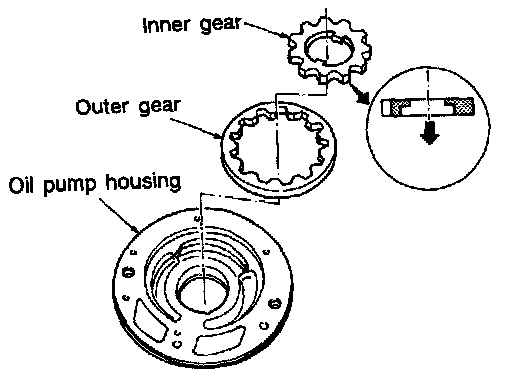

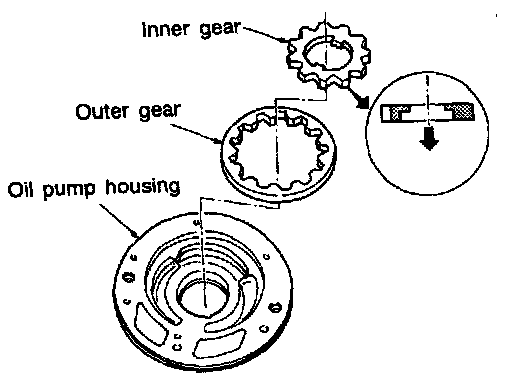

3. Install inner and outer gears on oil pump housing.
- Be careful of direction of inner gear.
4. Install oil pump cover on oil pump housing.

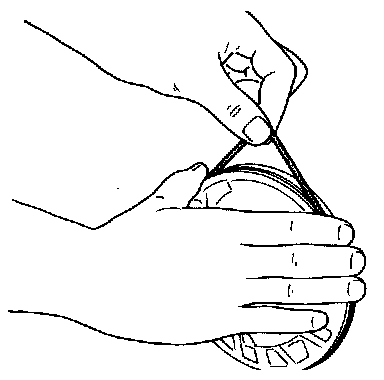

a. Wrap masking tape around splines of oil pump cover assembly to protect seal. Position oil pump cover assembly on oil pump housing assembly, then remove masking tape.

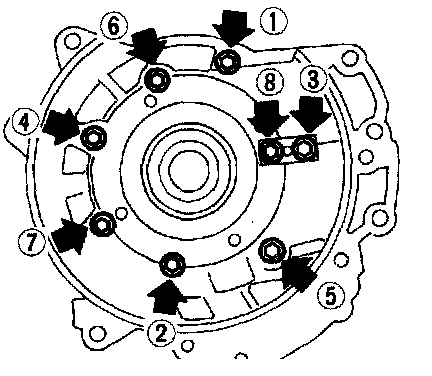

b. Tighten bolts in a crisscross pattern.

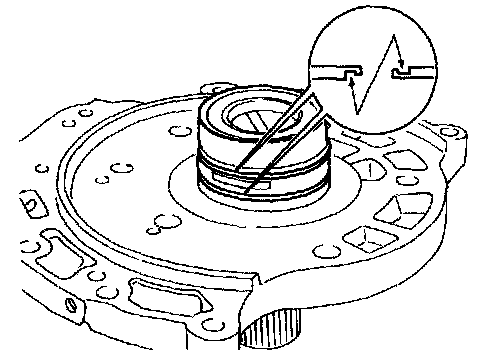

5. Install new seal rings carefully after packing ring groove with petroleum jelly and attach hooks.
- Do not spread gap of seal ring excessively while installing. The ring may be deformed.
