Shift Lock Solenoid

Shift Lock Solenoid

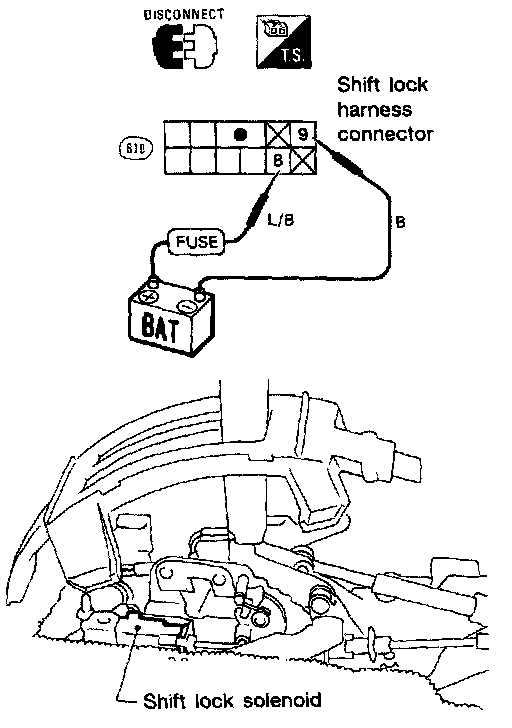

- Check operation by applying battery positive voltage to shift lock harness connector.
