Initial Inspection and Diagnostic Overview

Shift Lock Control Module Inspection
- Measure voltage between each terminal and terminal (8) by following "Shift Lock Control Module Inspection Table".




- Pin connector terminal layout.

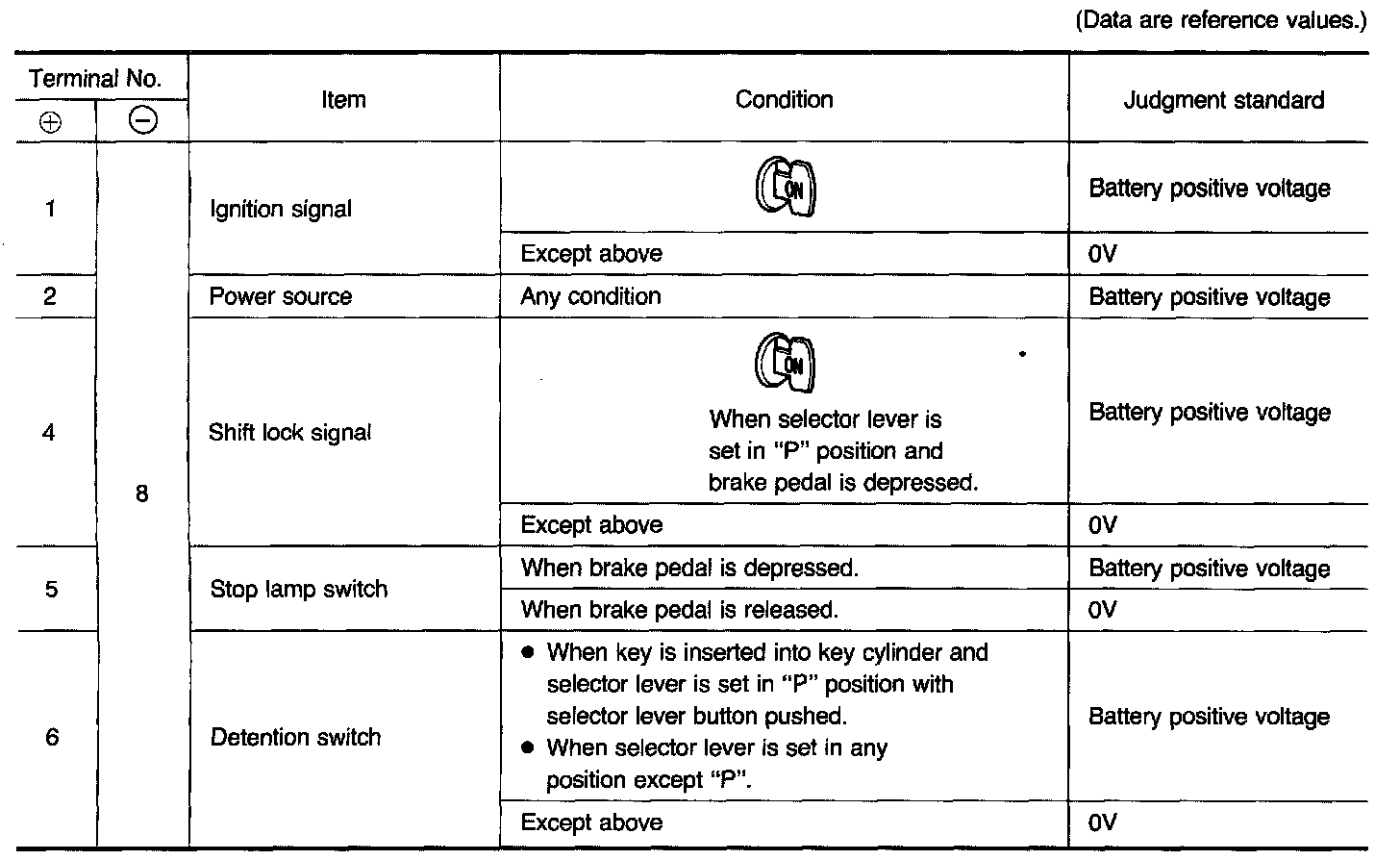

Shift Lock Control Module Inspection Table
