Home >> Nissan-Datsun >> 1994 >> Altima L4-2.4L (KA24DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Dropping Resistor

Dropping Resistor

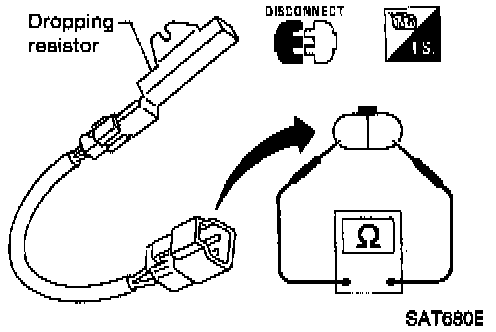

DROPPING RESISTOR
- Check resistance between two terminals.

Resistance: 11.2 - 12.8 ohms
