Hydraulic Control Assembly - Antilock Brakes: Service and Repair

Actuator Removal and Installation






1. Disconnect 4 connectors and brake tubes.

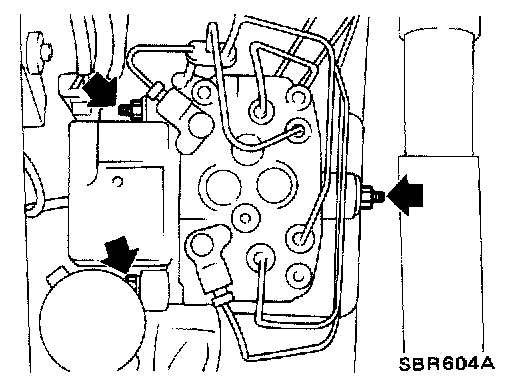

2. Remove 3 nuts fixing actuator to bracket.
3. Installation is reverse of removal.
4. Bleed actuator.
