Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Test Procedure 7
Diagnostic Test Procedure 7

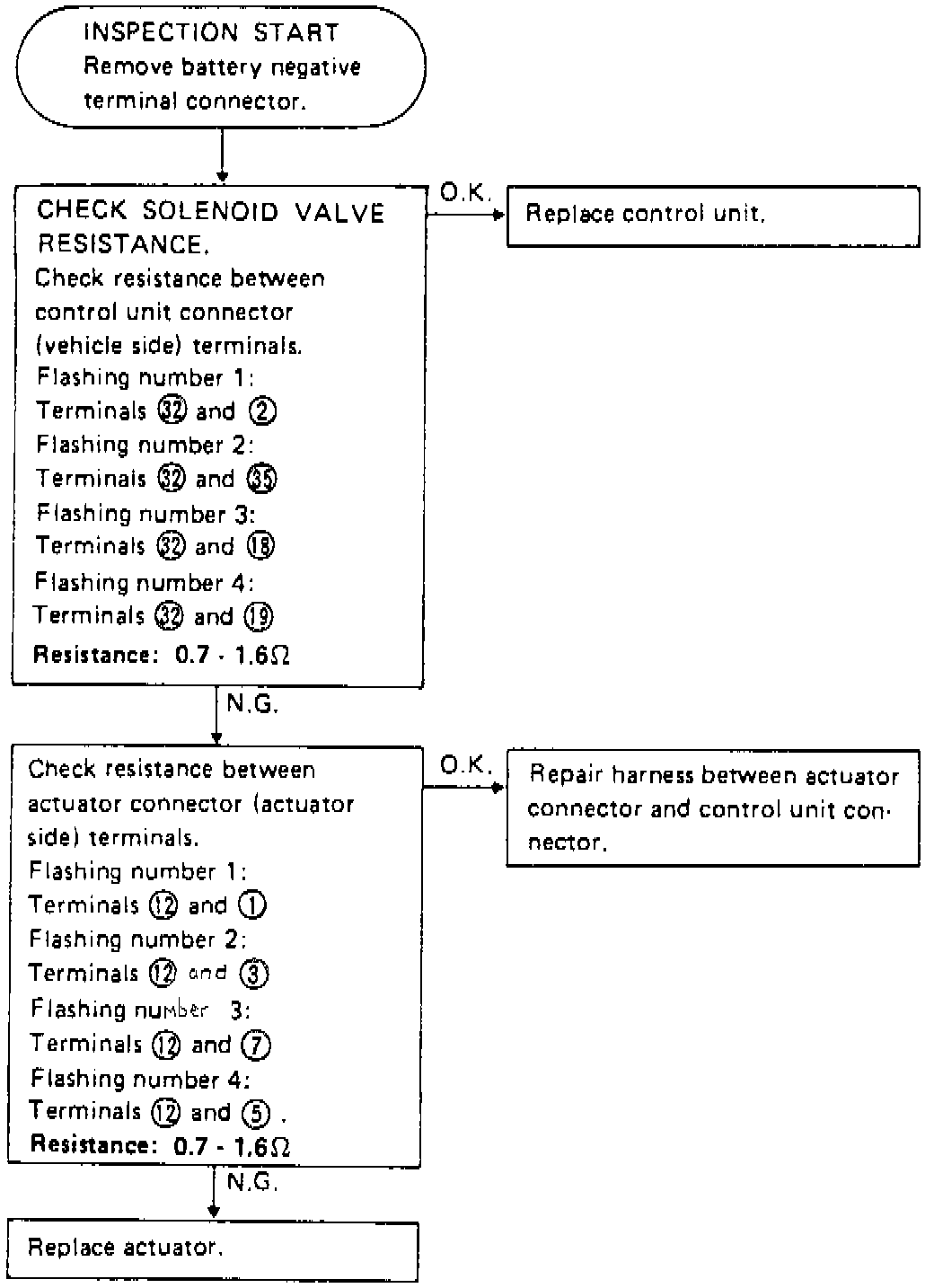

Fig. 82 Test 7: Actuator Solenoid:
