Parking Brake System: Adjustments

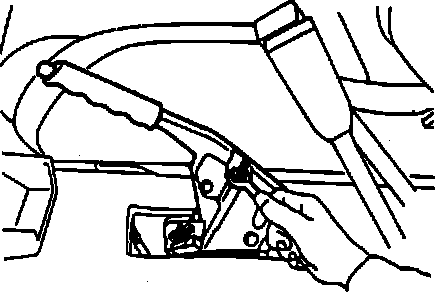

Fig. 9 Parking Brake Adjustment.:

1. Pull parking brake lever with a force of 44 lbs. and ensure lever travels 9-11 notches.
2. Rotate adjuster, Fig. 11 until proper stroke is obtained, then tighten locknut.
