Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Passenger Compartment
Passenger Compartment

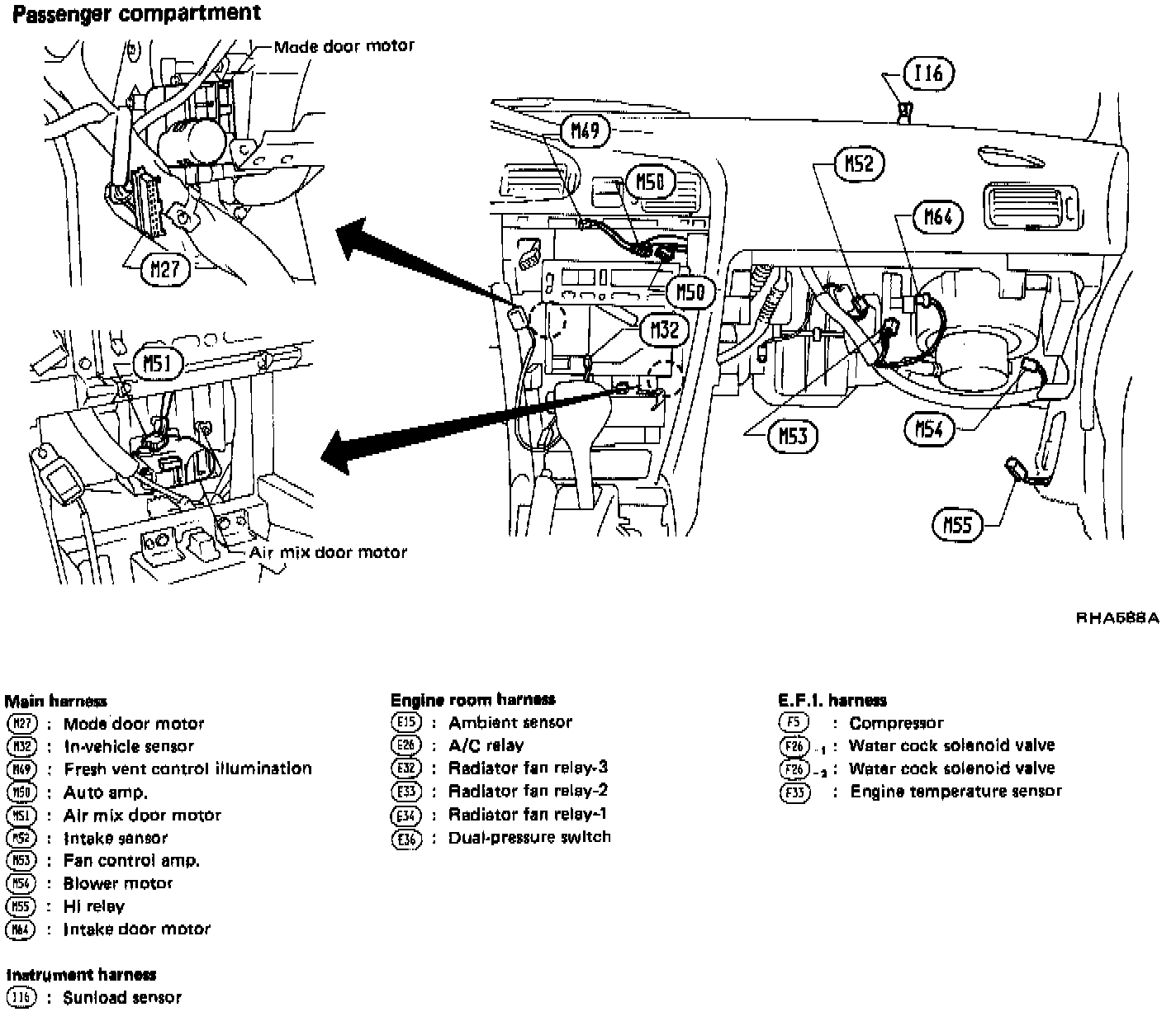

Harness Layout - Auto A/C:
