Diesel Data: Automotive Repair
Home >> Nissan-Datsun >> 1994 >> Maxima V6-2960cc 3.0L DOHC (VE30DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems

Antitheft and Alarm Systems

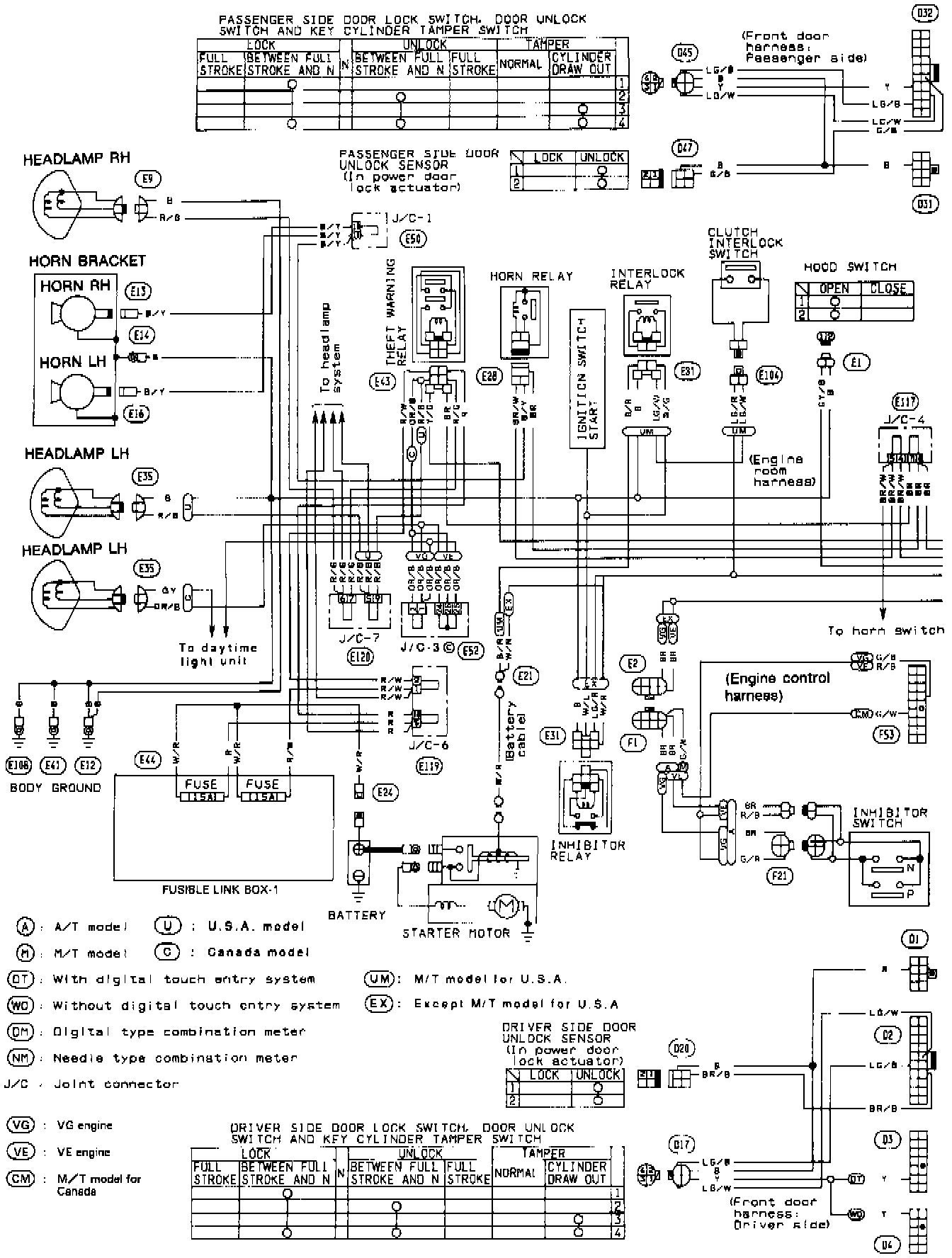

Theft Warning System:

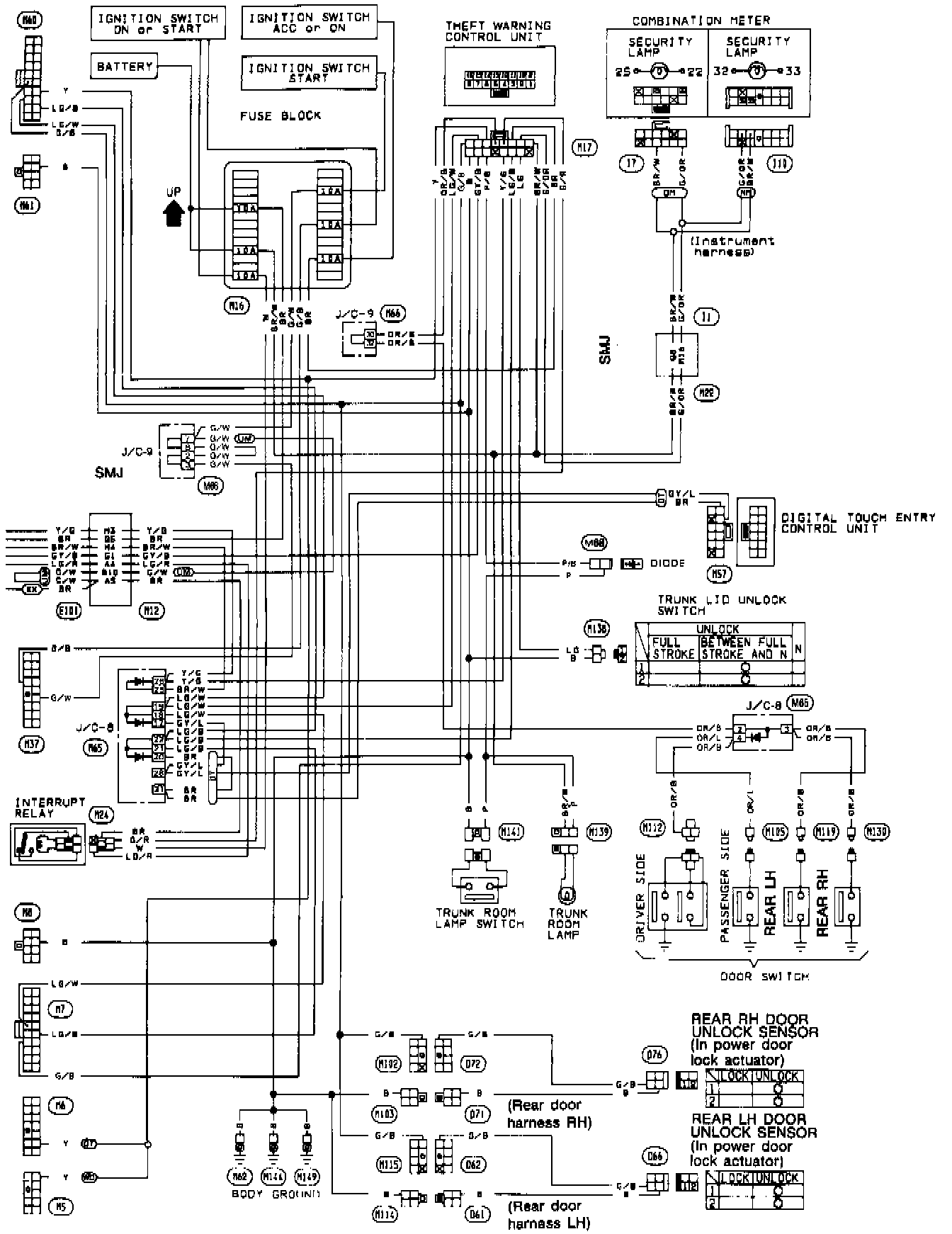

Theft Warning System:
