Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Automatic Air Conditioning
Automatic Air Conditioning

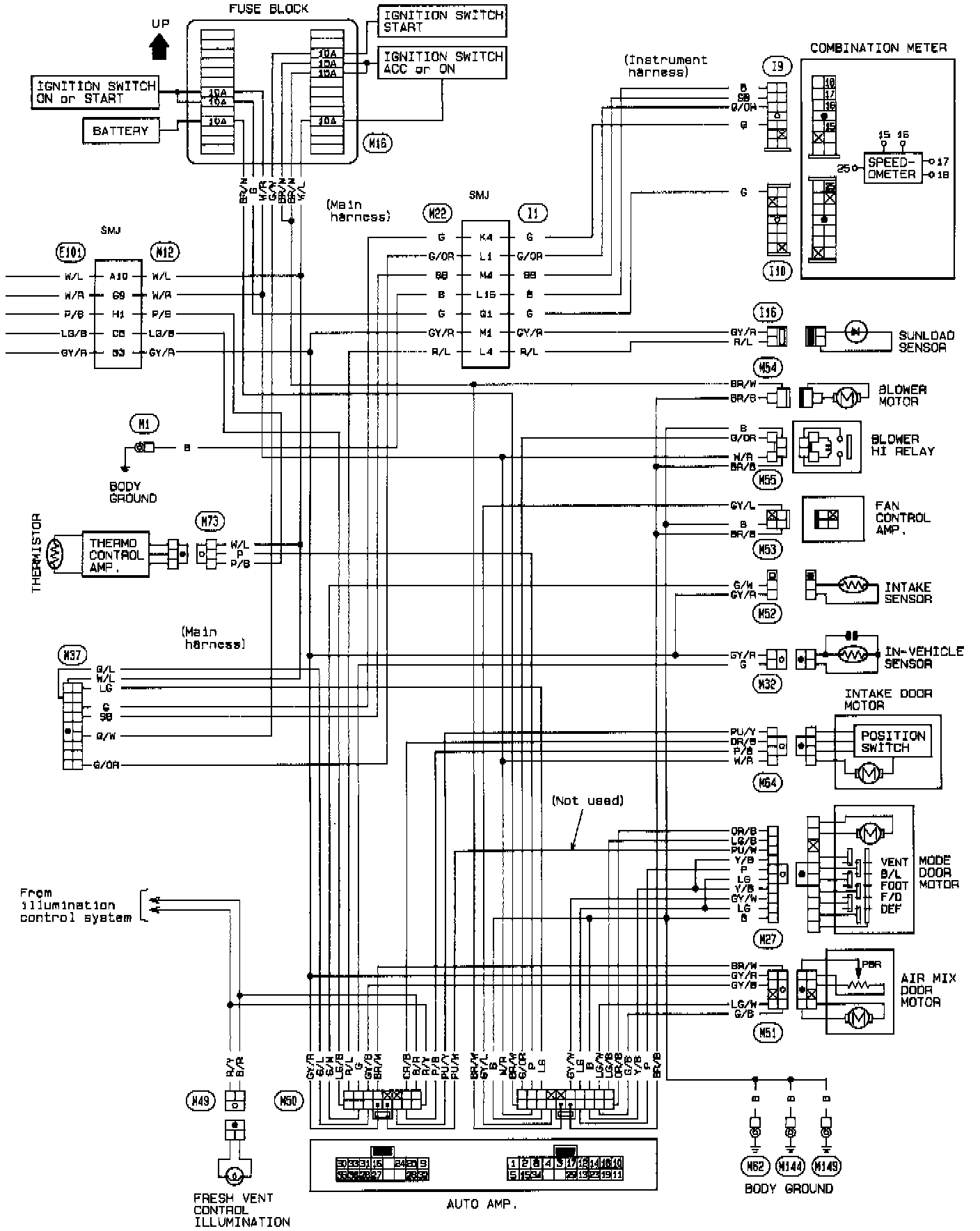

Auto Air Conditioner:
Auto Air Conditioner:
