Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
Trunk / Liftgate

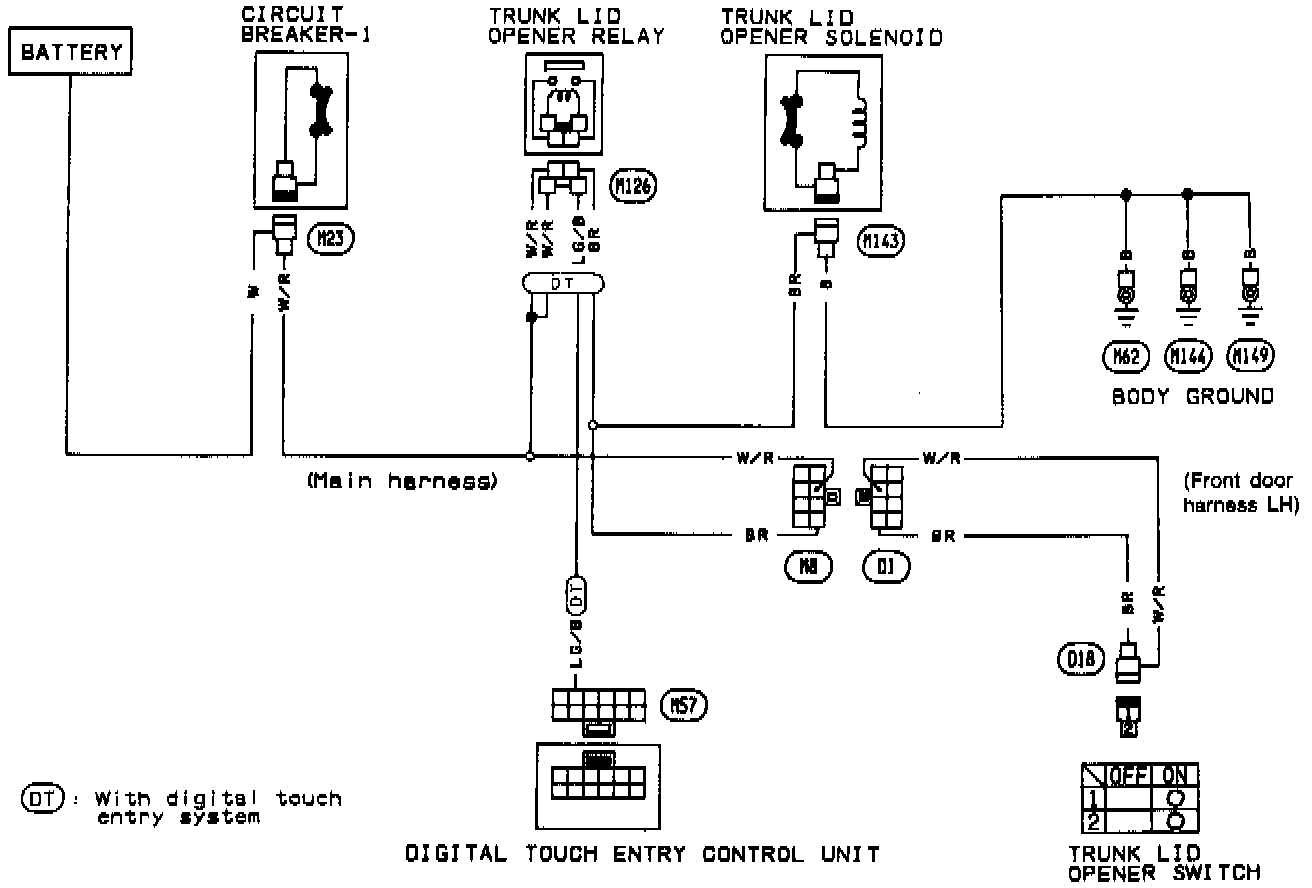

Trunk Lid Opener Wiring Diagram:
