Air Conditioning Switch: Testing and Inspection

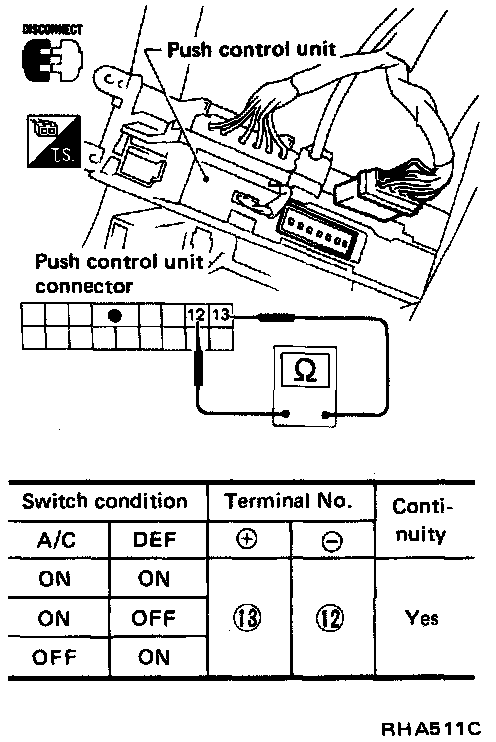

A/C Switch Inspection:

Check continuity between terminals at each switch position.
