Compressor Clutch: Testing and Inspection

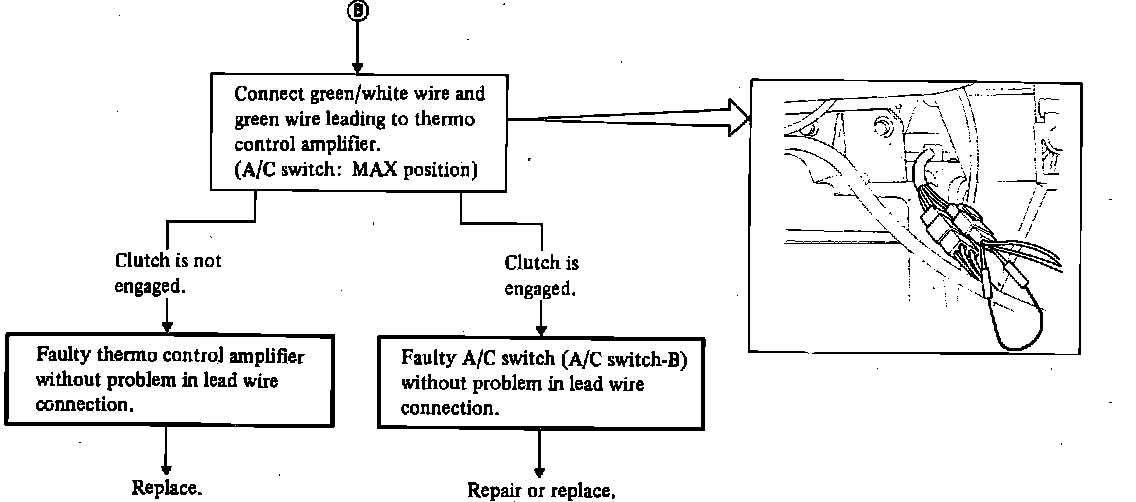

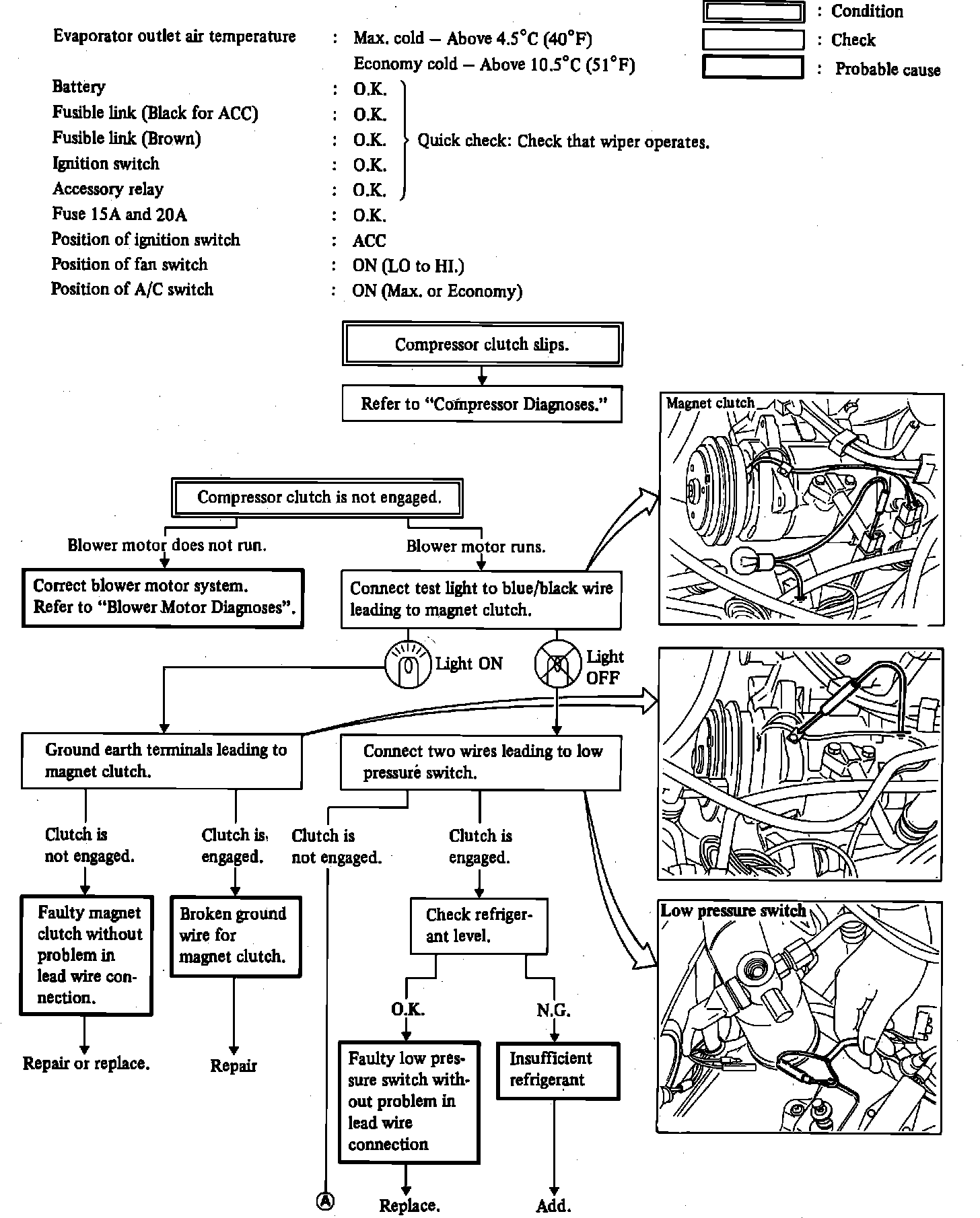

Fig. 27 Compressor clutch diagnosis:



Fig. 27 Compressor clutch diagnosis:



Fig. 27 Compressor clutch diagnosis:
