Removal and Installation

Removal and Installation

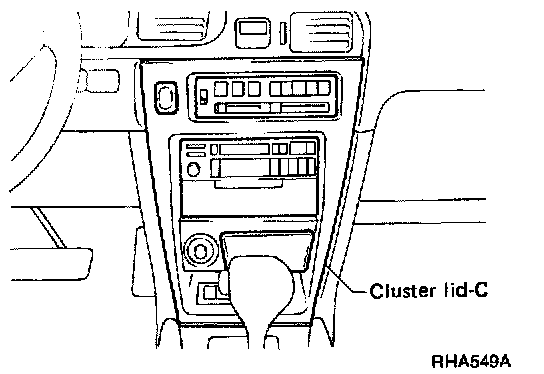

1. Remove cluster lid C.





2. Remove audio (radio).

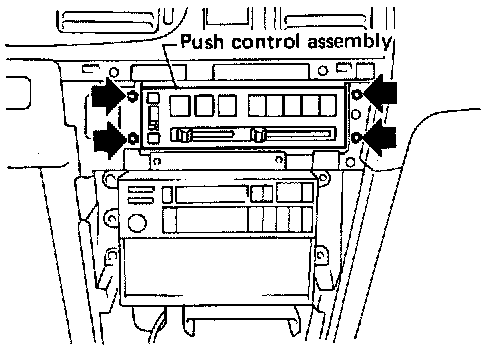

3. Remove four screws of push control unit.
4. Remove temperature control cable.
5. Remove fresh vent door cable.
6. Disconnect push control unit harness connectors.
7. Remove push control unit.
8. Installation is in the reverse order of removal.
