Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Description and Operation
>>
Manual
>>
Fresh Vent System
Fresh Vent System

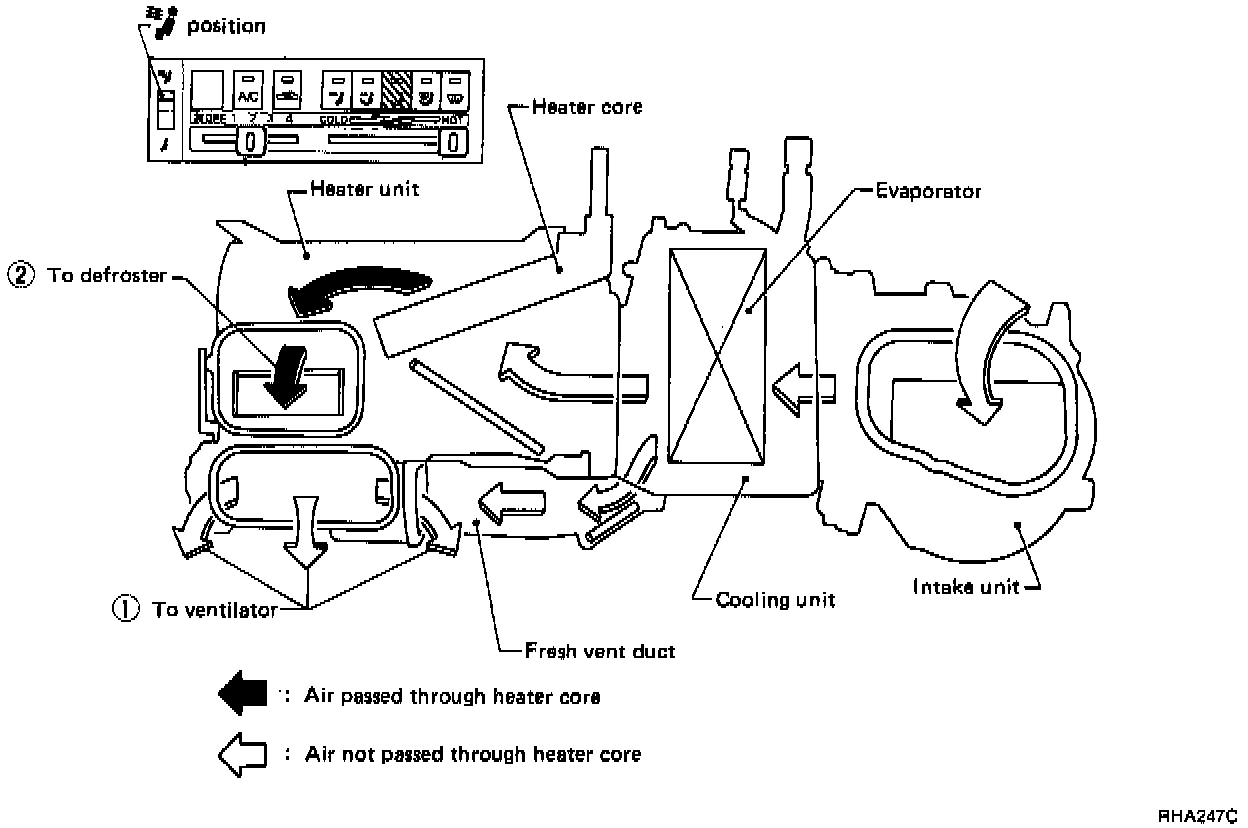

Air Flow - Fresh Vent System:

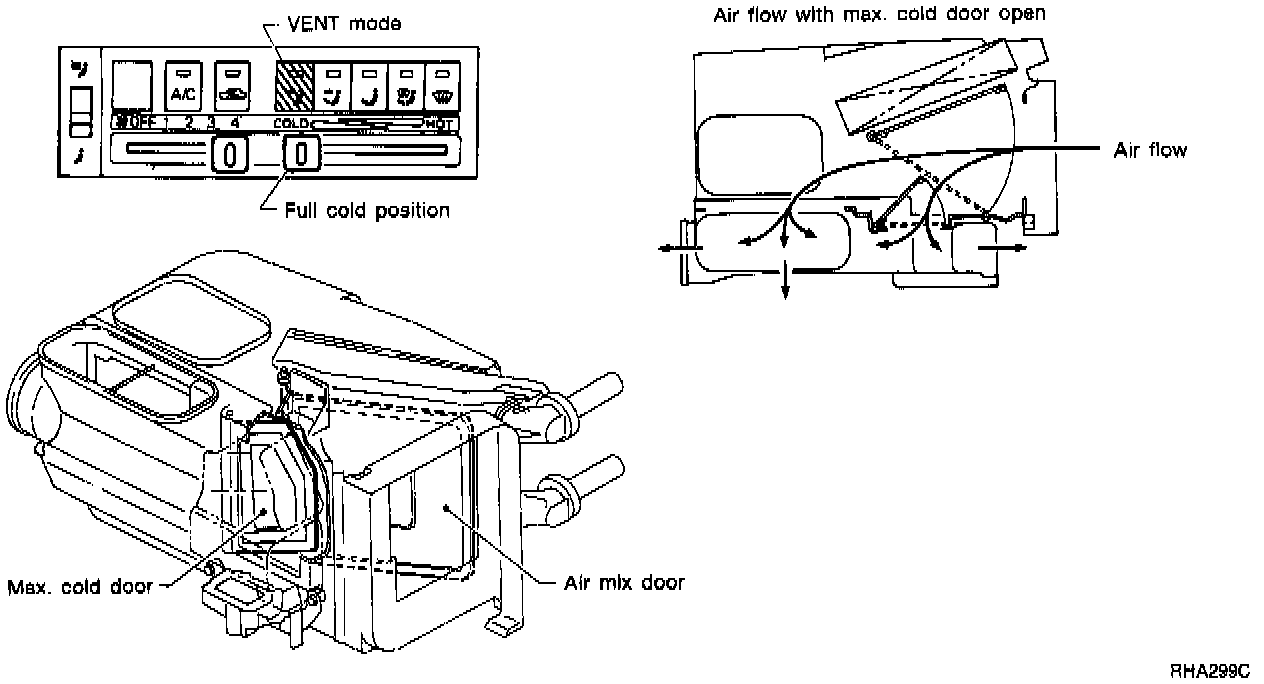

Air Flow - Max. Cold Door Operation System:
