Nissan-Datsun
>>
1994
>>
Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Exploded Views
>>
Air Flow and Ducting
>>
Auto A/C
Auto A/C

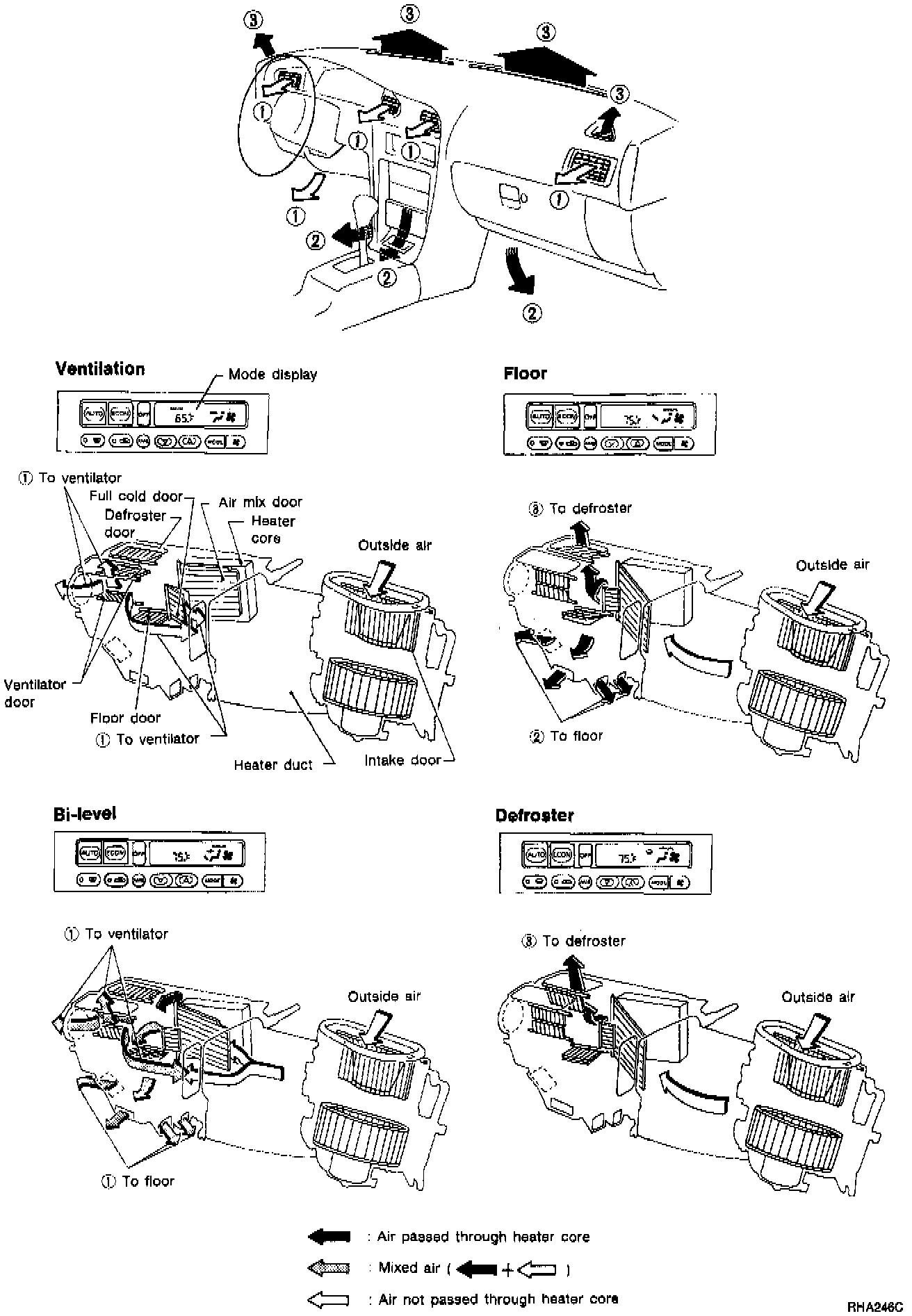

Air Flow - Auto A/C:
