Heater Control Valve Cable: Adjustments

Temperature Control Cable Inspection:

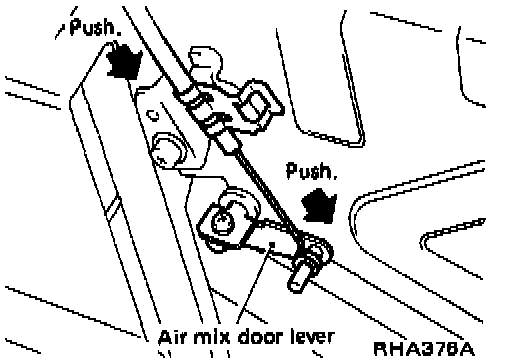

^ Clamp the cable while pushing cable outer and air mix door lever in direction of arrow.
After positioning control cable, check it operates properly.
