Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Procedures
>>
Manual A/C
>>
Diagnostic Procedure 4
Diagnostic Procedure 4

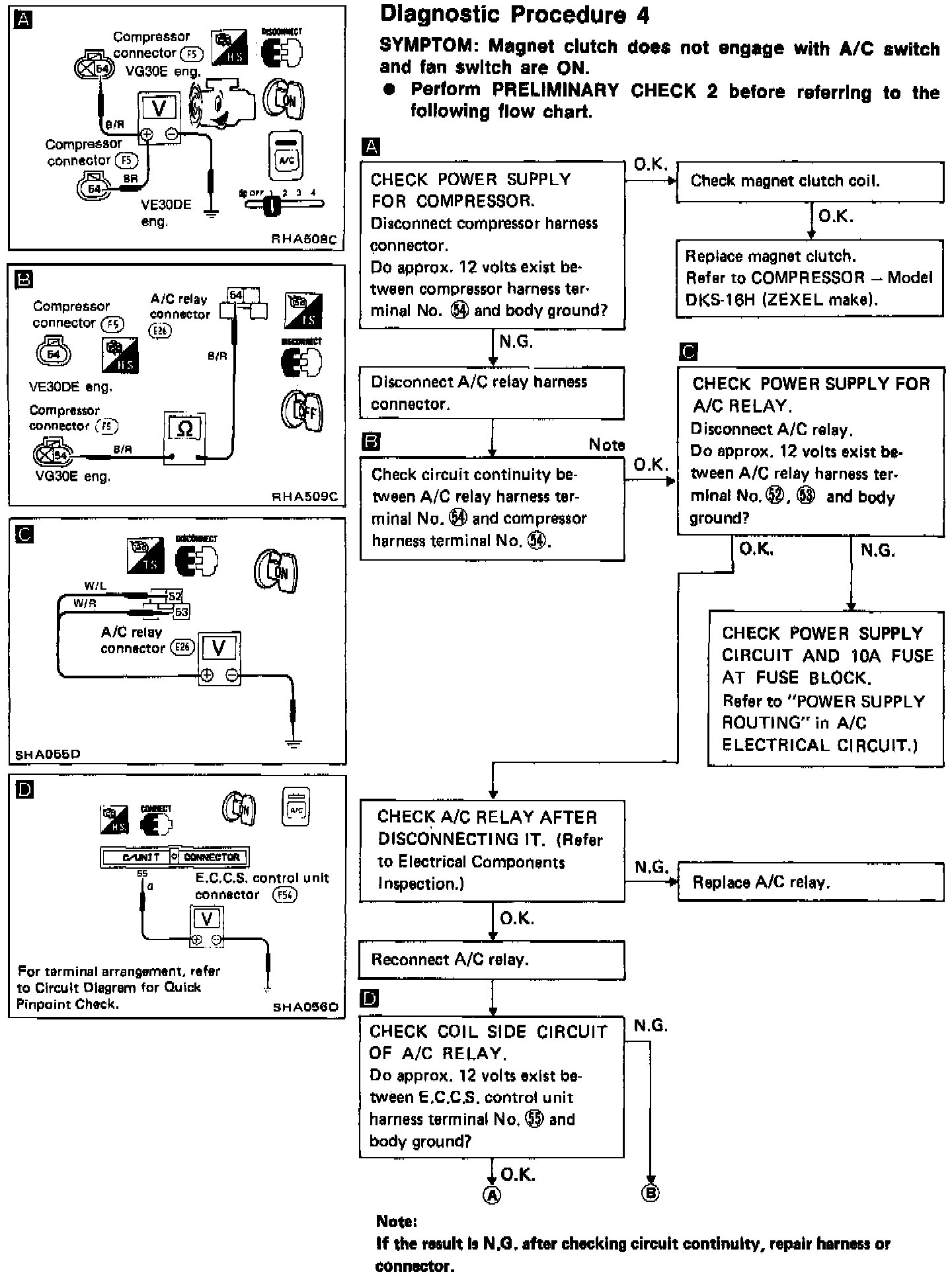

Diagnostic Procedure 4:

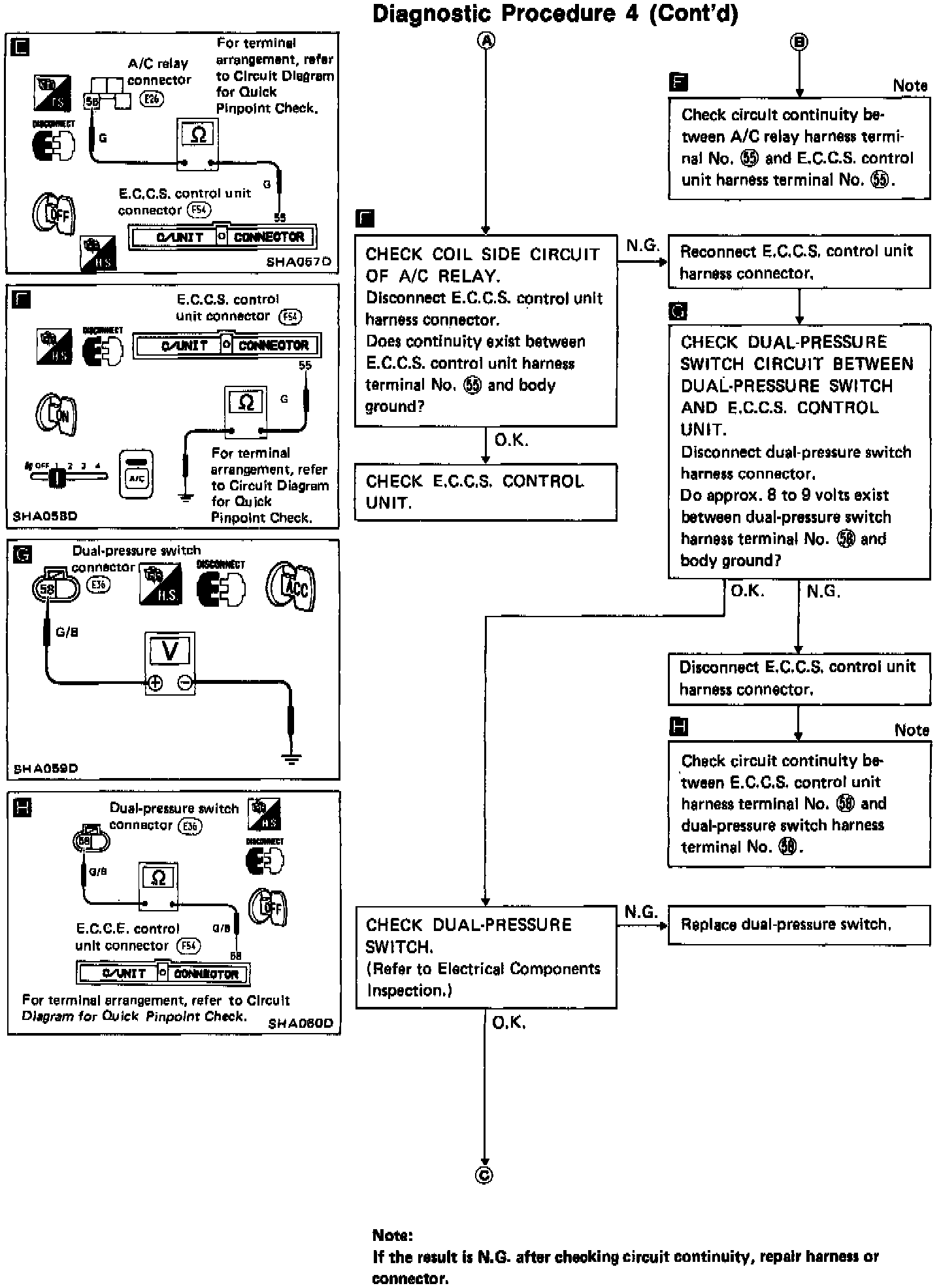

Diagnostic Procedure 4 Cont.:

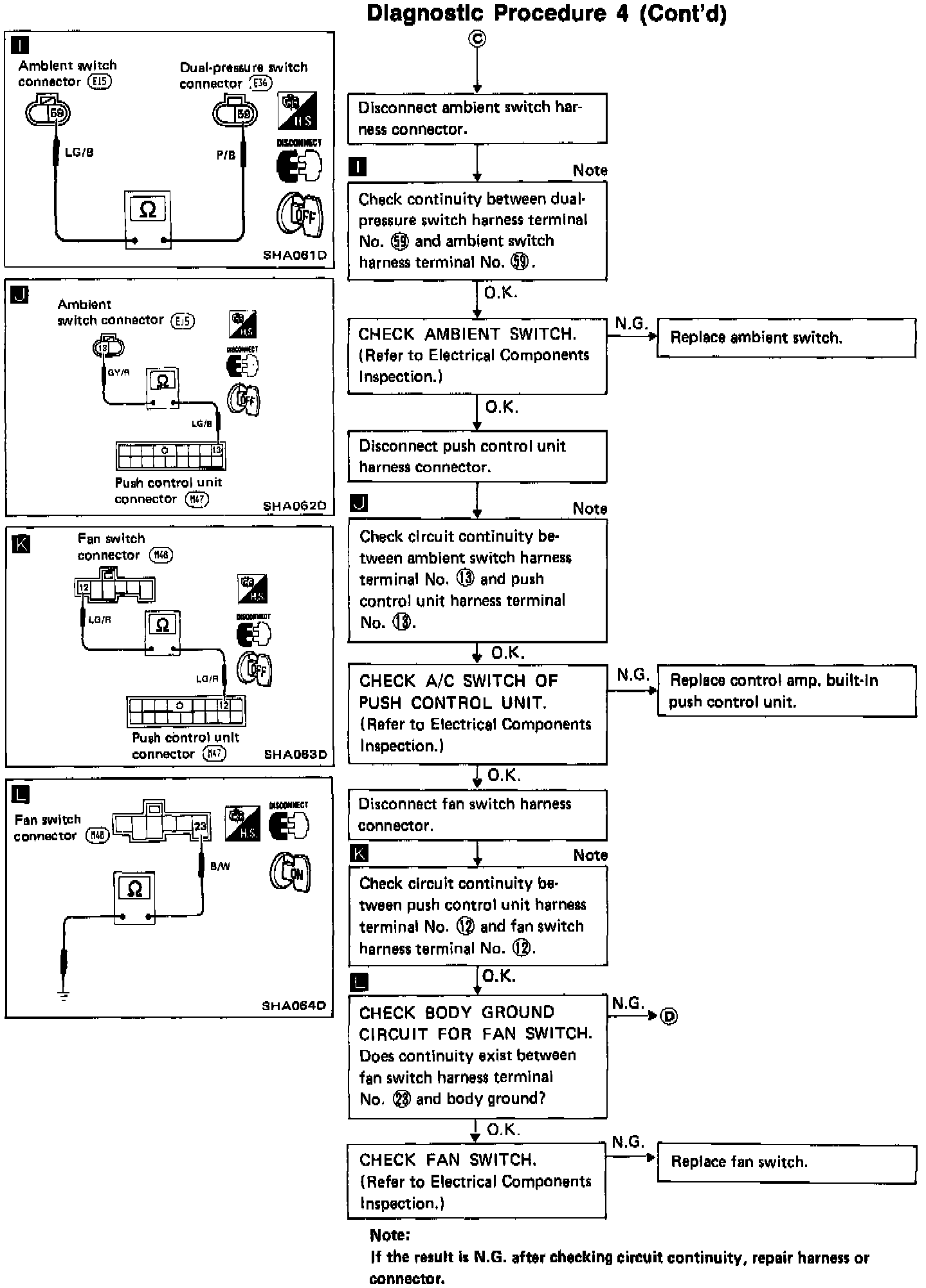

Diagnostic Procedure 4 Cont.:

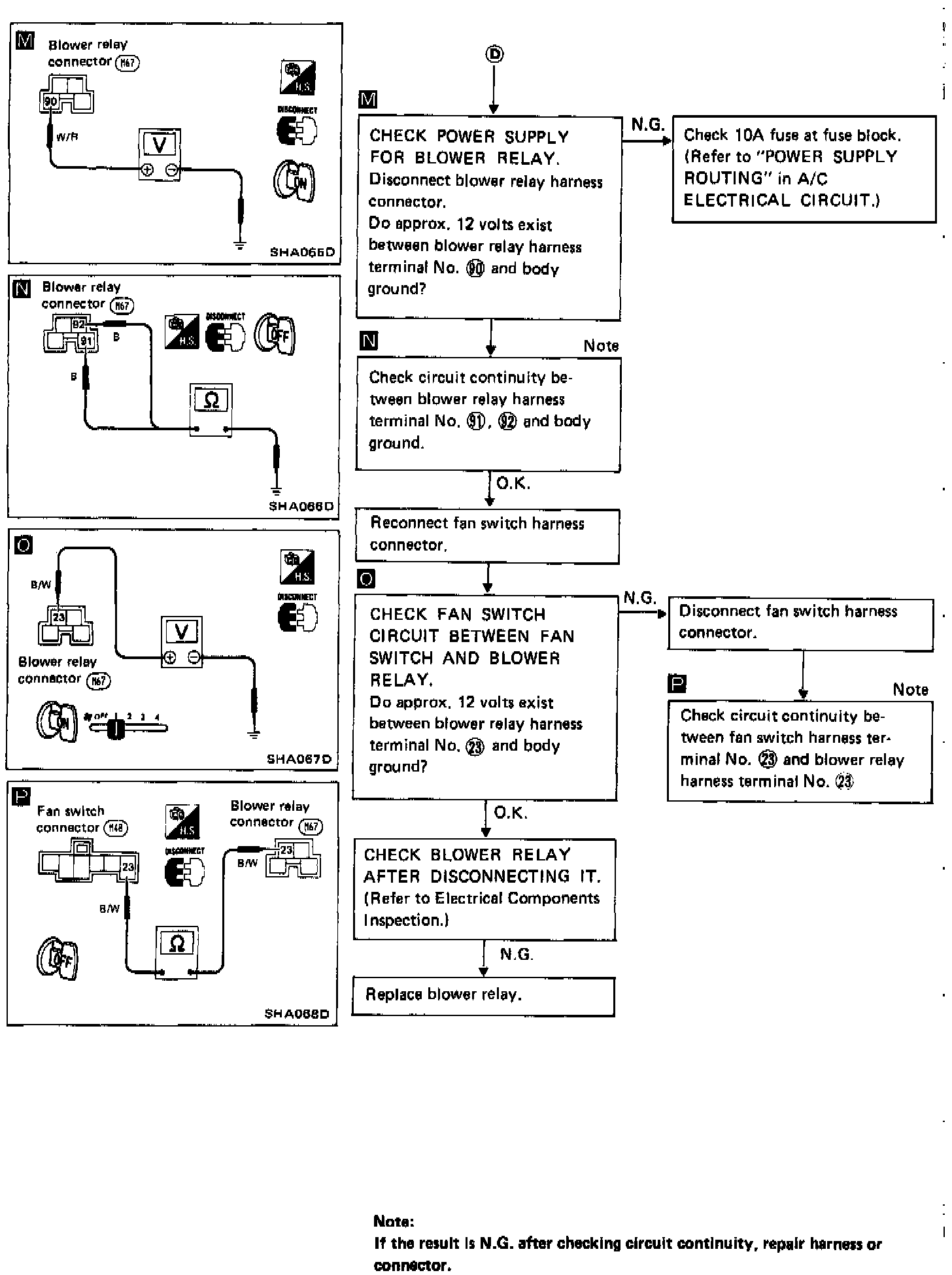

Diagnostic Procedure 4 Cont.:
