Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Procedures
>>
Manual A/C
>>
Diagnostic Procedure 5
Diagnostic Procedure 5

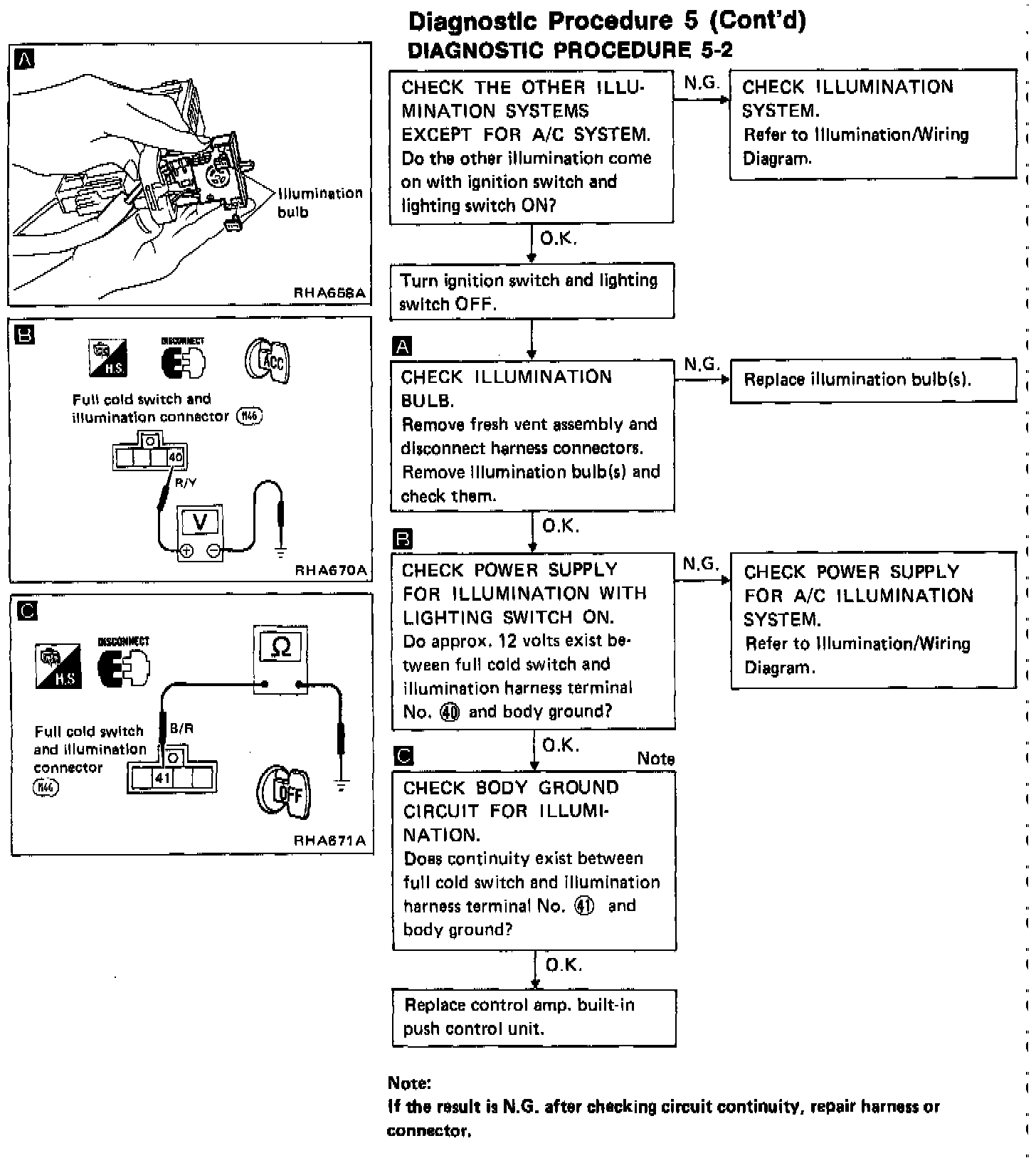

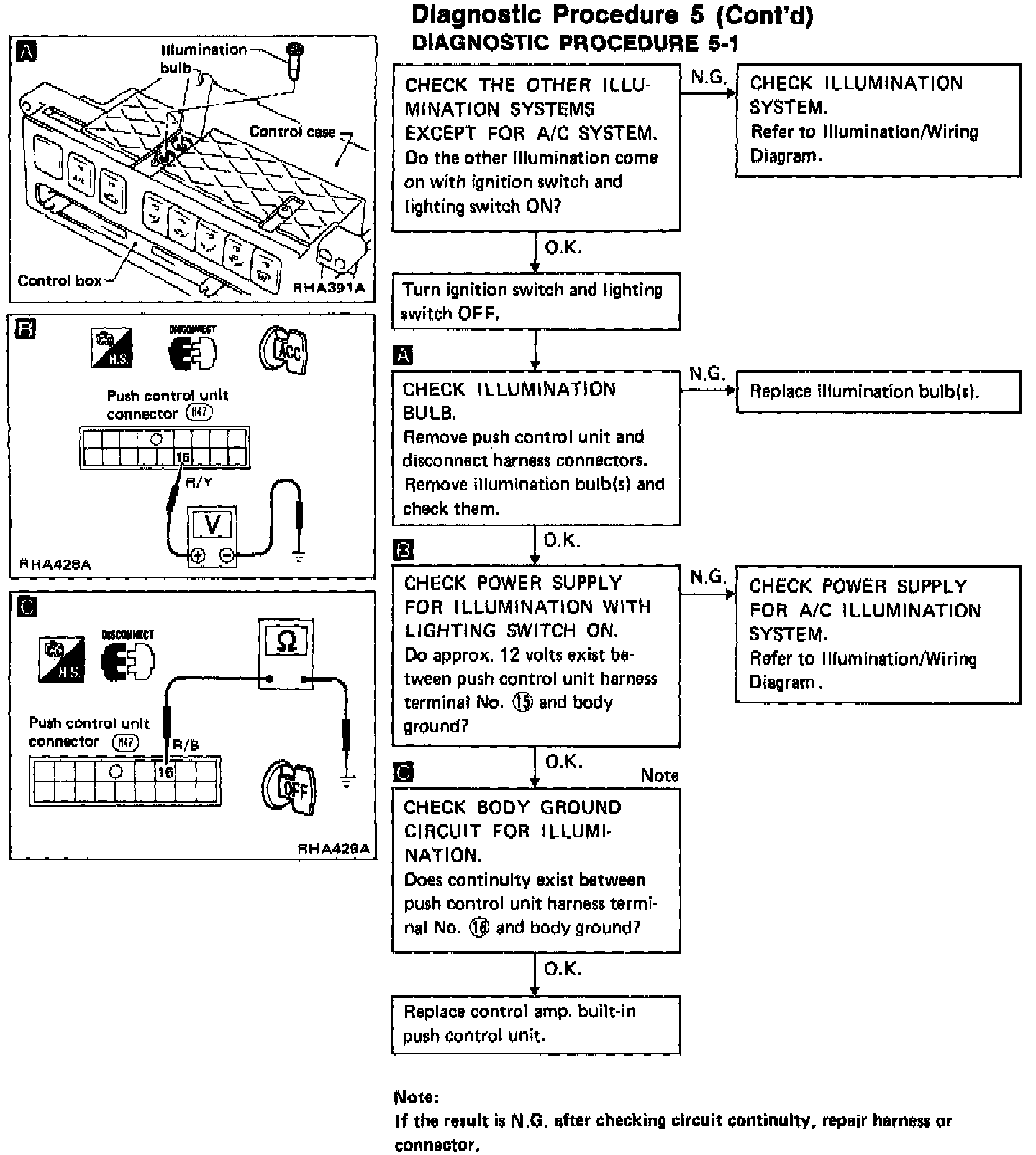

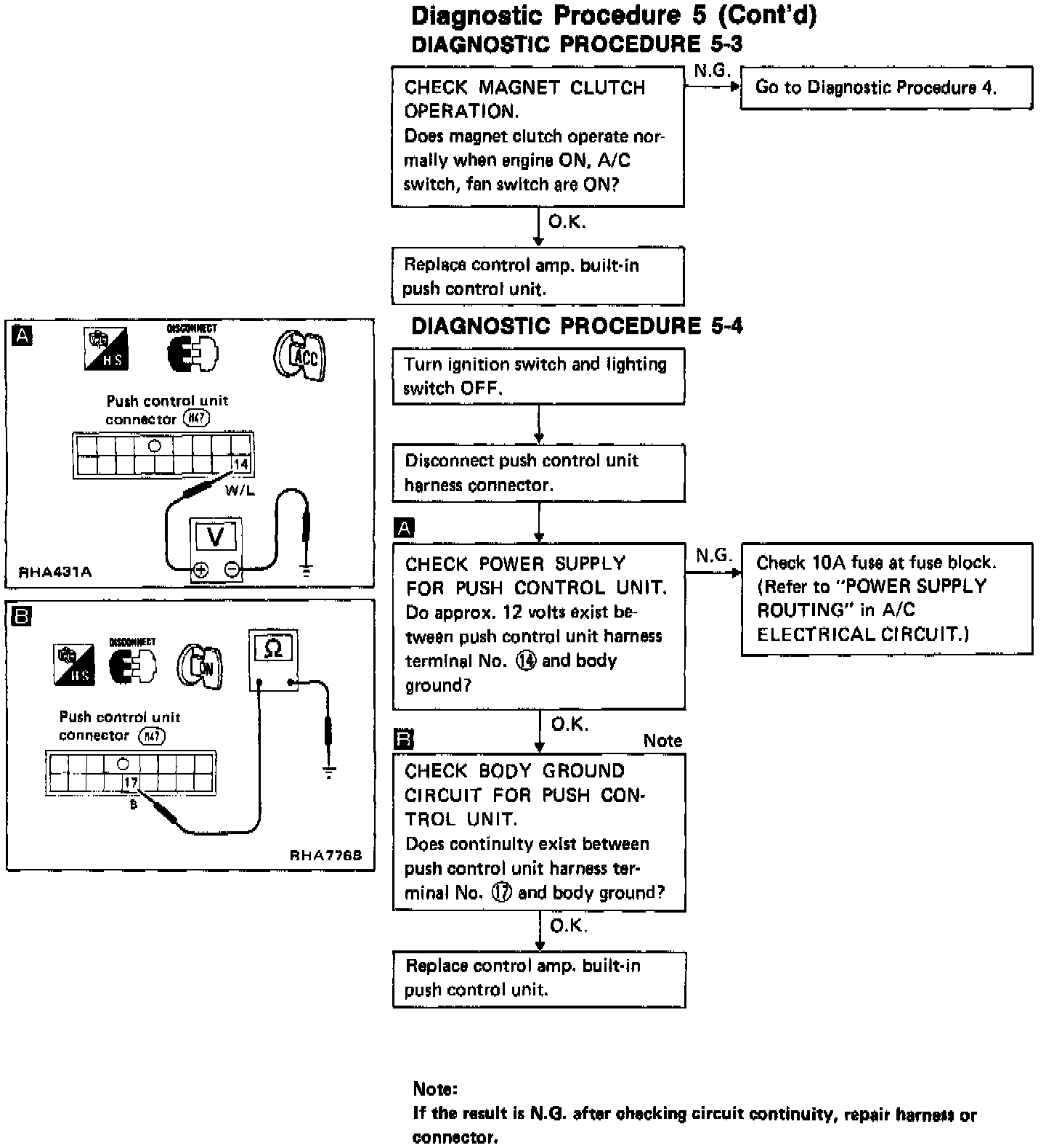

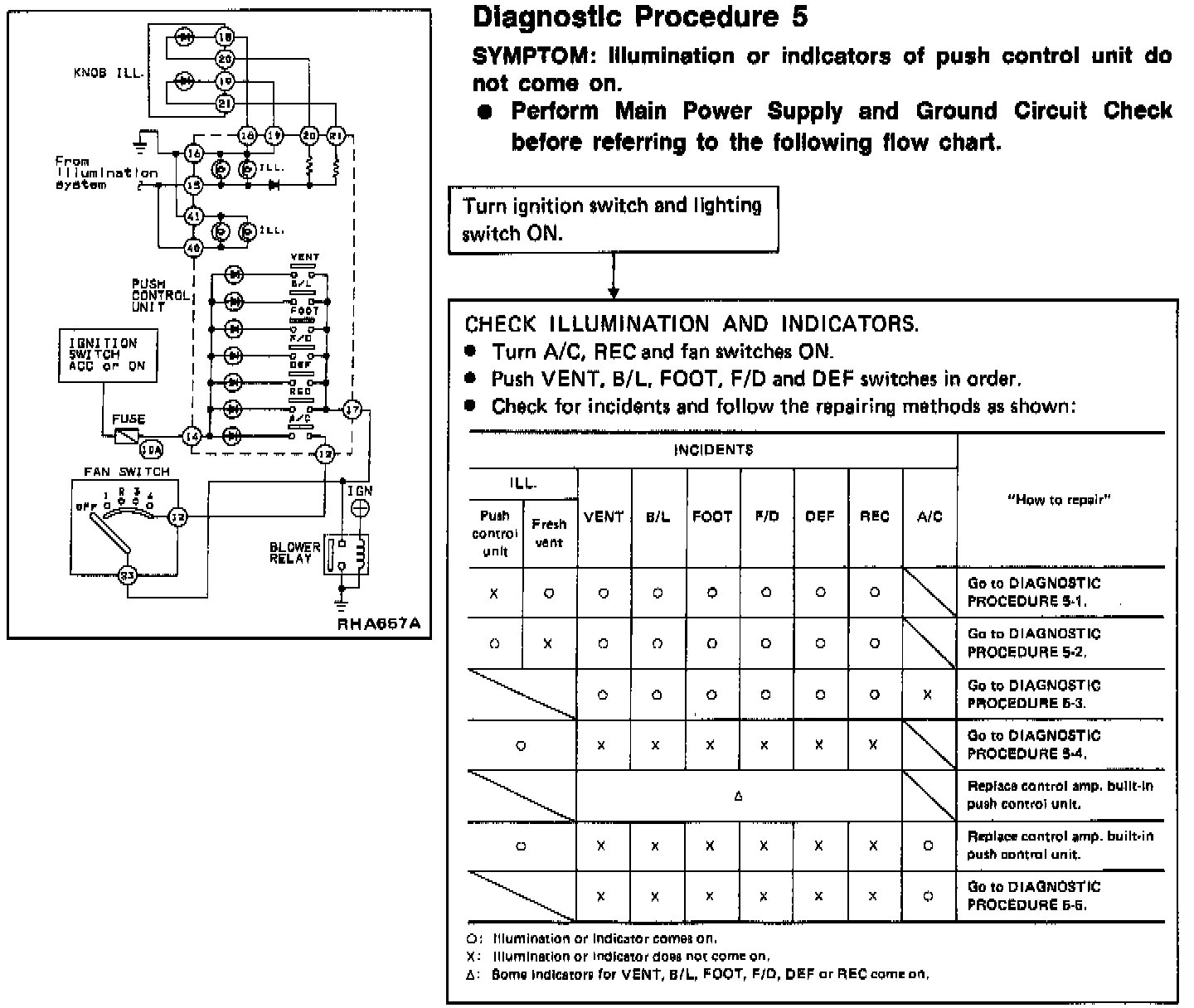

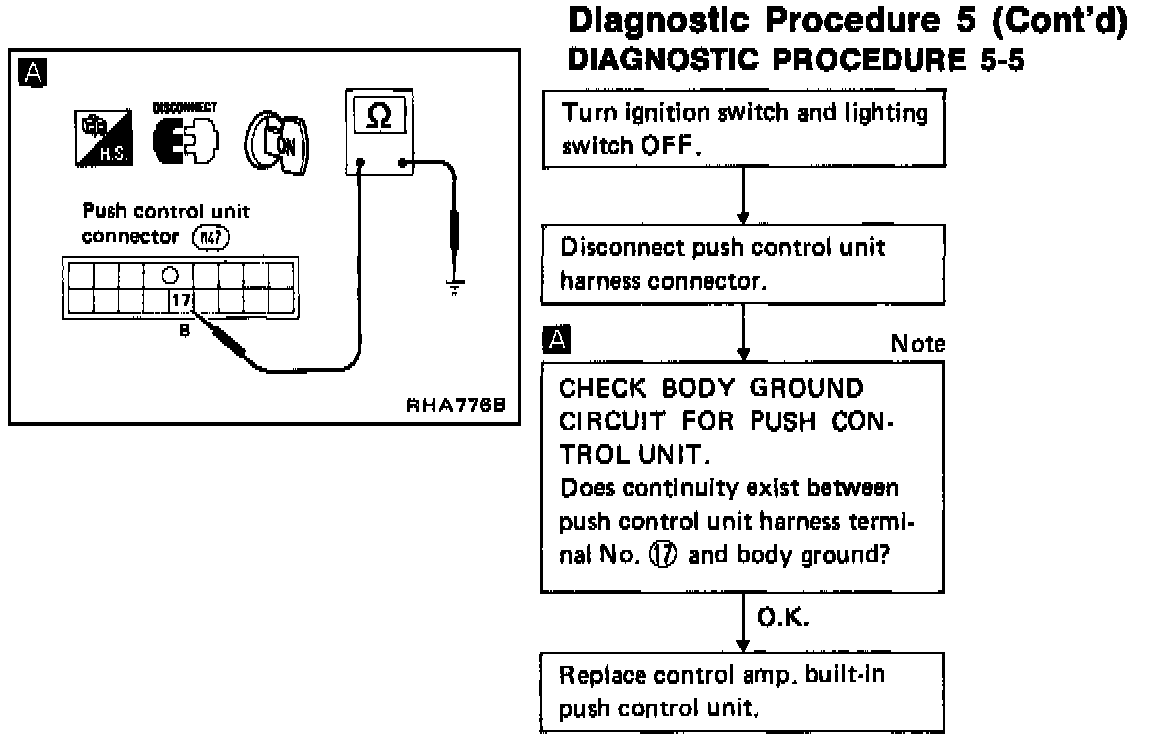

Diagnostic Procedure 5:
Diagnostic Procedure 5 Cont.:
Diagnostic Procedure 5 Cont.:
Diagnostic Procedure 5 Cont.:
Diagnostic Procedure 5 Cont.:
