Diesel Data
: Automotive Repair
Home
>>
Nissan-Datsun
>>
1994
>>
Maxima V6-2960cc 3.0L DOHC (VE30DE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Manual A/C
>>
Performance Charts
>>

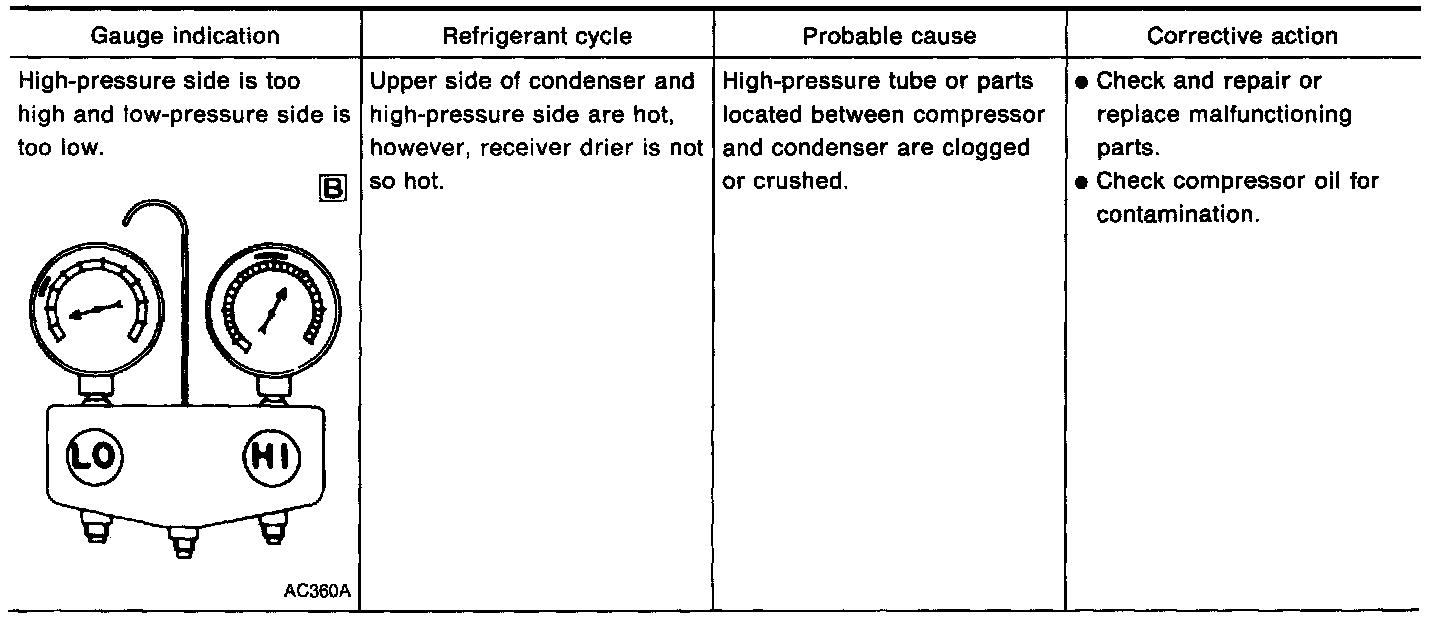

Chart B - High Pressure Too High and Low Pressure Too Low
Chart B - High Pressure Too High and Low Pressure Too Low
Performance Test Diagnosis:
